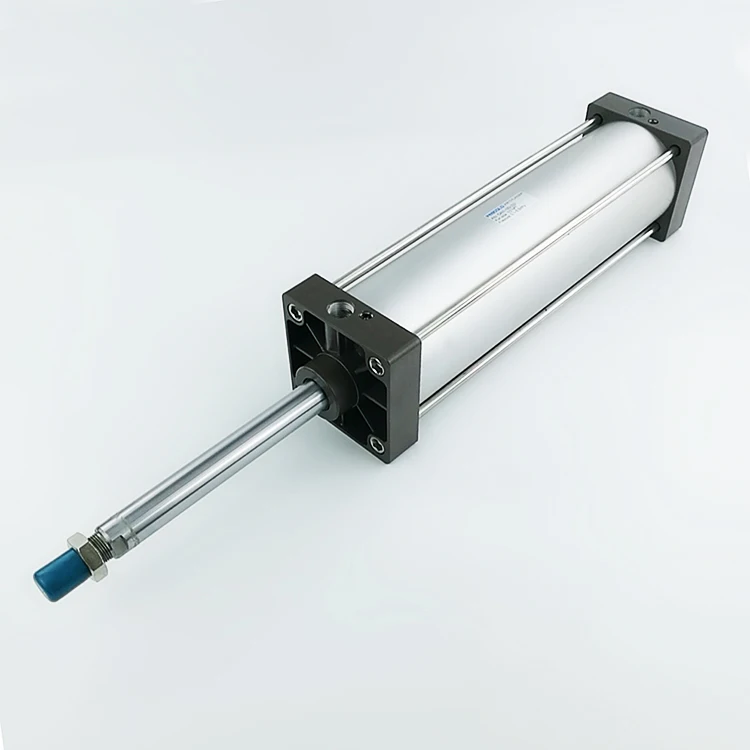

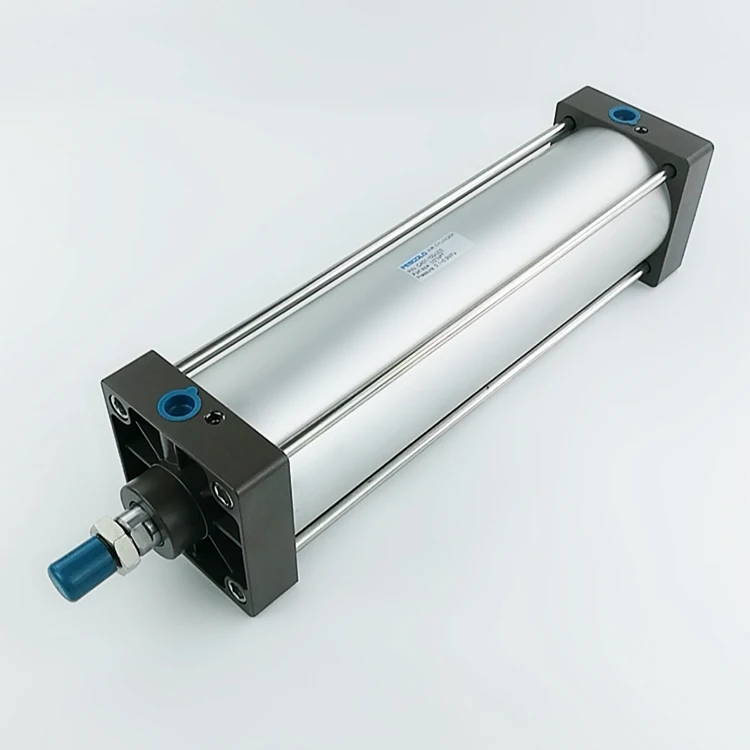

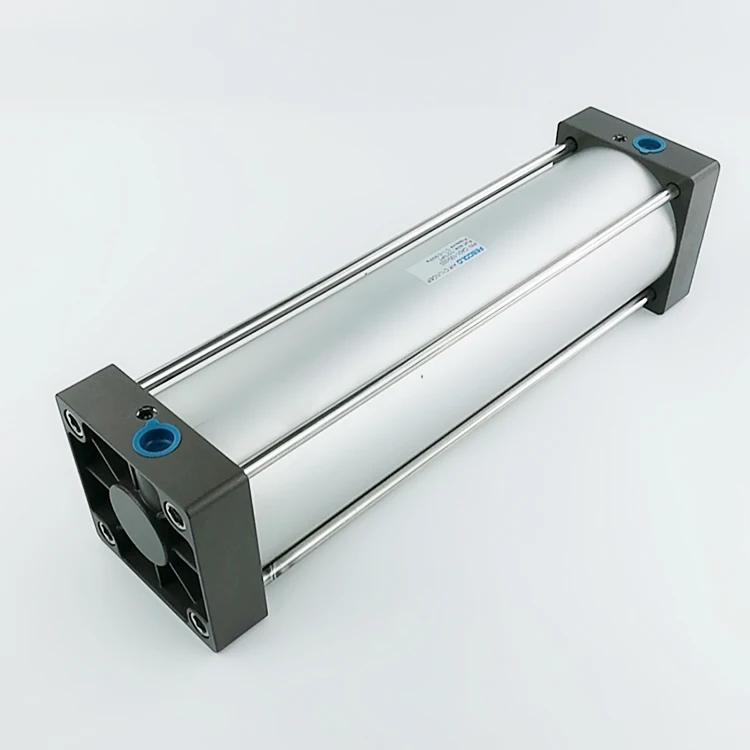

China suppliers SC series Airtac standard pneumatic double acting air cylinder
-
Supplier: Ningbo Fescolo Pneumatic Manufacturer -
Region: Zhejiang, China -
Contact: Mr Jeffrey Bu -
Price: $2.00 /piece -
Min. Order: 1 piece
| Product name: | SC series Airtac standard pneumatic double acting air cylinder; | Certificate: | ISO9001:2000, CE; |
| Power: | Pneumatic; | Working Temperature: | -5℃~70℃; |
| Body Material: | Aluminum; | Shaft Diameter: | 250mm; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,Paypal; | Cushion style: | Adjustable air cushion; |
| Packaging Detail: | For pneumatic air cylinder, our normal package is: 1pcs/Plastic bag ,1plastic bag/box ,8~20 boxes/carton, and 10~20 cartons/pallet. In addition, we can also make packages according the customers' request, including the name plate , the carton pattern, as well as the pallet size , weight of every box,carton.; | Standard or Nonstandard: | Standard; |
| Place of Origin: | Zhejiang China; | Supply Ability: | 10000 Piece/Pieces per Month Lead time for pneumatic cylinder is related to quantity and type; |
| Speed range: | 50~800mm/s; | Brand Name: | FESCOLO pneumatic air cylinder; |
| Maximum Stroke: | 2000mm; | Standard: | Airtac; |
| Medium: | Compressed air; | Working Pressure: | 0.1-0.9MPa; |
| Type: | Double acting; | Structure: | Piston Cylinder; |
| Port: | Ningbo, Shanghai, Guangzhou, Qingdao etc.; | Model Number: | SC pneumatic air cylinder; |
| Seals: | NBR; |
♦ Product name:
China suppliers SC series Airtac standard pneumatic double acting air cylinder
1. FACTORY DIRECT PRICE.
2. NICE QUALITY.
3. QUICK SHIPPING WITHIN 7DAYS.
4. SMALL ORDER WELCOME.
5. WELCOME OEM AND ODM.
6. SUPPORT 7DAYS REFUND MONEY.
7. PAYMENT BY PAYPAL.
♦ Ordering code:
| SC | - | 63 | x | 200 | - | S |
| ↑ | ↑ | ↑ | ↑ | |||
| SC series Air cylinder | Bore size | Stroke | S: With magnet | |||
♦ Characteristic:
1) This series of cylinder conforms to: Airtac standard
2) There is an adjustable buffers at the terminals of the cylinder except for mounted cushion.
3) We can offer different kinds of mounting style according to standard, like Foot mounting,
Front flange mounting, Rear-flange mounting,and so on.
4) Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT etc.
5) Needn't lubricate on piston rod by oil
♦ Specification:
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Action | Double action | ||||||||
| Applicable medium | Air | ||||||||
| Pressure range | 0.1~0.9 MPa | ||||||||
| Proof pressure | 1.35 MPa | ||||||||
| Temperature range | -5°C~70°C | ||||||||
| Speed range | 30~800 mm/s | ||||||||
| Cushion style | Adjustable cushion | ||||||||
| Cushion stroke | 24mm | 32mm | |||||||
| Port size | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | ||||
♦ Pneumatic cylinder Stroke:
| Bore(mm) | Standard stroke | Max. stroke | Permi. stroke |
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 1000 | 2000 |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 1200 | 2000 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |

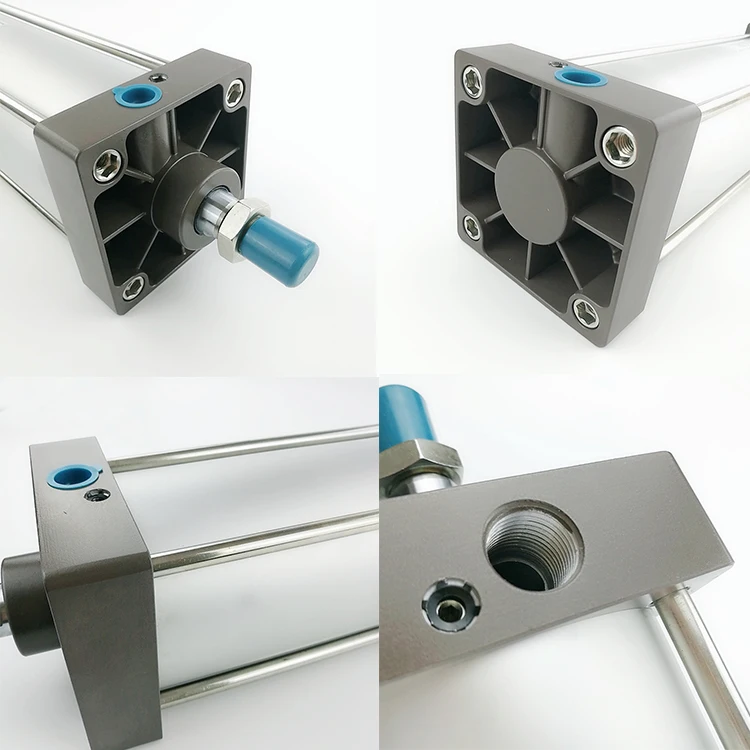

♦ Product details:
Q1: Can you provide a sample before a big order?
Answer: Yes, we can provide a sample.
Q2: What 's the delivery date?
Answer: It depends on the quantity you order. Normally, it will take 10~15working days for our regular products.
Q3:Can you make NPT thread for the port size?
Answer: Yes, we can make NPT thread. But here is MOQ requirement for the quantity.
Q4:Are you able to make Non-standard or customized air cylinders?
Answer: One of our biggest advantage is for non-standard and customized products.
Q5:Which port can you delivery:
Answer: Ningbo, Shanghai, Guangzhou, Qingdao.
Q6:Which payment terms can you accept?
Answer: Paypal,T/T,L/C
Q7:Are you a real manufacturer or a trade company?
Answer: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q8:Which city does your company locate in?
Answer: We are in Ningbo city,Zhejiang provience. About 240km away from Shanghai.
-
