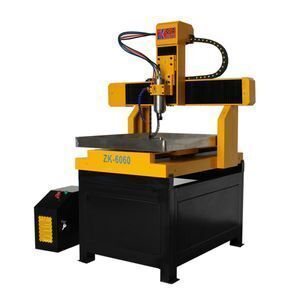

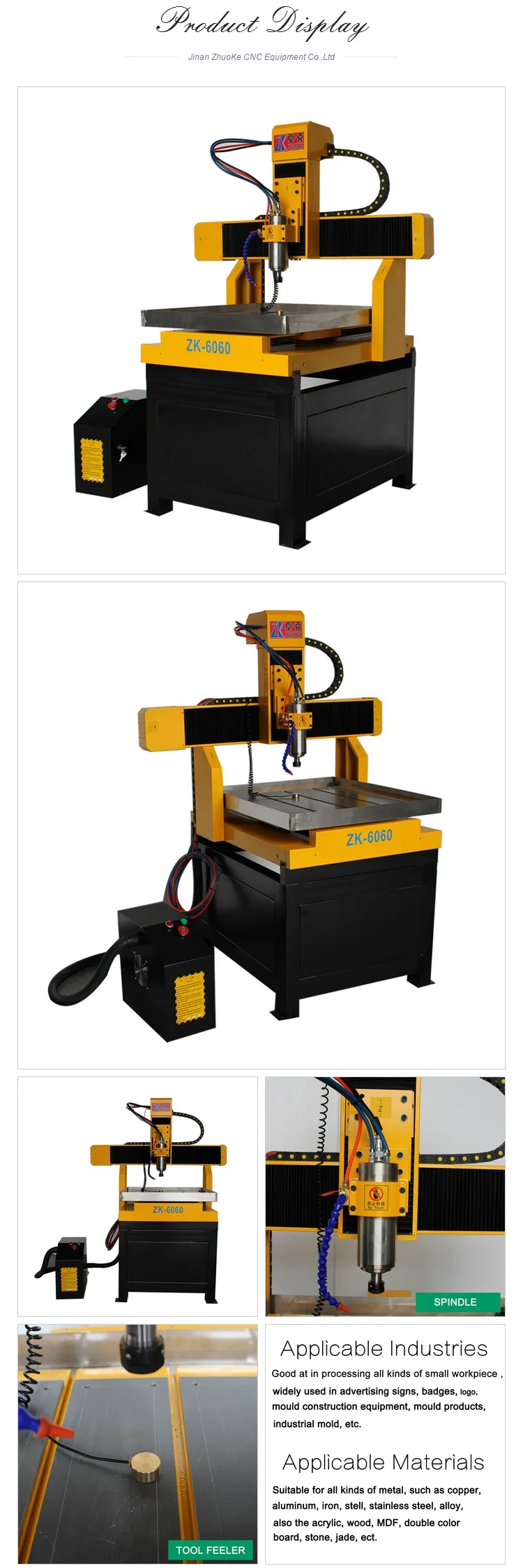

China Mini Size Wood and Metal Cutting and Engraving Machine ZK-6060

Supplier: Jinan Zhuoke CNC Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms. Ashley Yang
Price: $1550.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	China Mini Size Wood and Metal Cutting and Engraving Machine ZK-6060;	transmission:	XYZ ballscrew;
Weight:	250KG;	Brand Name:	ZHUOKE;
Dimensions:	600600200mm;	spindle:	2.2 W water cooling spindle;
Application:	metal engraving;	Place of Origin:	Shandong China (Mainland);
Certification:	CE;	guide rail:	XYZ linear square guide rail;
Selling Units:	Single item;	Delivery Detail:	0 days after payment;
Working table:	castin iron T-slot working table;	Milling Cutter Diameter:	3.175,4,6;
Feeding Height:	200mm;	Main Axle Rotational Speed:	0-24000rpm;
Warranty:	1 year;	software:	Mach3 control system;
Single package size:	125X120X175 cm;	Rated Power:	800W;
Design software:	Artcam;	Collet and nuts:	ER20, support 3.175,4,6,8,10,12.7mm;
Product name:	China Good Price 3.2KW Small Milling Metal CNC Router Machine ZK-6060;	Package Type:	Plywood case for exporting for China Mini Size Wood and Metal Cutting and Engraving Machine ZK-6060;
Single gross weight:	250 KG;	After-sales Service Provided:	Online support;
Condition:	New;	Engraving Speed:	0-6000mm/min;
material:	casting iron gantry, casting iron lathe bed;

Items	configuration
Certificate	CE
XY-axis working area	600*600mm
Material	Cast iron machine bed, cast iron gantry
Moving way	working table moving
Working table	iron T-slot working table
Guide way	XYZ-axis linear square guide rail
Driving mode	XYZ-axis ball screw(XZ:1605,Y:2510)
Z-axis working area	200mm
Driving method	Leadshine hybrid servo system
Water cooling system	Water pump for spindle
Spindle	2.2 KW water cooling
Control system	Mach3 control system
Design software when delivery	Artcam
Voltage	AC 220V,50/60Hz, single phase
Tools	11pcs for metal

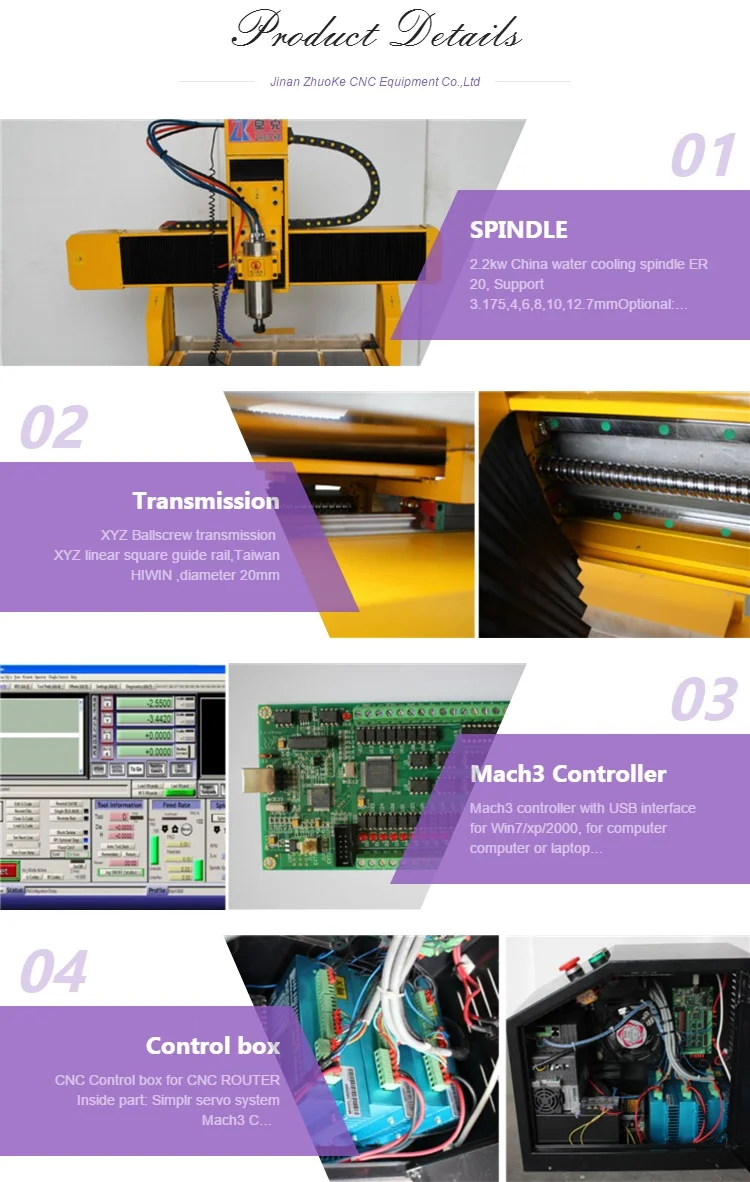

FEATURES:

1.Cast iron machine bed, by vibration aging treatment, ensuring the machine not easy to deformation.
2.Imported ball screw transmission for X Y Z-axis, good stability, high precision and long life time.
3.Linear square guide rail , Taiwan HIWIN,diameter 20mm, longer life,more durable
4.Stainless steel water slot cooling system, cooling for the tools and materials, necessary for the metal/stone/glass processing.
5. Mach3 control system, suitable for desktop computer or laptop with USB interface , Win7/xp/2000
6.2.2kw water cooling spindle, cooling mode is water pump, we will add you one water pump for free. With ER20, support 3.175mm,4mm,6mm,8mm,10mm,12.7mm.
optional:1.5KW /3.2KW smaller power spindle.
7.Can realize the multi-layered 3D processing, fast speed, smooth three-dimensional processing, engraving and cutting.
8.Emergency stop button, ensuring the operation safe.
9.Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software.
10.working table moving back and forward, higher accuracy than gantry moving style.
11. Leadshine Hybrid servo system , higher quality than step motor.

Q1: How can I get the best machine for me?

You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?

We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or skype.

Q3: If the machine has problem in my place, how could I do?

We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4: This model is not suitable for me, do you have more models available?

Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
