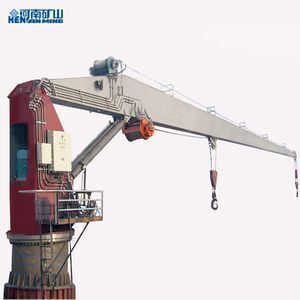

Knuckle Boom 5 Ton Marine Lift Crane

Supplier: Henan Mine Crane Co., Ltd.
Region: Henan, China
Contact: Mr Henan Mine Crane
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max. Lifting Height:	120M;	Supply Ability:	300 Set/Sets per Year;
Feature:	Other;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	1 Year;	Color:	Customized;
Place of Origin:	Henan China;	Product type:	Mini Tower Crane;
Port:	Tianjin/Qingdo;	Brand Name:	HENAN MINE;
Condition:	New;	Rated Lifting Moment:	Loading Capacity;
Main Electrical Part:	Siemens or Schneider;	Application:	Ship, yacht, boat, truck, etc.;
Max. Lifting Load:	200T;	Model:	GHE-TC-060;
Certification:	CE ISO GOST;	Power:	3-Phase AC 380V 50Hz;
Type:	Telescopic Boom;	Feature:	Other;
Packaging Detail:	Knuckle Boom 5 Ton Marine Lift Crane: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for container ship, usually by container. 4. Big size, usually by bulk ship or by container after truncation. 5. Transport ways are based on reducing cost & keep safety.;	Span:	12~35m;
Slewing Angle(degree):	360/270;	Payment Terms:	L/C,T/T,Western Union;
Rated Loading Capacity:	200T;

Product Description

The Marine series is a crane that is fitted with a special base for an easy and fixed installation on any kind of vessel, central controls and distributor disjoint from the structure.

There is a procedure that is included in a twocomponent epoxy base coat 40,50 micron thick. It also has two coats of enamel and finish with a 60/80/ micron layer of two component polyurethane. The unit has a base and secondary jack rods that has a tempered chemical nickel plating of 50 micron and chrome plating of 100 c. There is a double chrome plating on its extension jack rods and rotation cylinders.

Parameters

Type	Safety working load (N)	Max working Red (m)	Min working Red (m)	Hoisting Speed (m/min)	Slewing Speed (r/min)	Luffing Time (s)	Hoisting Height (m)	Slewing Angle	Trim/ Heel	Power (kW)
SQ1	10	6~12	1.3~2.6	15	1	60	30	360	2/5	7.5
SQ1.5	15	8~14	1.7~3	15	1	60	30	360	2/5	11
SQ2	20	5~15	1.1~3.2	15	1	60	30	360	2/5	15
SQ3	30	8~18	1.7~3.8	15	0.9	70	30	360	2/5	22
SQ5	50	12~20	2.5~4.2	15	0.75	80	30	360	2/5	37
SQ8	80	12~20	2.5~4.2	15	0.75	100	30	360	2/5	55
SQ10	100	12~20	2.5~4.2	15	0.75	110	30	360	2/5	75
SQ15	150	12~20	2.5~4.2	15	0.6	110	30	360	2/5	90
SQ20	200	16~25	3.2~5.3	15	0.6	120	35	270	2/5	75*2
SQ25	250	20~30	3.2~6.3	15	0.5	130	40	270	2/5	90*2
SQ30	300	30	3.2~6.3	15	0.4	140	40	270	2/5	90*2
SQ35	350	20~35	4.2~7.4	15	0.5	150	45	360	2/5	110*2
SQ40	400	20~35	4.2~7.4	15	0.5	150	45	360	2/5	140*2
SQ45	450	25~40	5.3~8.5	15	0.45	160	50	360	2/5	140*2
SQ50	500	25~40	5.3~8.5	15	0.45	170	50	360	2/5	165*2

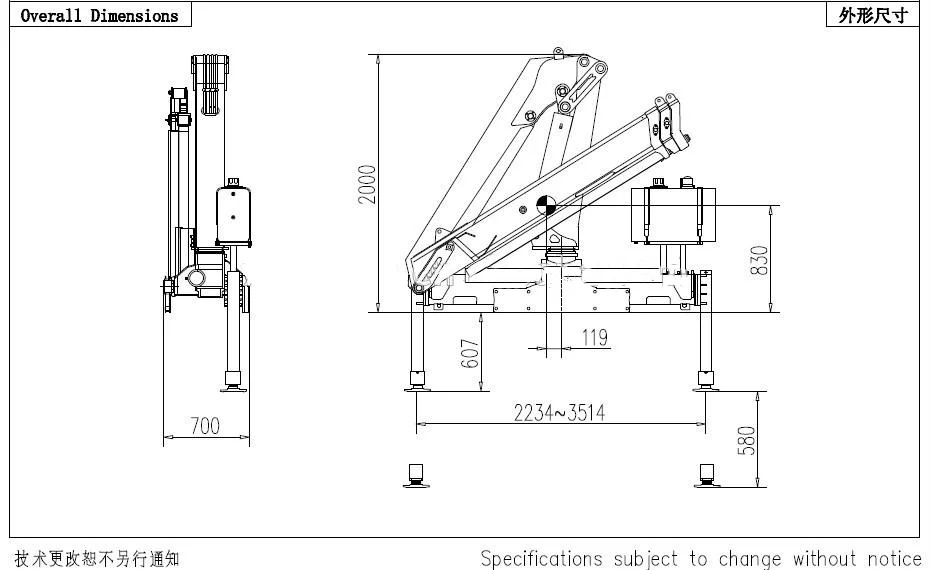

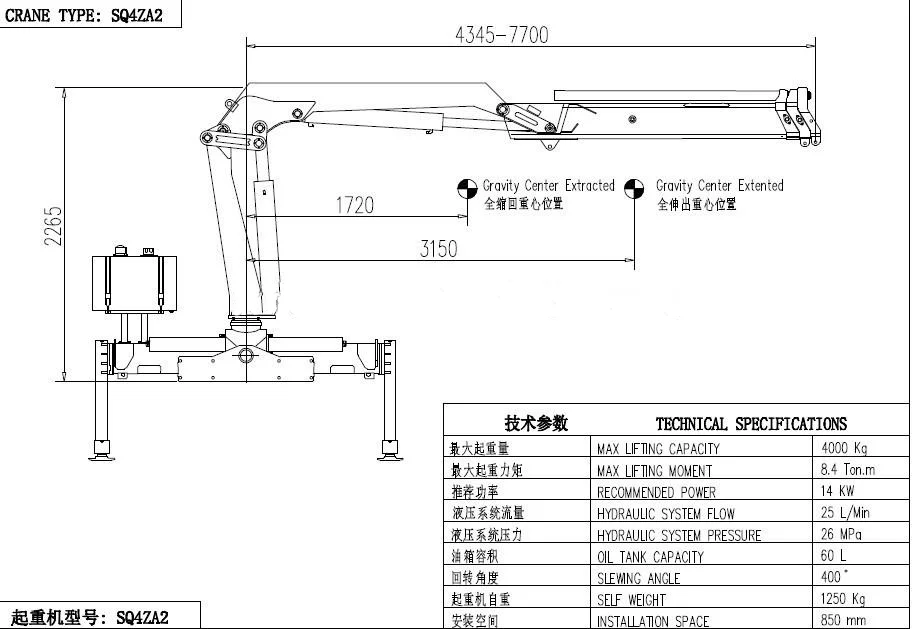

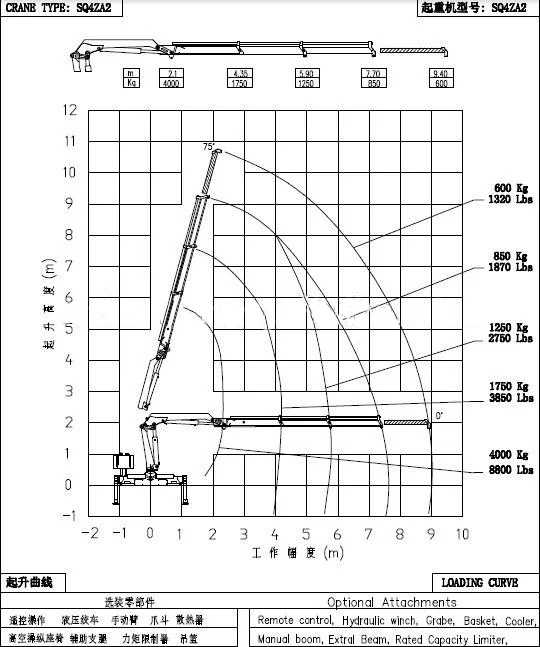

Sketch Drawing

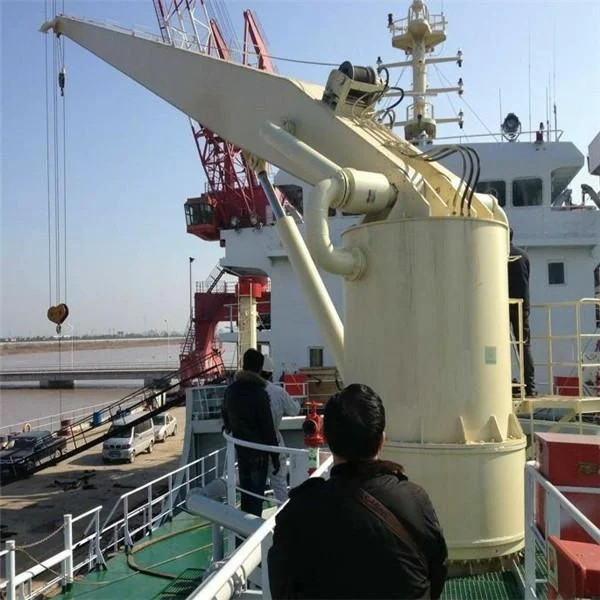

picture show

Related products

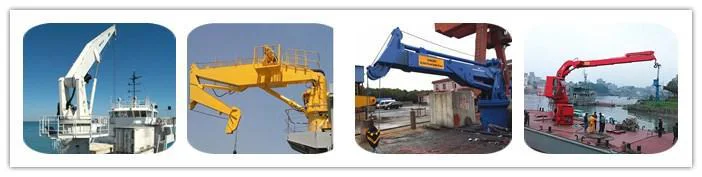

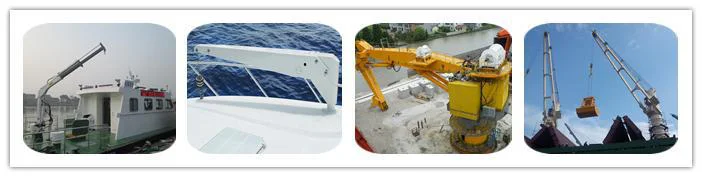

Small Crane Yacht Crane Port Crane Marine Crane

Stiff/Fixed Boom Crane Knuckle Boom crane Telescopic Boom Crane Semi-knuckle Boom Crane

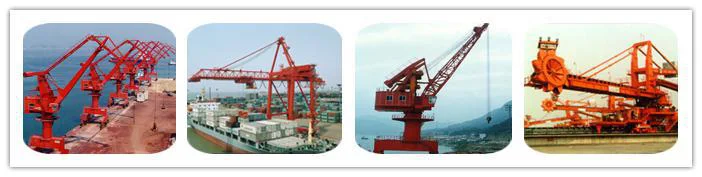

Four-link Type Portal Crane Container Ship Unloader Single Jib Portal Crane Stacker Reclaimer
