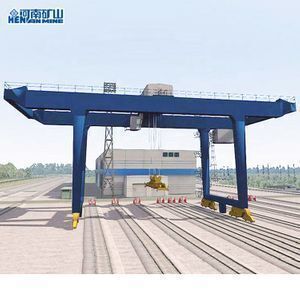

Port Automatic Electro RMG Rail Mounted Container Gantry Crane Price

Automatic Electro RMG Rail Mounted Gantry Crane Price

Advance features
1. Heavy working duty
2. Working for all-weather
3. Up to 30 containers/hour
4. Frequency inverter speed control
5. End stopping limit, Pre-Deceleration limit & Over range protection limit
6. Automatic control system and Unmanned operation
7. "Black Box" for checking crane health status

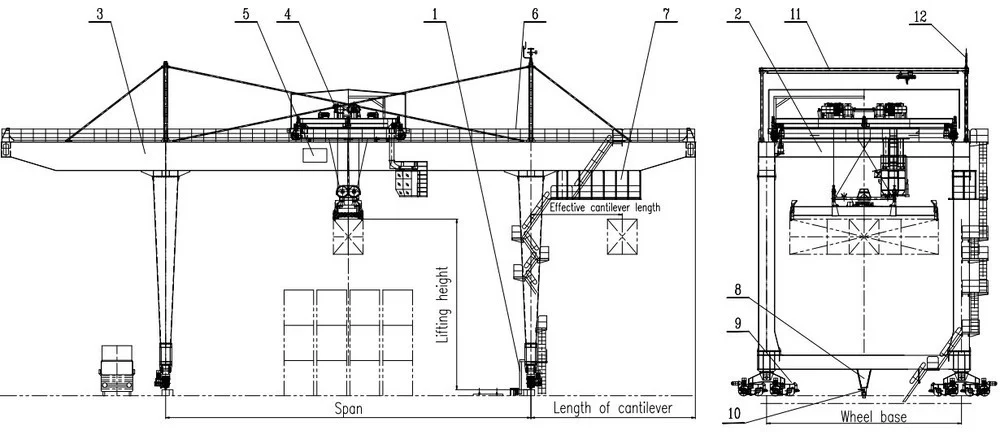

Mechanical feature

Double welding box girder, ISO standard Camber
Steel box legs
Material Fe37 or Fe52
Whole length CNC cutting for complete web plate, high deflection accuracy
High quality autometic welding and NDT inspection
Shot-blasting Sa2.5 for complete girder after welding, stress release
Epoxy zinc rich high quality paiting, 2x2 with 140μm
10.9 class High tension bolts mouting between girder and legs, life time safety connection
Vertical gear motor driving,more safety and smaller space(option)
High proection class IP44, F class, 40% ED
End carriage equipped with anti-friction bearings,cellular buffers,derailment protectors

Electrification and outfitting
Conductor power supply
Phase control guard opens the main contactor in case of phase failure
All hoist and crane movements are independent and can be run simultaneously.
Contactors meet crane applications, rated for severe vibration.
The control panels are finished to withstand corrosion, IP55(Other on request)
Heavy duty plug head
The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact.
The multi-wire type fixed cables with plastic insulation are intended for crane usage.
Cables are coded either with numbers, colours or tags for easy identification.
The flate cables used for festoons are PVC insulated flexible flat cables rated for 450/750V, specially designed for cranes, hoists.
Festoon cables are suspended on cable saddles, fixed to cable trolleys, running in a galvanised C-track, which is connected to the main girder with bolted or welded support brackets.
Lifting units
First class lifting units, maintenance free.

Safety protection
Gearmotor locker rope to protect drop
Rain cover for outside hoist, driving units, electrical cubicle
Wind limitor:Wind detector device has been installed for all outdoor gantry cranes
Rail rocker
Rail sweeper
Warning indicator: flashing lights and warning sound
Wireless infra-detector for anti-collusion

Customize your parameters!

Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
