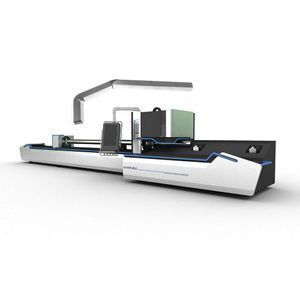

500w cnc or semi automatic metal stainless steel iron tube & pipe fiber laser cutting machine
-
Supplier: Foshan Longxin Laser Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Sophia Zeng -
Price: $34358.00 /set -
Min. Order: 1 set
| Control Software: | professional; | Payment Terms: | L/C,T/T; |
| Application: | Laser Cutting; | Name: | tube & pipe fiber laser cutting machine; |
| Cutting material: | metal pipe ,stainless steel pipe ,Carbon steel pipe,iron pipe; | Applicable Material: | Metal; |
| Warranty: | 1 Year; | Tailings: | 40mm; |
| Brand Name: | longxin; | Guiderail Brand: | PMI; |
| Key Selling Points: | High-accuracy; | CNC or Not: | Yes; |
| Place of Origin: | guangdong; | Graphic Format Supported: | AI,PLT,DXF,BMP,DST,DWG,LAS,DXP; |
| After-sales Service Provided: | Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Cutting Area: | diameter 4-200mm; |
| Certification: | CE,SGS; | Supply Ability: | 20 Set/Sets per Month; |
| Cutting Speed: | max speed 0.8 second /branch; | Cooling Mode: | Water Cooling; |
| Color: | blue; | Control system: | cnc control /Semi auto; |
| Port: | foshan; | Power: | 500-6000w; |
| Laser Type: | Fiber Laser; | Control System Brand: | Cypcut; |
| Servo Motor Brand: | DELTA; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Farms,metal pipe processing; |
| Cutting Thickness: | 6 mm; | Condition: | New; |
| Laser Head Brand: | Empower; | Laser Source Brand: | MAX; |
| Warranty: | 13 Months; | Packaging Detail: | A. The protective film package, wooden package. B. Can be packaged according to customer requirements 500w cnc or semi automatic metal stainless steel iron tube & pipe fiber laser cutting machine; |
| accuracy: | ± 0.1mm; |
500w metal stainless steel iron tube & pipe fiber laser cutting machine

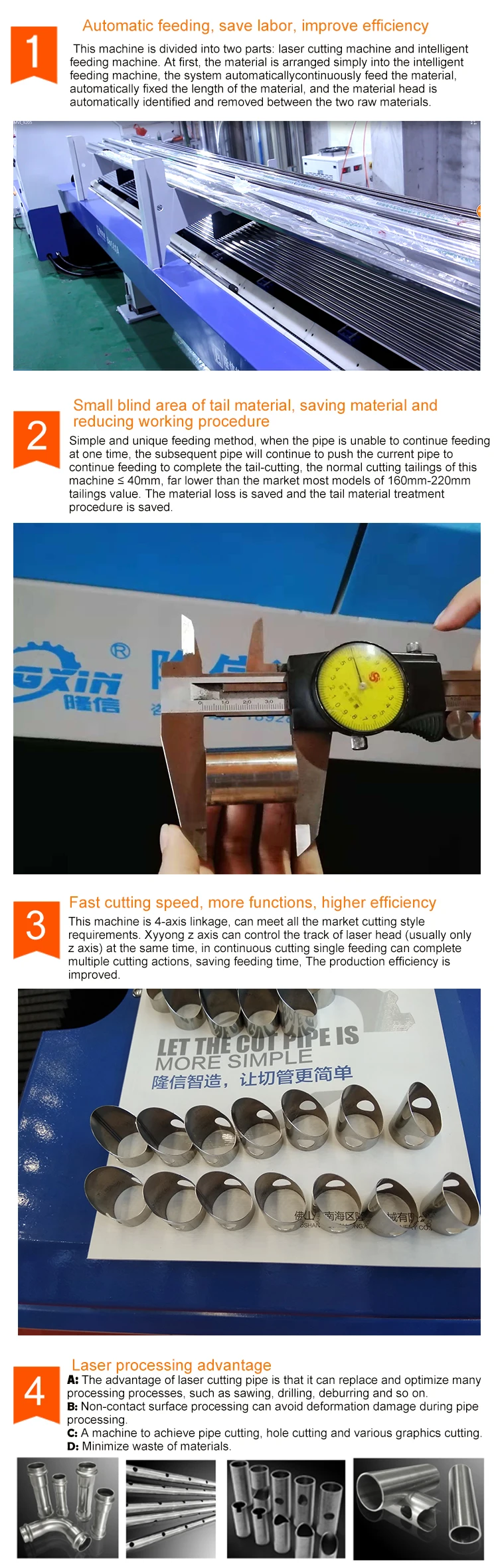

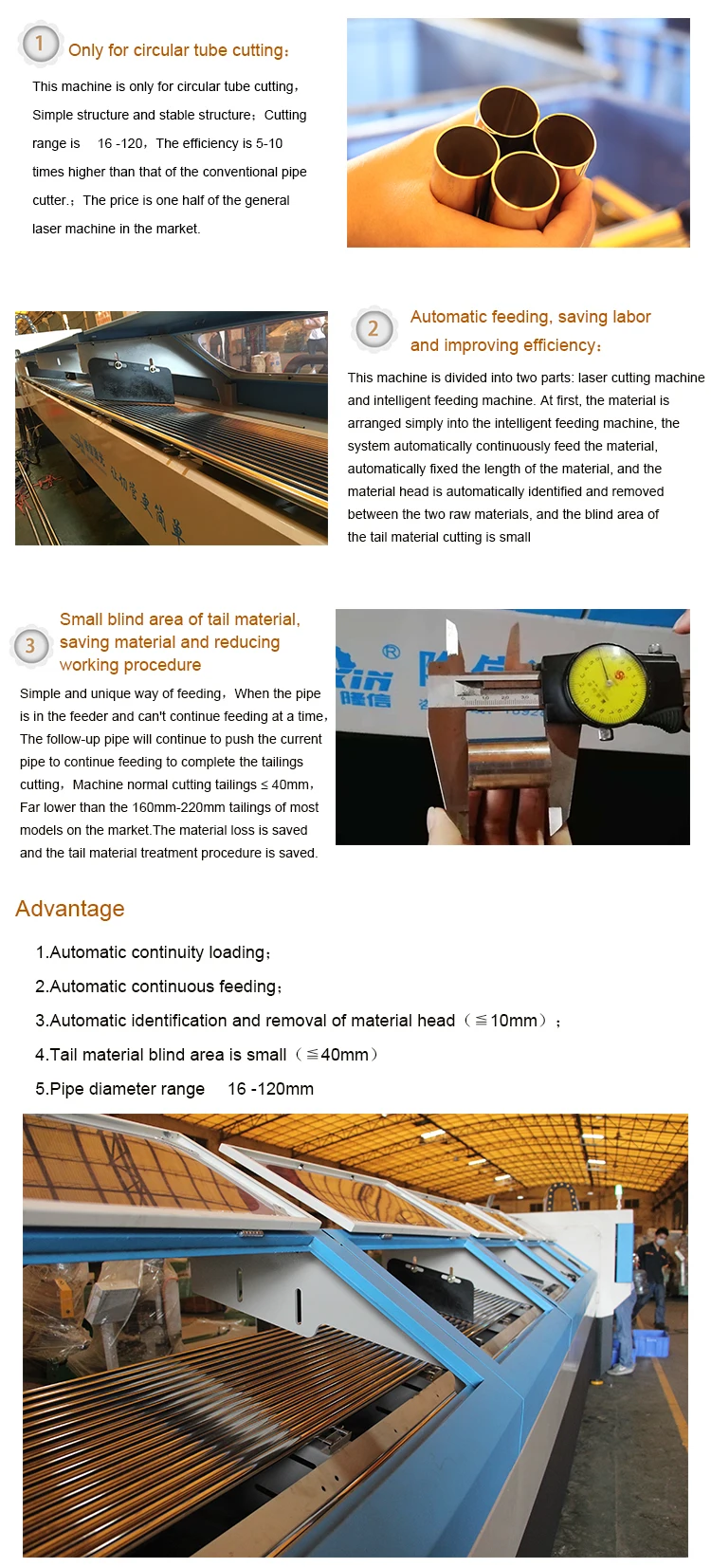

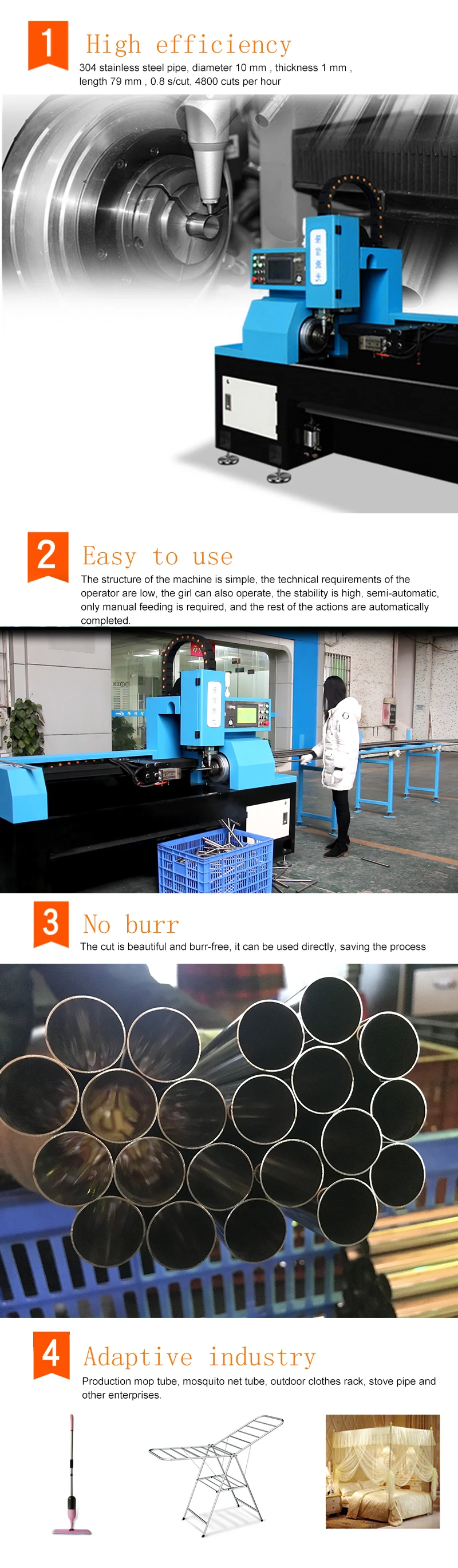

Product feature

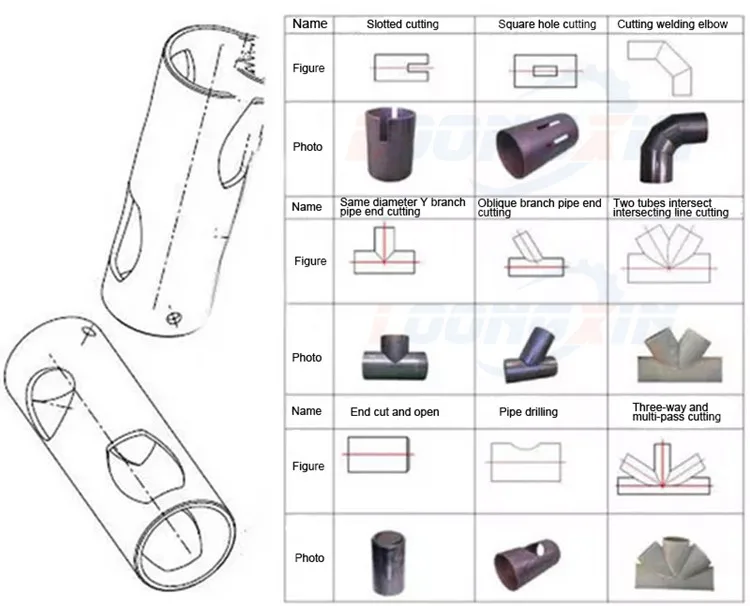

1. Multifunctional cutting
Freely design and enable immediately cutting of complex graphics and words , help you to trigger more new tube design inspiration and quickly complete new product development, thus to minimize development costs.
2. Good accessibility
The humanized structure design makes the machine accessible, making manual feeding easy.
3. Reduce processing steps
Allows you to save complex multi-step machining (sawing-punching-grooving-grinding) while economize intermediate logistics and storage costs. A single workpiece price is more competitive than traditional machining.

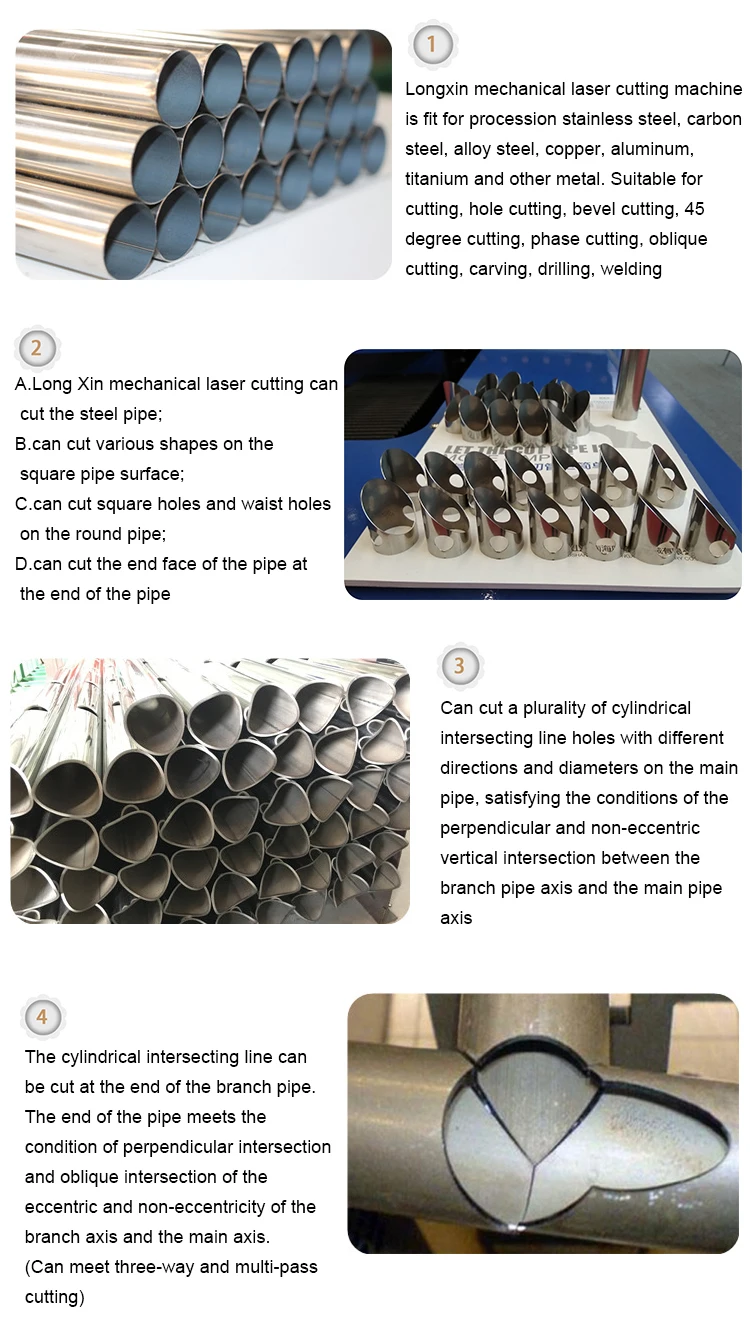

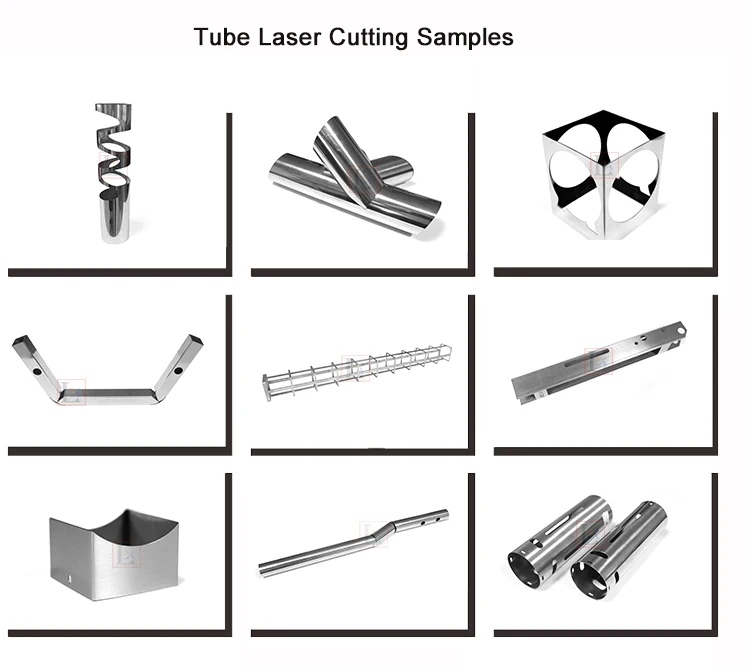

Sample show
Click here for more details

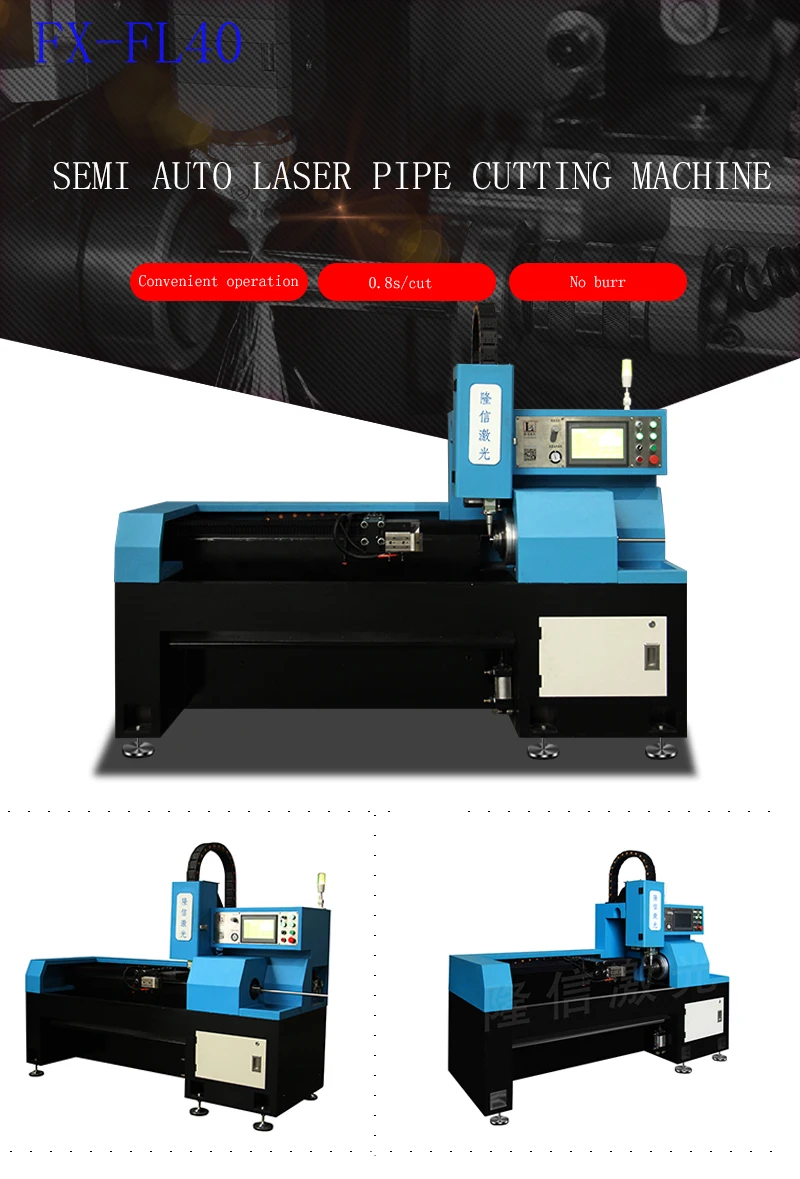

Parameter
| project | parameter |
| Pipe processing range | Round tube Φ4-Φ38mm |
| Cutting material thickness | 0.17-4mm |
| Cutting speed | ≤0.8s/branch (depending on material thickness) |
| Slit width | ≤0.1mm |
| Feed length | ≤1200mm |
| W axis adjustment range | 3600 |
| Machine tool repeat positioning accuracy | ±0.1mm/1000mm |
| Machine positioning accuracy | ±0.1mm |
| electricity demand | 380V 50Hz±10% |
| Fiber laser power | optional |
| Machine apace | 2300*850*1498m |
Click here for more details

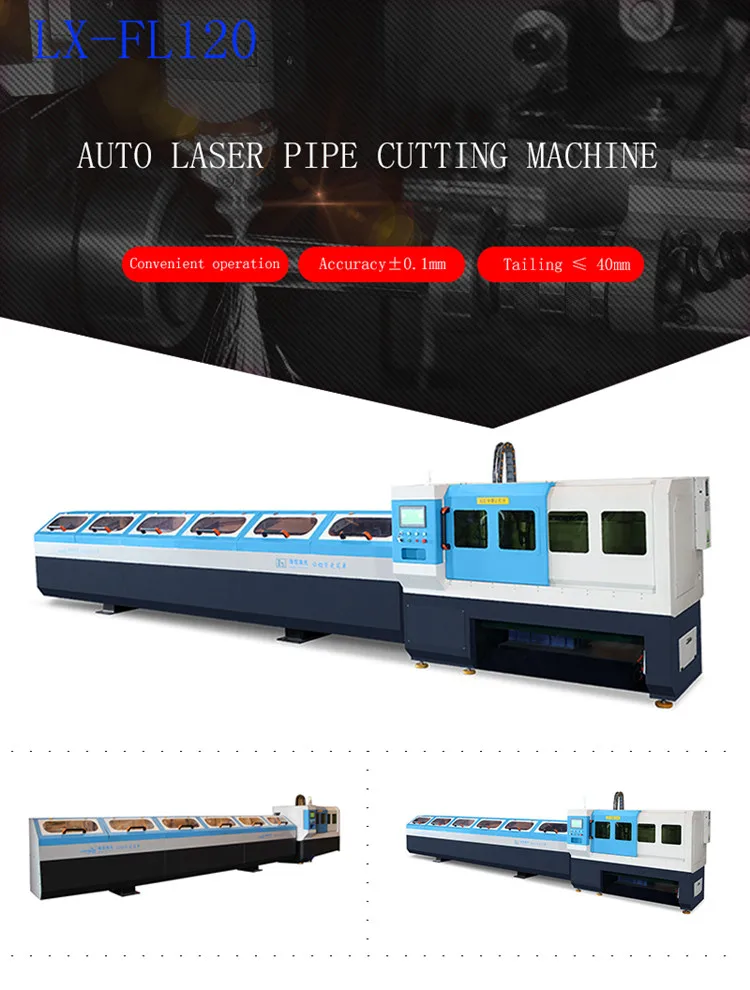

| Item | LX-FL120 |
| laser generator | 300-4000W (optional) |
| Pipe processing range | circular tube Φ 16-Φ 120mm |
| Cutting material thickness | 0.17-4mm |
| Maximum cutting speed | ≤16m/min(Depending on the thickness of the material) |
| Notch width | 0.05mm-0.1mm |
| Single feed length of Y axis | 1200mm |
| Z axis adjustment range | 65mm |
| W axis adjustment range | 360 |
| Machine tool repeat positioning accuracy | ±0.1mm/1000mm |
| Machine tool positioning accuracy | ±0.1mm |
| Air speed | 100m/min |
| maximal acceleration | 1.0G |
| Power demand | 380V 50Hz |
Click here for more details

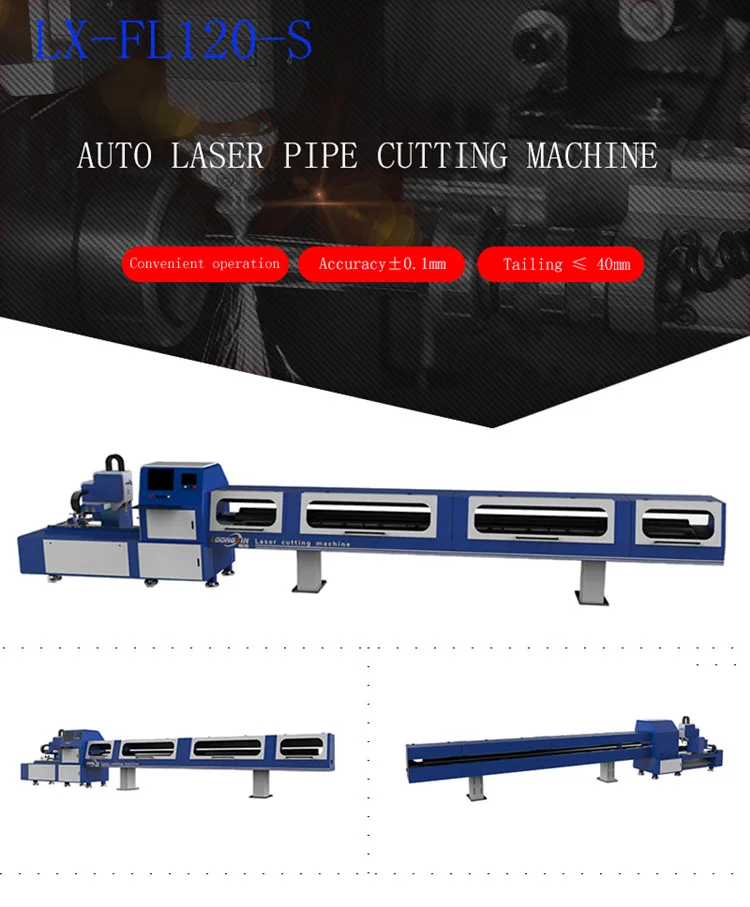

Item | LX-FL120-S |
Pipe processing range | 16-120mm |
Processing pipe length | ≤6200mm |
Maximum cutting speed | ≤20m/min (Depending on the thickness of the material) |
Notch width | 0.05mm-0.1mm |
X axis stroke | 250mm |
Y axis stroke | 1000mm |
Z axis stroke | 150mm |
W axis stroke | 3600 |
Machine tool repeat positioning accuracy | ±0.05mm/1000mm |
Machine tool positioning accuracy | ±0.10mm |
Air speed | 100m/min |
maximal acceleration | 1.0G |
Whole machine power | 11KW |
machine size (Length * width *height) | 8944mm*2105mm*1615mm |
Click here for more details

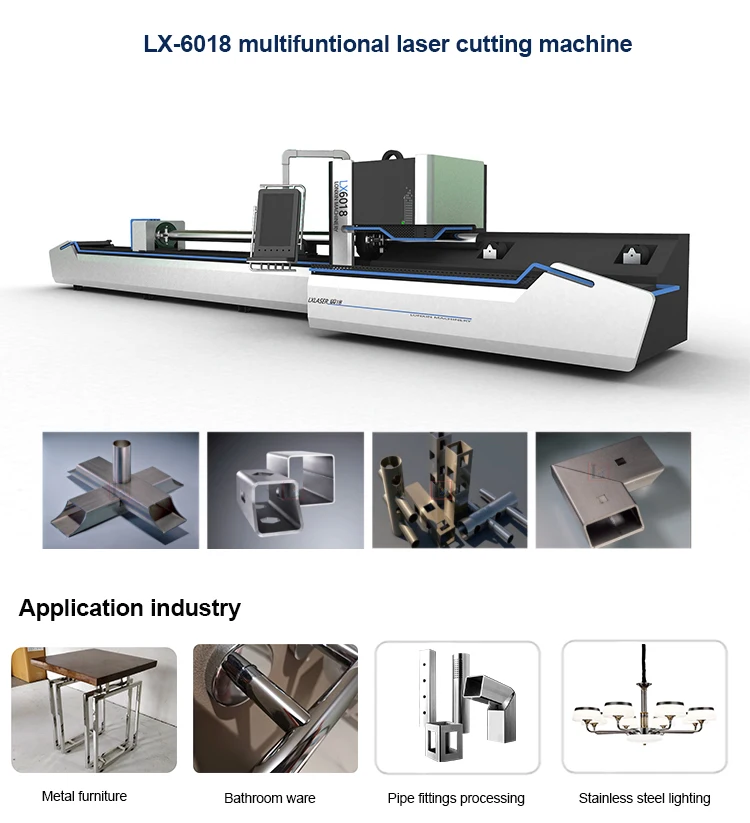

Applicable industries
widely usedcutting fences , security nets, water pipes, car exhaust pipes, clothes hanger rods, supermarket storage rack, sports equipment, bicycles, baby carriages,. Shared bicycles, high-frequency welded pipes, floor-standing fans, scaffolds, handrail ladders, door pull handles, steel pipe ladders, folding ladders, water pipe fittings, apartment beds, iron beds, stainless steel beds, sanitary tubs, mop rods, tent tubes, Fishing rod, mosquito net tube, hanger tube, curtain tube, automobile tailpipe, medical equipment, frame, hardware furniture, towel rack, bath towel holder, bathroom accessories, metal furniture feet, stainless steel chair, stainless steel furniture, stair railing, shoes Frames, stainless steel shoe racks, etc.
Click here for more details
Longxin Machinery is specialize in metal pipe processing machine’s designing, producing and installation. We have more than 50 products including laser pipe cutting machine, intelligent off-line & on-line CNC automatic pipe cutting machine, bending machine, chamfering machine, grinding gear machine etc.. Our products are widely used for stainless steel pipe, sanitary ware, metal furniture, hardware accessories, sports equipment, car exhaust pipe, motorcycles, bicycles, air conditioning pipe, fences, security nets, shelves and other industries and receive positive feedback from customers all over the world, such as Russia, Vietnam, Mexico, Pakistan, etc.
Business integrity is the founding principles of Longxin Machinery. We have our own R&D department and focus on technology and product innovation. We also have a professional after sales team to offer machine installation, debugging, and comprehensive technical supports. Our mission is to let pipe cutting easier, we will keep providing reliable, intelligent and labor-saving metal pipe cutting and processing machines to all of our customers. To achieve your expectations and create your profits.
Welcome to visit our factory to view more details.
