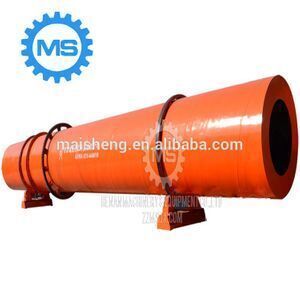

high efficient air flow sawdust dryer on promotion

Supplier: Henan Machinery& Equipment Company Limited
Region: Henan, China
Contact: Mr wayne law
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	any china port;	Supply Ability:	100 Set/Sets per Month;
Warranty:	18 months;	Application:	sawdust dryer;
Payment Terms:	L/C,D/P,T/T;	Brand Name:	MS;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Type:	Rotary Drying Equipment;
Fuel:	Natural Gas.oil, coal, wood;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	1800180015000mmm;	Material:	An Steel Q235;
Installation:	Engineer Guide;	Weight:	18.5tons;
Place of Origin:	Henan China;	Capacity:	300-50000kgs/hr;
Packaging Detail:	air flow sawdust dryer is packed in international imp & exp.standard.;	Item:	wood sawdust dryer;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;	Color:	Customized;
Advantage:	Low Consumption High Efficiency;	Condition:	New;
Name:	air flow sawdust dryer;	Voltage:	380V/50HZ;
Power(W):	30KW;	Certification:	ISO9001;

high efficient air flow sawdust dryer on promotion

Product Description

air flow sawdust dryer brief introduction

air flow sawdust dryer is one of traditional dryer machines. air flow sawdust dryer has such advantages as reliable working condition,

elastic operation, strong adaptability and high processing capacity, so that it is widely used in

many fields such as metallurgy, building material, chemistry, coal washing, fertilizer, sand, ore, clay, kaolin

and sugar. The diameter of drum drier is 1000-4000mm, and the length can be determined according to

the specific drying requirement. The moist materials that go inside the cylinder of the air flow sawdust dryer machine

will be repeatedly lifted and scattered by the lifting board on the rotating wall, and in the falling process, the

materials will be crushed by the scattering device into fine particles whose specific area is greatly

increased, and the fine materials will sufficiently contact the hot air and will be dried.

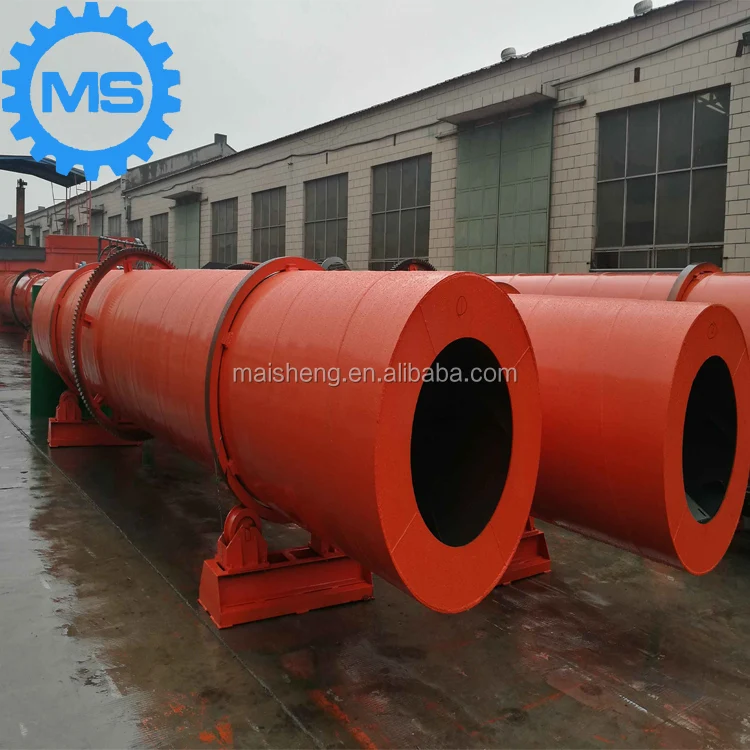

Production Details of air flow sawdust dryer

Features of air flow sawdust dryer

1. air flow sawdust dryer is widely used in such industries as fodder, chemistry, medicine and mine.
2.The working process of air flow sawdust dryer goes like this: the moist materials whose water has been drained go into the dryer machine, under the rotation of the lifting board evenly installed inside the roller

drum, the materials will be evenly scattered inside the drying machine and carry out sufficient contact with

the hot air, thus accelerating the heat transfer and mass transfer.
3.In the drying process, under the lifting board with a certain inclination and the heat media, the materials

will move to the lower end of air flow sawdust dryer and be discharged.
4. air flow sawdust dryer for sale is suitable for drying residue materials whose water content is below 85% such

as brewer’s grain, bean dregs, guniting corn bran, slurry and pomace, so that it has excellent effect for opening up fodder resources, reducing the feeding cost and reduce environment pollution.

Technical Parameter of air flow sawdust dryer

Length and Diameter	Volume	Reducer	Thickness (mm)	Weight (T)	Power(kw)	Fan power (kw)	Yield(t)
Φ 0.8 × 8	4	JZQ350	8	3.2	4	4	0.5-2
Φ 0.8 × 10	5	JZQ350	8	3.7	4	4	0.5-2.5
Φ 1 × 8	6.3	JZQ350	8	4.5	5.5	4	1-2.5
Φ 1 × 10	7.9	JZQ350	8	5.2	5.5	5.5	1-3
Φ 1 × 12	9.4	JZQ350	8	5.7	7.5	5.5	1-4
Φ 1.2 × 10	11.3	JZQ400	10	9	11	7.5	1-4.5
Φ 1.2 × 12	13.6	JZQ400	10	10	11	7.5	1-4.8
Φ 1.2 × 14	15.8	JZQ400	10	11	11	7.5	1-5
Φ 1.2 × 16	18	JZQ400	10	12	11	7.5	2-6
Φ 1.5 × 12	21.2	JZQ500	12	14.4	11	7.5	2-9
Φ 1.5 × 14	24.7	JZQ500	12	15.6	15	11	2-9.5
Φ 1.5 × 16	28.3	JZQ500	12	16.8	15	11	2-10
Φ 1.8 × 14	35.6	JZQ500	16	23	18.5	15	5-11
Φ 1.8 × 16	40.7	JZQ500	16	24.5	18.5	15	5-12
Φ 1.8 × 18	45.8	JZQ500	16	26	18.5	15	5-13
Φ 2 × 18	56.5	JZQ650	18	31	22	18.5	5-15
Φ 2 × 20	62.8	JZQ650	18	33	30	22	5-16
Φ 2 × 22	69	JZQ650	18	35	30	22	5-17
Φ 2.2 × 18	68.3	JZQ650	20	38	30	22	8-18
Φ 2.2 × 20	75.9	JZQ650	20	42	30	22	8-19
Φ 2.2 × 22	83.5	JZQ650	20	46	30	22	8-20
Φ 2.2 × 24	91.1	JZQ650	20	50	30	22	8-21
Φ 2.4 × 16	72.3	JZQ650	22	45	37	30	10-20
Φ 2.4 × 20	90.4	JZQ750	22	51	45	37	10-22
Φ 2.4 × 24	108.2	JZQ750	22	60	55	37	10-25
Φ 2.4 × 28	126.6	JZQ750	24	67	75	55	10-30
Φ 2.7 × 18	1.03	JZQ750	24	55	75	55	15-25
Φ 2.7 × 24	137.3	JZQ750	24	68	75	55	15-30
Φ 3 × 20	141.3	JZQ900	25	81	75	55	25-30
Φ 3.2 × 20	160	JZQ900	25	95	90	55	25-35
Φ 3.2 × 28	225	JZQ900	25	101	90	75	25-40
Φ 3.5 × 24	230	JZQ900	25	120	110	75	30-50

Note: No further notice if the technical parameters change.

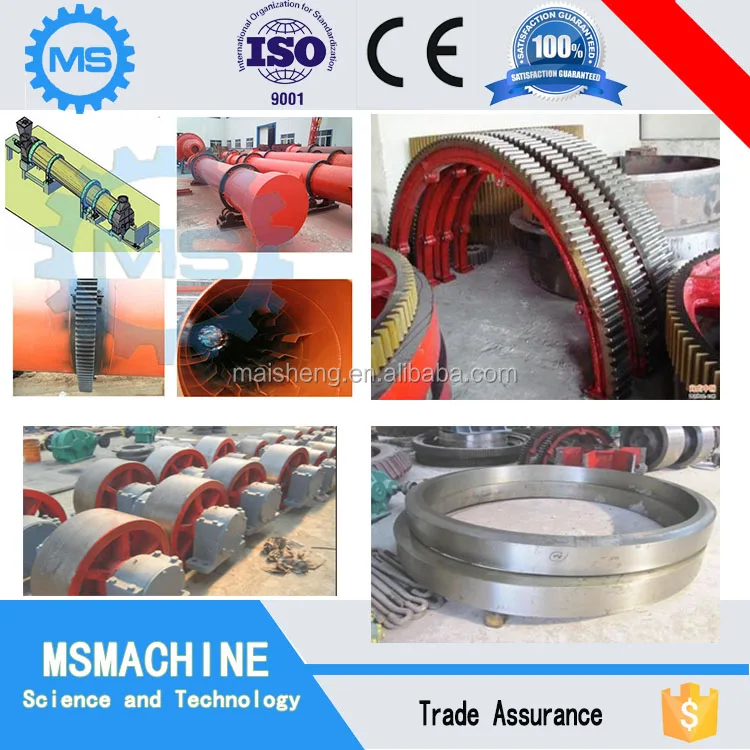

Componets of air flow sawdust dryer

air flow sawdust dryer is mainly consisted of :

1) Furnace

2) Connection pipes between air flow sawdust dryer and furnace

3) Feeding Device

4) air flow sawdust dryer roller ring

5) Big gear(45# steel)

6) Transmission parts ( Motor, Reducer, Bearing, Small gear)

7) Carrier Roller of air flow sawdust dryer

8) Discharing Device

9) Cyclone

10) Dust Remover

11) Air induced fan

Working Principle of air flow sawdust dryer

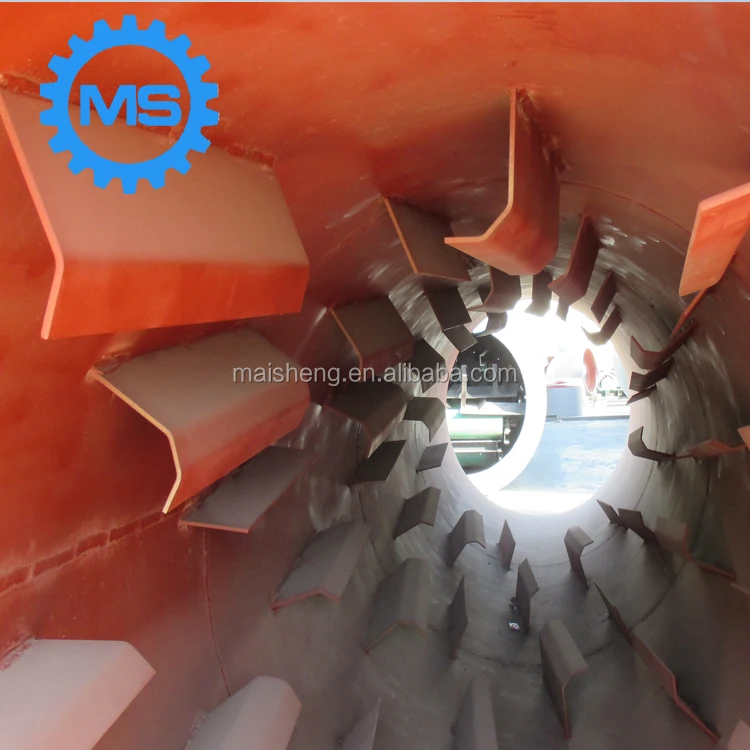

air flow sawdust dryer is consist of heating device, feeding device, transport device, discharge device, dust extraction device and other connecting parts. For the installation process, the air flow sawdust dryer should slopes slightly so that the discharge end of air flow sawdust dryer is lower than the material feed end in order to convey the material through the air flow sawdust dryer under gravity. Material to be dried enters the air flow sawdust dryer, and as the air flow sawdust dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the air flow sawdust dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of air flow sawdust dryer, passing through the hot gas stream as it falls.

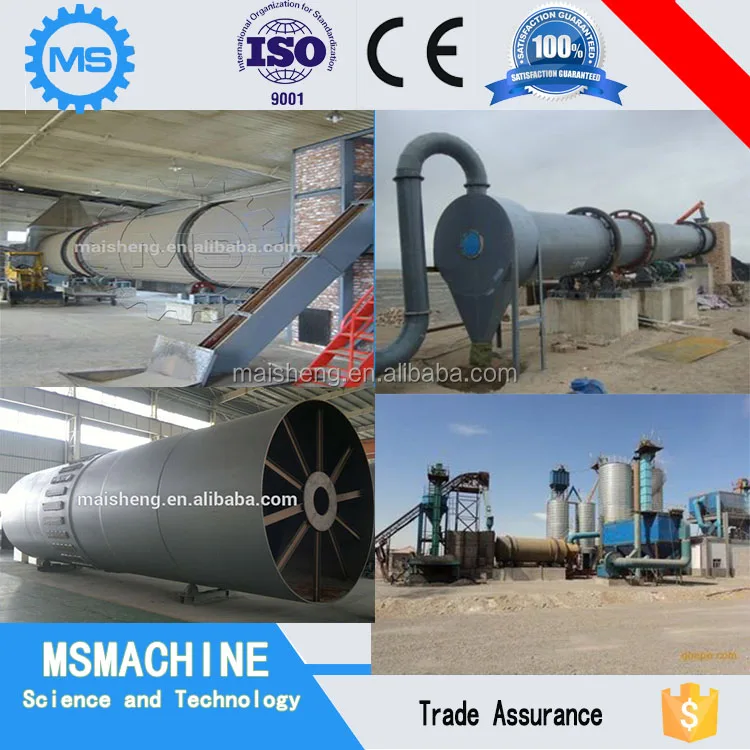

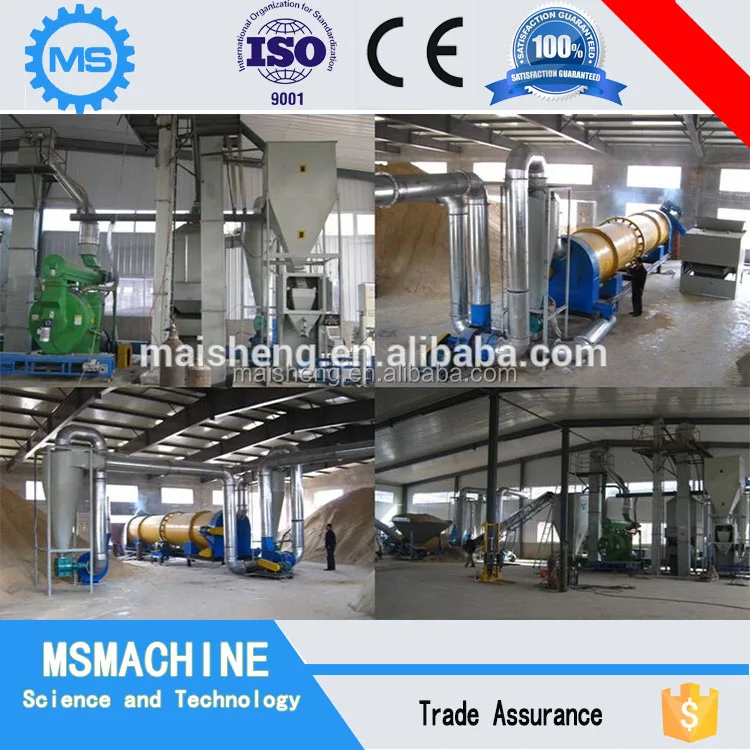

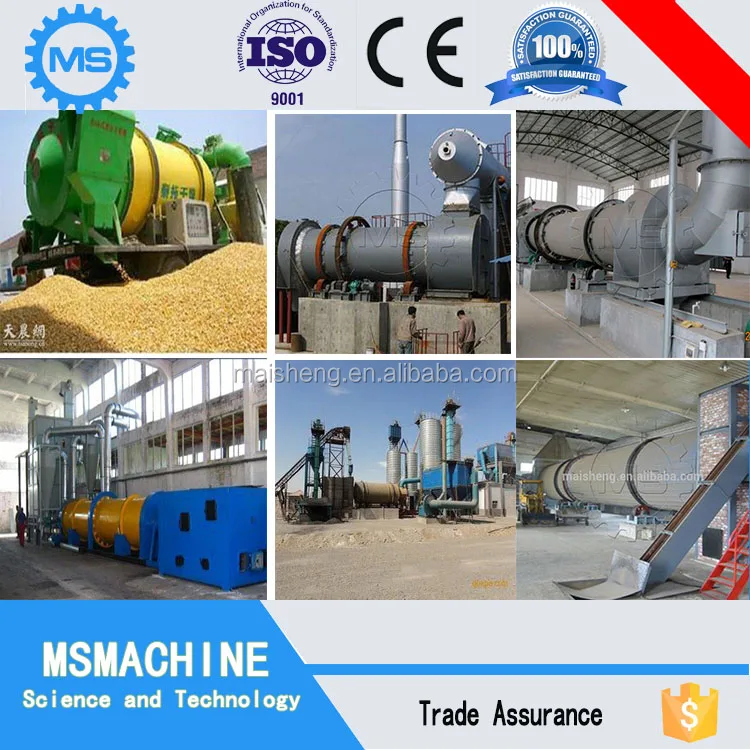

Customer Site

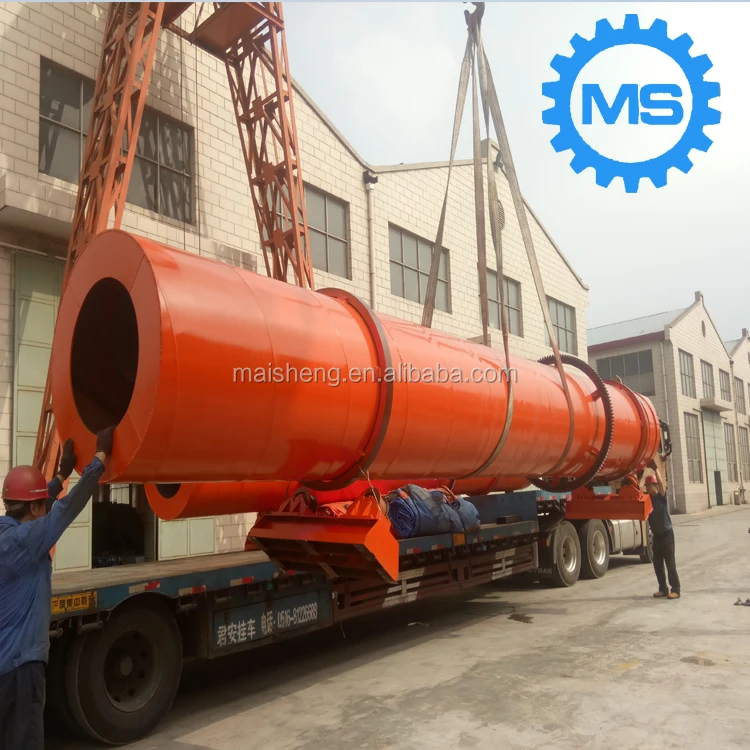

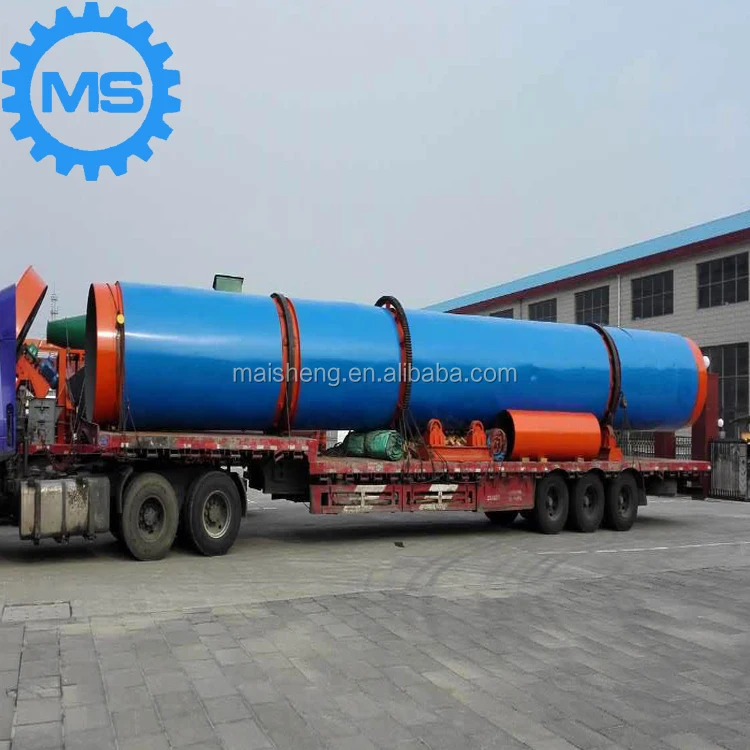

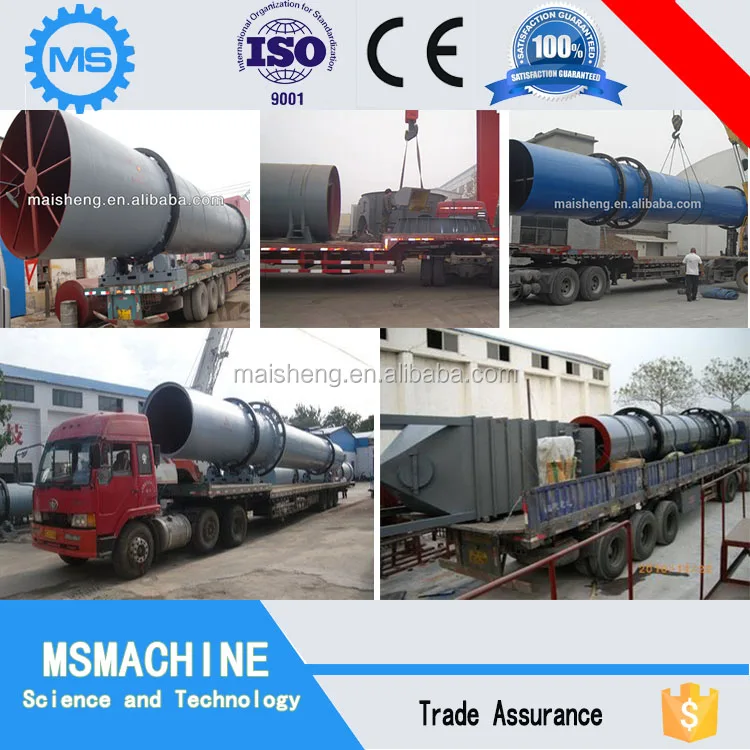

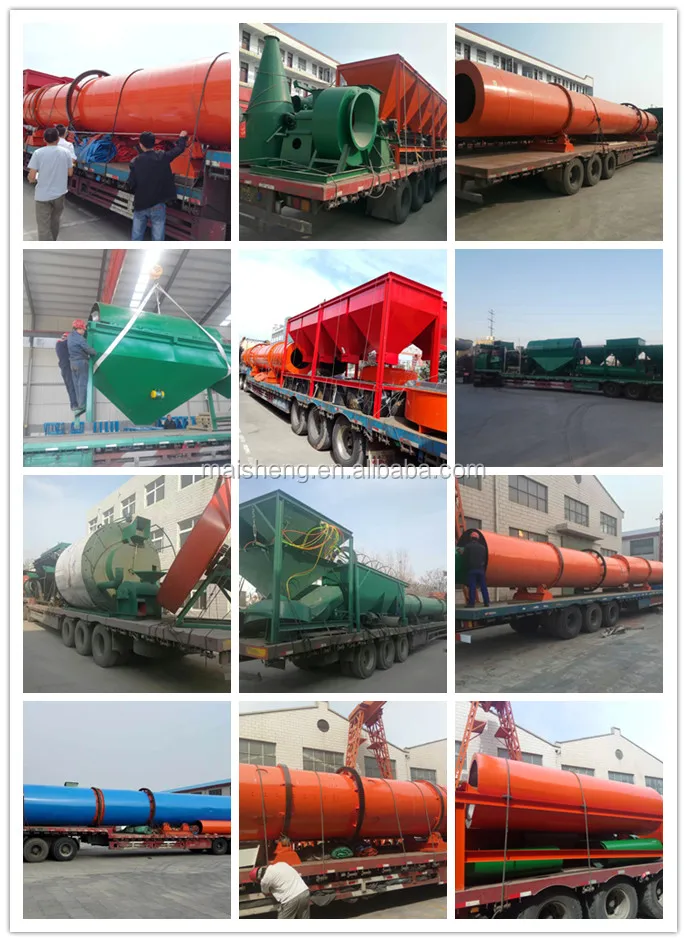

Packaging & Shipping

Packaging Detail: Our air flow sawdust dryer are packed as follows:

1. Processed to be rustproof and moisture proof before delivery.

2. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.

Our Services

Pre-sales Service

1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;

Service on Sale

1.Providing initiative and enthusiastic service;
2.Introducing & Demonstrating products and its application to clients;
3.Helping clients to choose equipments.

After-sales Service

1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;

FAQ

Q 1: To which country your air flow sawdust dryer are being exported?

A: Our air flow sawdust dryer are being exported to Peru, USA, Chile, Brazil, Egypt, South Afrcia, Ethiopia, Sudan, Zambia,

Kenya, Turkey, Indonesia, Malaysia, Philipines, Australia, Iran, India and so on.

Q 2: How will your factory help customers to install the air flow sawdust dryer?
A: Our senior engineers will guide the installation and commissioning as well as the initial production at
your working shop until machine works smoothly;

Q 3: How about the wear parts supply?
A: Our factory offer wear parts to every customer with our most favorable price. If there are problems you
could not handle, we will send our technicians to your place at our early time;

Q 4: How about the quality of your air flow sawdust dryer?
A: Our air flow sawdust dryer are manufactured strictly according to national and international standard. We check every

part of machine carefully before delivery.

Q 5: Why Choose your factory?

A: We have the best quality and price for our air flow sawdust dryer; we have a professional installation and after-sales staffs; we have the largest factories and production capacity; we have a professional sales and service

team.
