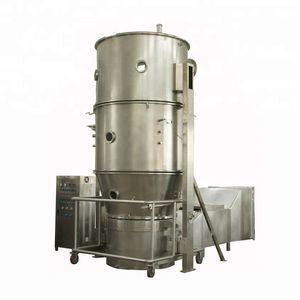

Granules Powder Application Fluid Bed Dryer

Supplier: Jiangyin Lingling Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jackee Wang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	Depends on model;	After-sales Service Provided:	Engineers available to service machinery overseas;
Certification:	CE ISO;	Packaging Detail:	wooden case;
Weight:	1560kg;	Supply Ability:	2 Set/Sets per Month;
Power(W):	15kw;	Place of Origin:	Jiangsu China;
Condition:	New;	Type:	Fluid Bed Drying Equipment;
name:	fluid bed dryer;	Brand Name:	LL brand;
Voltage:	380V/50HZ;	material:	stainless steel;
Warranty:	One Year;	Port:	SHANGHAI;
Payment Terms:	L/C,T/T,Western Union;

Product Description

main feature

Use screw to extrude and vibrate granule and granulate granule using the methods of humidity, high speed and mixing;
Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical , foodstuff, feedstuff, chemical industries and so on;
The raw material is large in granule and small in bolck and having adhesive property;
Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.

Features

The structure of fluidized bed is round so as to avoid dead corner;

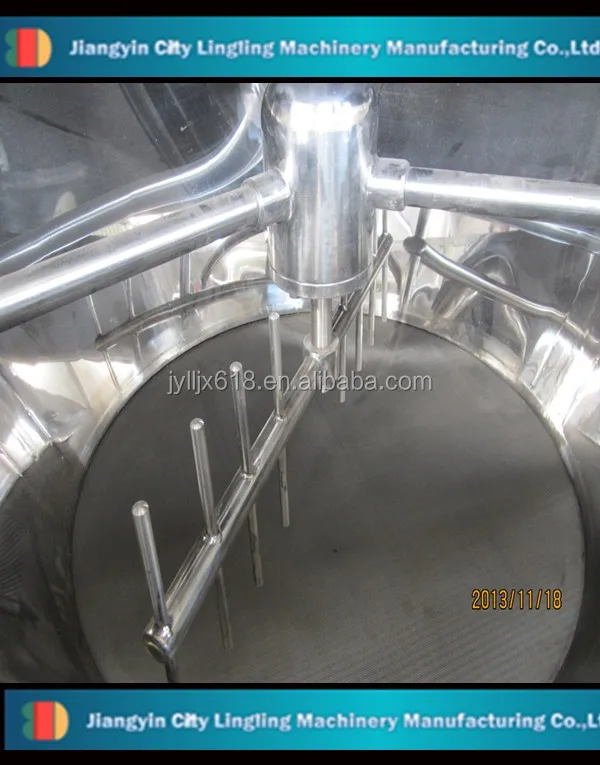

Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow;
The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request too;
It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP;
The drying speed is fast and the temperature is uniform. In general the drying time is 15-45 minutes for each batch.

Technical data:

Model			GFG-60	GFG-100	GFG-120		GFG-150		GFG-200		GFG-300		GFG-500
Batch charging(kg)			60	100	120		150		200		300		500
Blower	Air flow(m³/h)		2361	3488	3488		4901		6032		7800		10800
	Air pressure(mm)(H₂O)		494	533	533		679		787		950		950
	Power(kw)		7.5	11	11		15		22		30		45
Agitating power(kw)			0.4	0.55	0.55		1.1		1.1		1.1		1.5
Agitating speed(rpm)			11
Steam consumption(kg/h)			141	170	170	240		282		366		451
Operating time(min)			~15-30 (According to the material)
Height(mm)		Square	2750	2850	2850	2900		3100		3300		3650
		Round	2700	2900	2900	2900		3100		3600		3850
