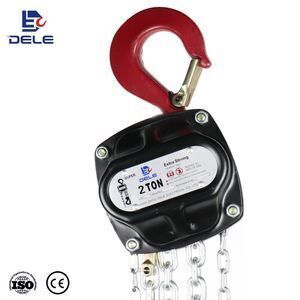

DF200 vital 2 ton manual chain hoist block 2 ton crane hoist prices

Supplier: Dele Electrical (Hangzhou) Co., Ltd.
Region: Zhejiang, China
Contact: Ms sa li
Price: $52.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Product:	2t chain hoist;	Lifting height:	3m;
Name:	manual chain hoist;	Package Type:	carton;
Application:	Construction Site Lifter;	hand chain:	G30;
Single gross weight:	18 KG;	Model Number:	CK;
Place of Origin:	Zhejiang China;	Capacity:	2 ton;
Color:	cutomized;	Single package size:	31X18X22 cm;
Load Chain:	G80;	Type:	Moveable;
Selling Units:	Single item;

Product Description

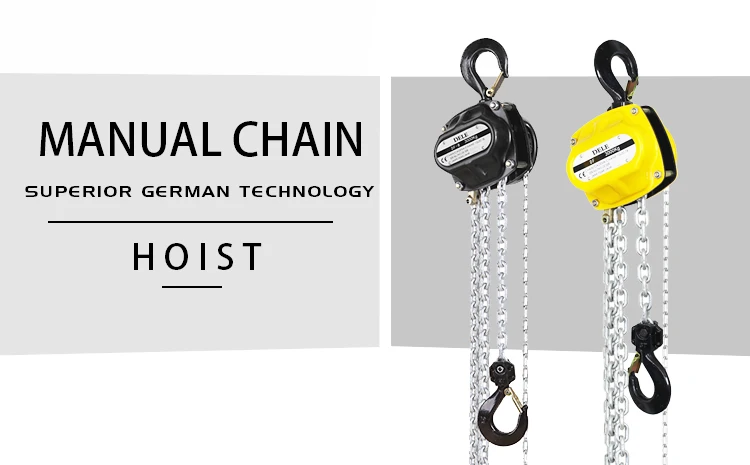

Manufacturer of 2ton Chain Pulley Block

CK series chain hoist is improved on the basis of CK SERIES, AFTER absorbing the advanced technology in the world .besides the traditional characteristics of hs-c series chain hoist .it needs less hand-pull force ,and it is safe ,more beautiful and applicable.

MODEL	CK-0.5	CK-1	CK-1.5	CK-2	CK-3	CK-5	CK-10	CK-20
Capacity load(t)	0.5	1	1.5	2	3	5	10	20
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3
Running testload(KN)	7.5	15	22.5	30	45	77	150	300
Force(n)	231	309	320	360	340	414	414	828
Minimum distance between hooks(mm)	270	317	339	414	465	636	798	890
Load chain Number of falls(mm)	1	1	1	1	2	2	4	8
Load chain Diameter(mm)	6	6	8	8	8	10	10	10
Net weight(kg)	11.25	11.5	17.4	22.2	26.2	37.7	72	160

Certifications

Detailed Images

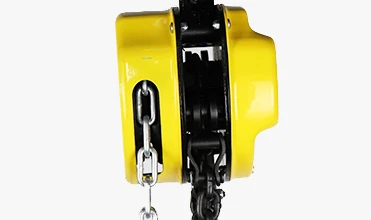

Spray

the plate finish is electrophoretic painting
which protects from moisture.Hosit body
cover painting is done which special technology
for long lasting color

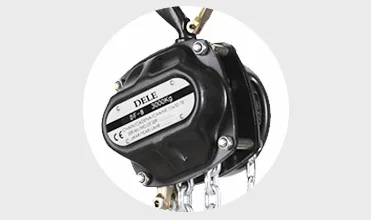

END ANCHOR

end anchor is designed to touch the hoist
plate so that it can withstand more force
and be stronger

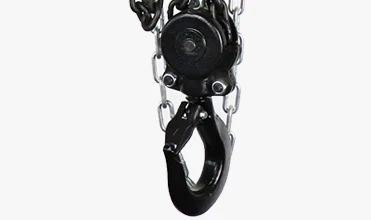

HOOK

Drop forged hooks can swivel fully.Hook uses
embedded design tio ensuring better safety.
thickness of safety latch is much heavy duty
compared to other brands in market

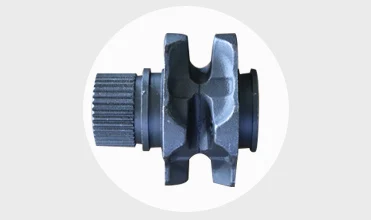

WHEEL

load bearing wheel is made of
high quality material and smooth
finish

Advantages

1. In line with international standards, safe and reliable, durable.
2. Good performance and easy maintenance.
3. High toughness, small size, light weight and easy to carry.
4. The hand pull force is small and the strength of the machine is high.
5. Compact and advanced structure, beautiful appearance.
6. Lift the cargo in the no-power area.
7. Powerful.

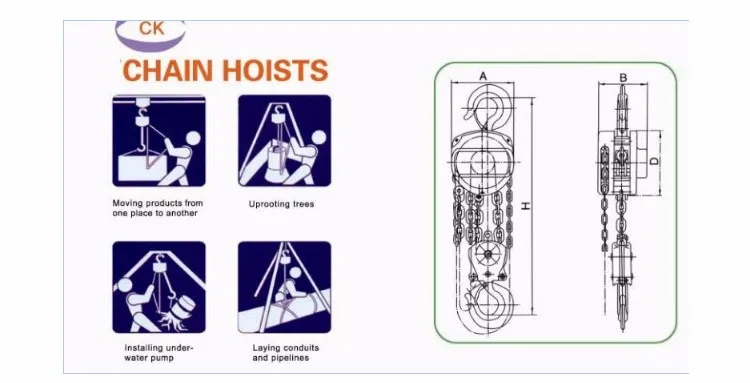

Use occasions
