High quality 1.5 ton manual hand lifting tolls chain block

Supplier: Dele Electrical (Hangzhou) Co., Ltd.
Region: Zhejiang, China
Contact: Ms sa li
Price: $51.49 / >=10 sets
Min. Order: 10 sets

Click here to contact

Product details

Lifting height:	1.5m;	Single package size:	35X18X13 cm;
Capacity:	1.5t;	Type:	Lifting Equipment;
Brand:	DELE or EDM;	Color:	yellow or black;
Package Type:	Usually packed by wooden case. or according to customers' demand;	Application:	Construction Site Lifter;
Selling Units:	Single item;	Power supply:	manual;
Single gross weight:	15.6 KG;	Chain:	G80 Chain;
Hook:	Forged;

Product Description

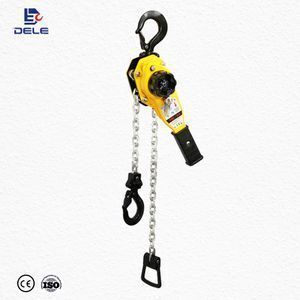

High quality 1.5 ton vital chain block lever hoist

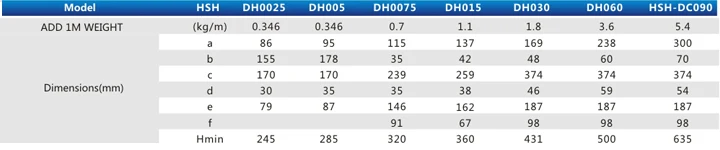

MODEL	HSH	DH005	DH0075	DH015	DH030	DH060	HSH-DC090
CAPACITY	(KG)	500	750	1500	3000	6000	9000
standard lift	M	1.5	1.5	1.5	1.5	1.5	1.5
load chain number of falls		1	1	1	1	2	3
effort required to lift max load	N	260	220	240	330	360	380
running test load	kg	750	1125	2250	4500	9000	13500
load chain diameter x numberoffalls	mm	4x12	5.6x16.7	7.1x21.2	9x27	9x27	9x27
net weight	kg	3.2	5.3	8.6	15.2	23	43
G.w	kg	3.4	5.6	8.9	15.6	23.5	44.5
packing size	cm	231312	31.51612	351813	482013.5	4821.517	532825

Certifications

Detailed Images

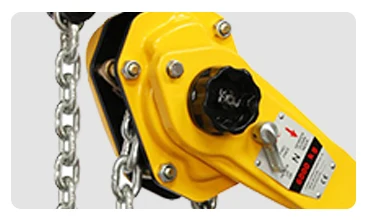

Body cover

The plate finish is electrophoretic pating which protects from moisture.Guide roller use#45 steel material with heat treatment
for better hardness and smooth chain flow
