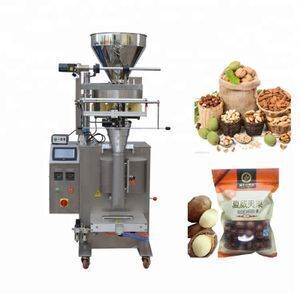

YB-300k Automatic Nuts/ Legume/ Grains Packaging Machine

Product details
sealing method:pneumatic/ mechanical;Single package size:140X83X193 cm;
Single gross weight:400 KG;Brand Name:YB;
Product name:nuts packaging machine;Warranty:one year;
Applicable Industries:Food & Beverage Factory,Food & Beverage Shops;Certification:CE;
control system:PLC;Condition:New;
Sealing type:3 sides seal, pillow seal;Packaging Type:Bags,Film;
Selling Units:Single item;Weight:350kg;
Automatic Grade:Automatic;machine material:304 stainless steel;
After-sales Service Provided:Engineers available to service machinery overseas;Print unit:1-3 lines;
Type:Other;Place of Origin:Shanghai China;
Packing range:10g-1000g;production capacity:20-60 bags/min;
Power:1.6KW;Dimension(L*W*H):1100mm x 800mm x 1900mm;
Voltage:220V;max Film width:450mm;
Application:Beverage,Chemical,Food,Machinery & Hardware,Medical;Packaging Material:Wood;
Package Type:wooden box;Driven Type:Electric;

YB-300K Automatic Nuts/ Legume/ Grains Packaging Machine

Samples:



Usage



This machine is widely used to pack granular materials, such as washing powder, sugar, coffee, salt, MSG, flavouring, sunflower seeds, nuts, tea, herbs, peanuts, beans, rice, grains, etc.



Function and features



1.This machine can finish these work automatically: measuring--making bag--coding (option)--filling--gas injection(option)--sealing--counting.

2. Computer/PLC control system, photoelectric tracking, which improve the control precision, reliability and intelligence at the maximum limit.

3. Has fault display system, easy to operate and maintain.

4. Make punching blade after customer's special request.

5. Full stainless steel or carbon steel machine for choice.



Technical parameter

Model Type

YB-150k

YB-300k

Packing speed

30-80 bags/min

20-60bags/min

Packing range

5-200ml

50-1000ml

Making bag size

L: 50-150mm, W: 15-130mm

L:50-300mm, W:50-210mm

Packing accuracy

≤±1%

≤±1%

Power

1.6 KW

1.9KW

Power supply

AC220V, 50/60Hz

AC220V, 50/60Hz

Seal type

3/4 side seal, pillow seal

 3/4 side seal, pillow seal

Net weight

250kg

350kg

Machine dimension

600*790*1800mm

800*1100*1900mm

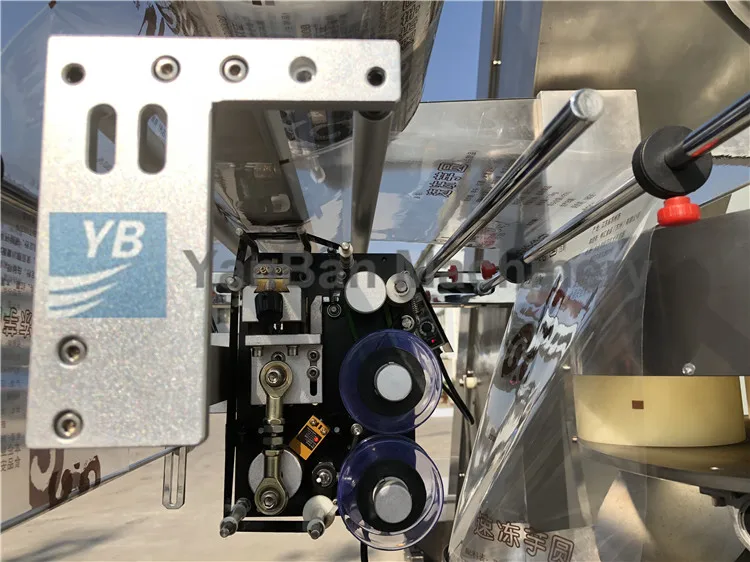

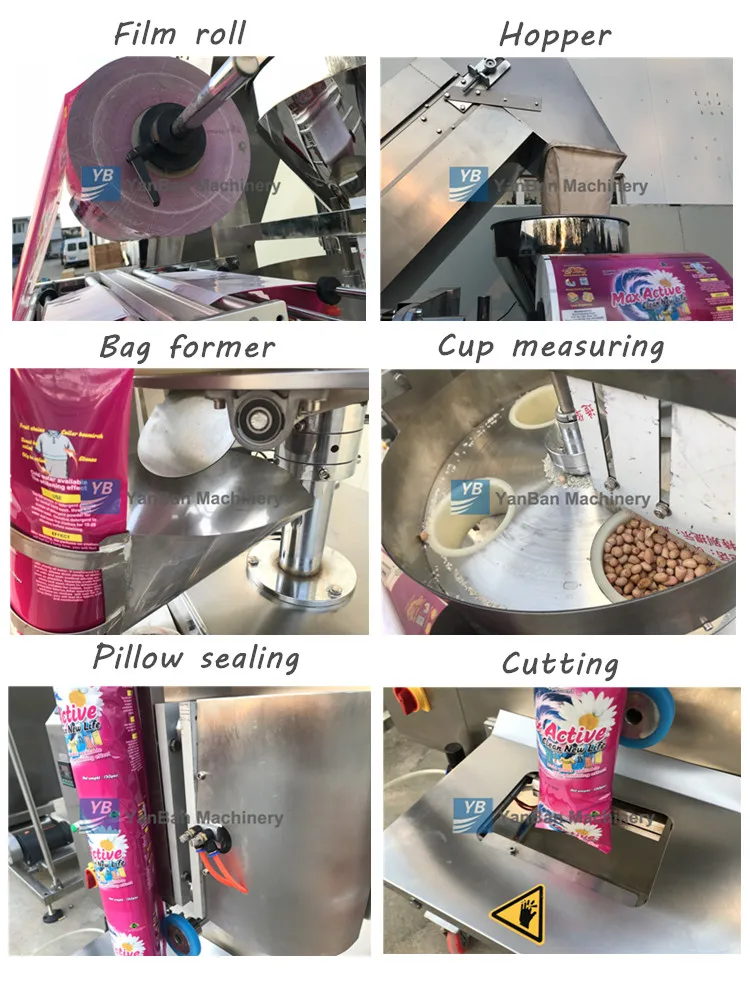

Machine details











Shanghai Yanban Machinery Co., Ltd

Contact: Serene

Mob/Skype/WhatsApp: +86 18321269629

Wechat: by18321269629 QQ:2757724295



Related machines

                                                                                 Pls click to know more⇓

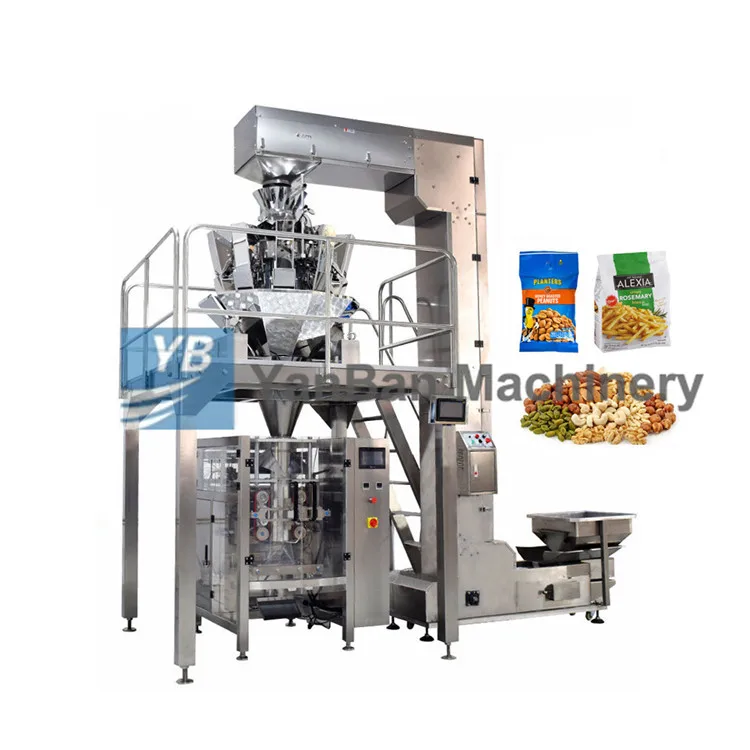

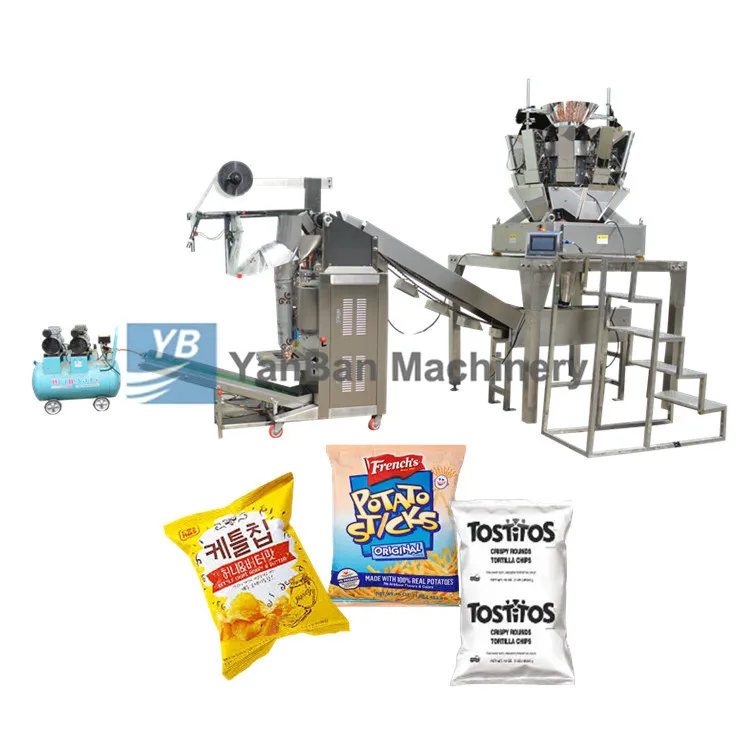

5g 10g Sugar/salt/pepper packaging machine   Granule packing machine with multi-head weigher

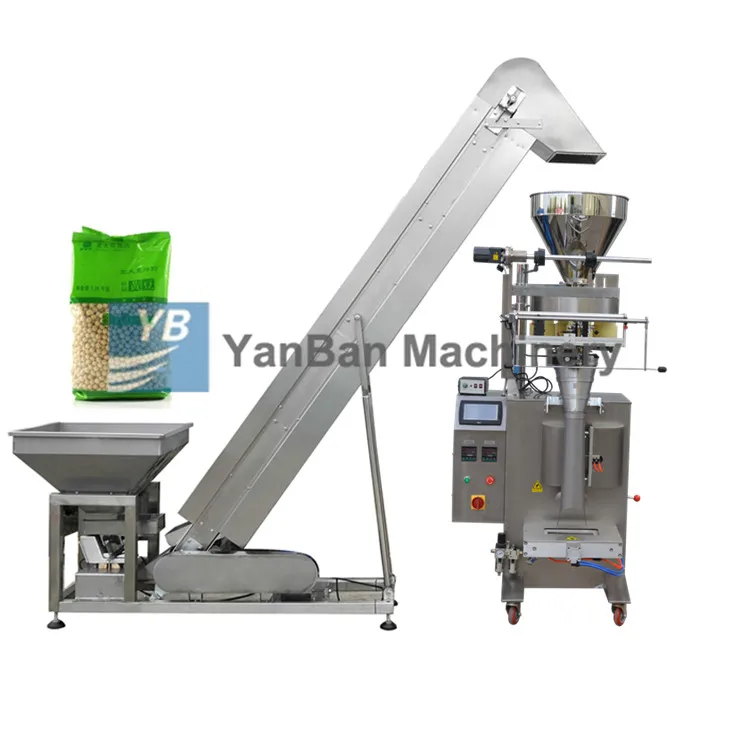

Granule packing machine with elevator                          Chain bucket with multi-head weigher

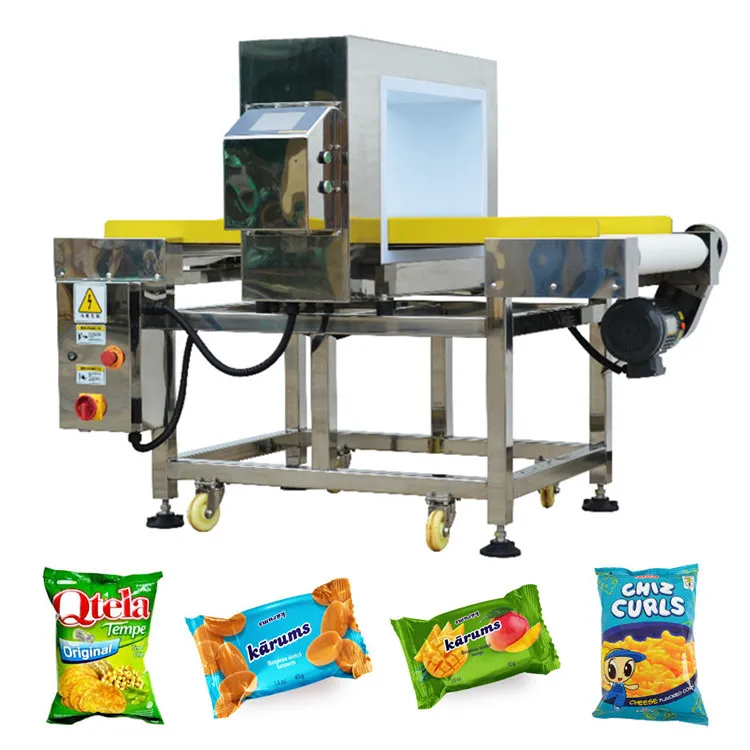

Metal detector can help you to detect  if  there are any metal foreign objects.
