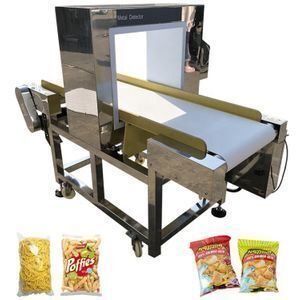

YB-J6040 Automatic metal detector for food production line

YB-J6040 Automatic metal detector for food production line

Principle

Metal detectors use the principle of electromagnetic induction to detect metals. All metals, including iron and non-ferrous, have high detection sensitivity. The entry of ferromagnetic metal into the detection area will affect the distribution of the magnetic field lines in the detection area, which in turn affects the magnetic flux in a fixed range.

Machine description

1. Iron and non-iron sensitivity adjustable, 2 respectively light-emitting diodes (leds) respectively show iron and non-iron signal size, convenient operation and straightforward.

2. This machine can detect metal for minimum diameter: 0.8mm.

3. Aquatic products, frozen food, salted products effect, have extremely strong inhibitory ability.

4. Easy removable type rack, so easy for cleaning.

5. Probe and frame use stainless steel materials, strong waterproofing ability.

Application

Detection of metal foreign objects in various textiles, toys, foods (food additives, condiments), pharmaceuticals, health products, cosmetics, etc., such as iron, copper, aluminum, stainless steel and other metal particles, can be tested in bulk, bagged, bottled, Boxed and other forms.

Metal detection sensitivity

According to the products, use environment, testing models will make the detection sensitivity change.

Technical parameters

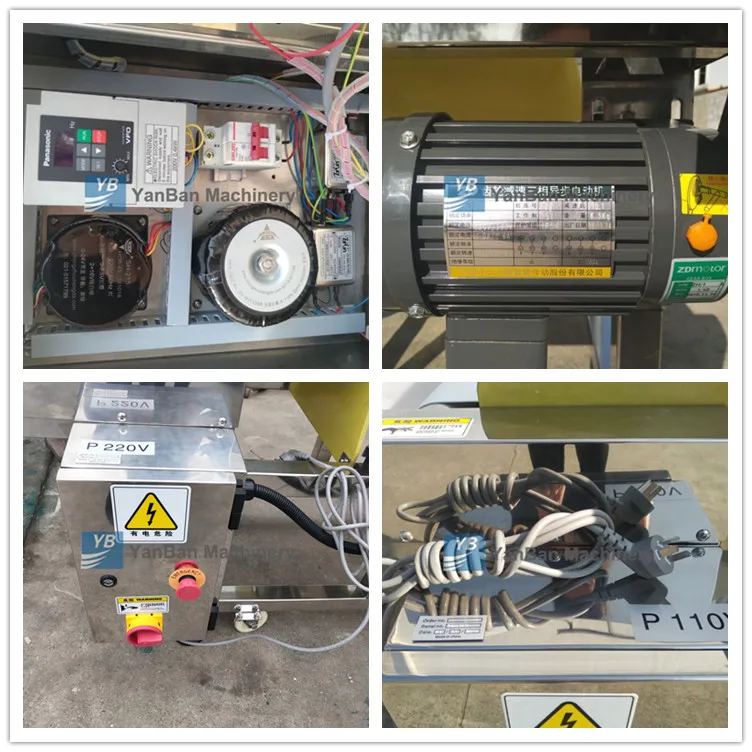

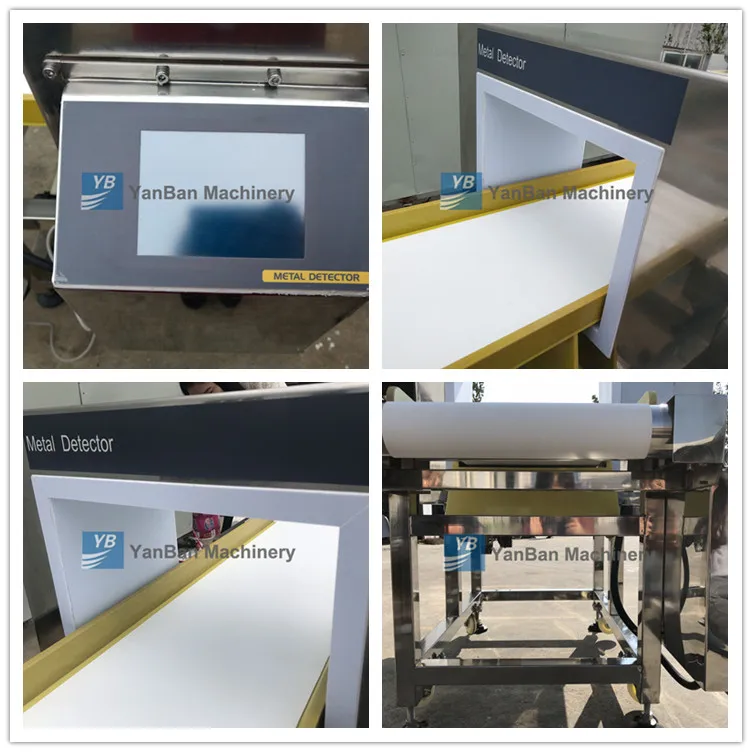

Machine details
