disc centrifuge separator with self-cleaning bowl

Supplier: Yixing Head Separator Machniery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Bruce Woo
Price: $9001.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	T/T;	Certification:	ISO;
Power(W):	1.5kw;	Warranty:	1 Year;
Model Number:	PJLDH-5;	Brand Name:	head;
Dimension(LWH):	600650700;	After-sales Service Provided:	No overseas service provided;
Place of Origin:	Jiangsu China;	Voltage:	380V/50Hz;
Weight:	160kg;	Condition:	New;
Port:	FOB shanghai;	Packaging Detail:	1.parking:standard wooden box 2.guarantee period:12 months after receiving goods, or latest 16 months after date of Bill of Loading. 3.sprae parts and accessories:we supply some parts and accessories for free. 4.electronic module:it is made up of electronic control cabinet, 5.special tools:we supply a set special tools for free;
Supply Ability:	5 Set/Sets per Month;	Delivery Detail:	Within 30days after accepting your deposit;
Processing Types:	Juice;	Processing:	Separater;
stainless steel bowl and hood:	cast iron gear case;

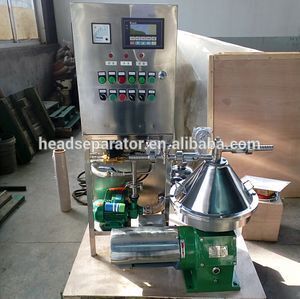

PJLDH-5 beverage separator is the most important equipment

in dairy industry. Mainly used in the purified beverage, and

removal of foreign impurities in the milk. Similar materials

can also be used for clarification and purification.

This product absorbs the advantage of the same kind

foreign product in Germany and Russia. All the parts

that may contact the feedstock are made of stainless

steel. Availably reduce the chemical effect of the feedstock

and the machine spare parts.

Power drive adopts the triction clutch, Transfer power by

the fluid, start reliably, prevent overland. The bearings used

the machineare SKF grade in Sweden., guarantee working

precision of the machine.

The separator adopts the PLC automatic control system,

can carry out automatic de-slugging, ability of fitness is

stronger, automatic degree is high. Easy to adjust, worker

labor strength is opposite to ease, the solids content ratio in

the mixture fluid is widely.

When working,the sealing water 7 is bumped

Into the sealing room 6,rising the sliding piston,

and sediment ejection hole 3 is shutted down. then, Milk

to be processed are fed to the bowl from feeding pipe 1, Under

the effects of centrifugal force, the solids which has heavier

density is collectedon the bowl wall, After a while, the opening

water 7 is bumped into the opening room 5, falling the sliding

piston,open the sediment ejection hole 3, impurities are desluged

from the bowl. The lighter liquid (mikl) flow along the inner

side of the discs into the passage in the upper distributor,the

lighter liquid is discharged from the machine by the

centripetal pump2. Thus the milk is clarified well. The separator adopts self de-slugging and centripetal pump. Thus the machine can work continuously for a long time, attain good separation effects in long run.
