Number of passengers: | 2+3; | Total weight (kg): | 6600; |
Supply Ability: | 1000 Set/Sets per Month; | Type: | Rescue; |
Power (kw): | 96; | Brand Name: | Feifanwei; |
Max. Work Height: | -; | Displacement (ml): | 2999; |
Condition: | New; | Tire: | 7.00-16 14PR, 7.00R16 14 PR; |
Emission Standard: | EURO 5; | Drive Wheel: | 4x2; |
Tank capacity (m): | 3.0; | Maximum speed (km/h): | ≥90; |
Fuel Type: | Diesel; | Port: | Xingang; |
Transmission Type: | Manual; | Place of Origin: | Hebei China; |
Payment Terms: | L/C,T/T,Western Union; | Size: | 6790x1990x2720mm; |
Packaging Detail: | box packing, with pallet; | head (m): | 500; |
Water supply (m): | 5000; | Axle (mm): | 3815; |
Main technical parameters | |
Discharge standard | GB17691-2005 Country V GB3847-2005 |
Engine model | 4KH1CN5HS |
Power (kw) | 96 |
Displacement (ml) | 2999 |
Lifts/head (m) | 500 |
Water supply (m) | 5000 |
Total weight (kg) | 6600 |
Overall dimensions (mm) | 6790x1990x2720 |
Axle (mm) | 3815 |
Passengers | 2+3 |
Maximum speed | ≥90 |
Tire | 7.00-16 14PR, 7.00R16 14 PR |
Tank capacity (m) | 3.0 |

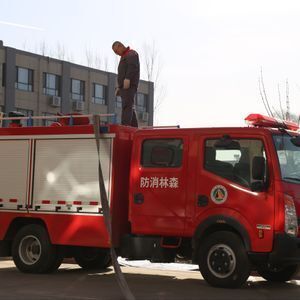

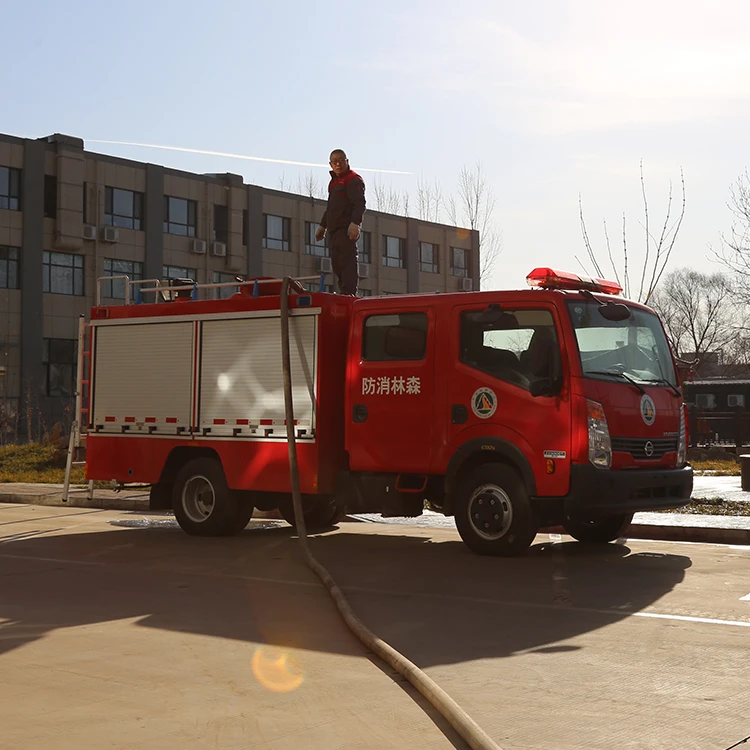

The ultra-long-range high-pressure water supply fire fighting truck is modified on the basis of Qingling Isuzu original class II chassis QL1070A5KWY. The vehicle has good dynamic performance, compact structure and reasonable layout.
| |
The whole vehicle is equipped with an ultra-high-pressure water supply device, a multi-functional make-up water pump, an electrically controlled hose reel, a pump room heating device, a 360-degree high light remote control illuminating lamp, an LED warning light alarm, a double-layer high pressure host and other supporting devices.
| |
| |
| |
It can carry a large number of people, and has a large loading space, complete device functions and scientific reasonable functional design, and the problem of high-difficulty fire fighting operations such as high fire extinguishing altitude and long water supply is solved. |
