220V EC fan 12038 120mm Pop plastic frame energy saving cooling fan in china

Product details
Power:20W;Air Volume:72-113CFM;
Voltage:115V/220V;After-sales Service Provided:No overseas service provided;
Weight:230g;Certification:CCC,CE,ROHS;
Type:Centrifugal Fan;Package Type:bulk pack;
Mounting:Free Standing;After-sales Service Provided:Online support;
Warranty:1 Year;Blade Material:Plastic;
Package Preview:https://sc02.alicdn.com/kf/HTB10Ie5UNYaK1RjSZFnq6y80pXae.jpg_640x640.jpg;Place of Origin:Guangdong China;
Brand Name:Yun-Fan;Single package size:12X12X3 cm;
Selling Units:Single item;Single gross weight:0.25 KG;
Applicable Industries:Food & Beverage Factory,Restaurant,Home Use,Food Shop,Construction works ,Energy & Mining,Advertising Company;
Product Description

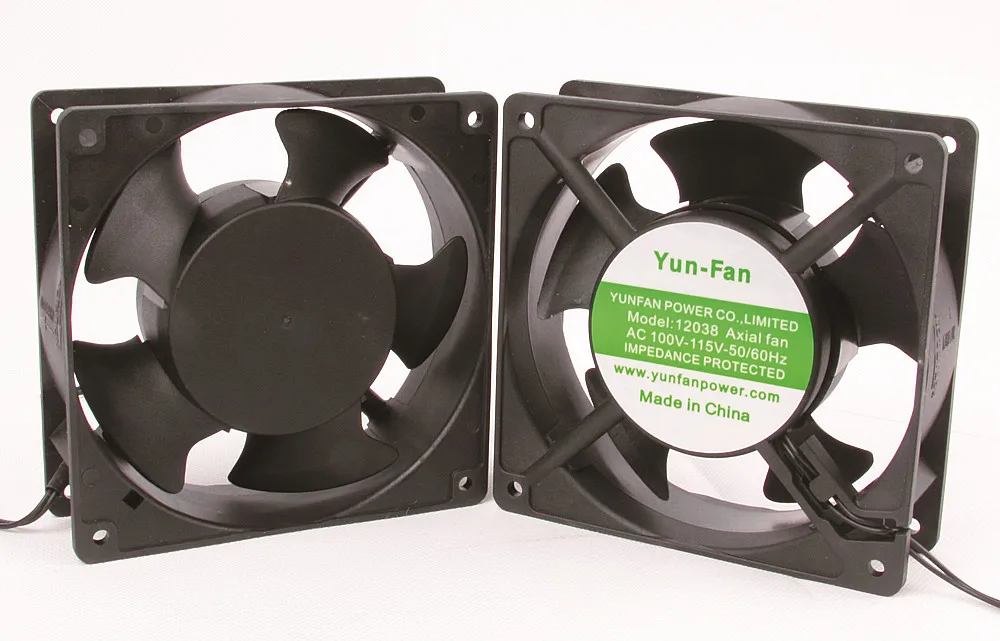

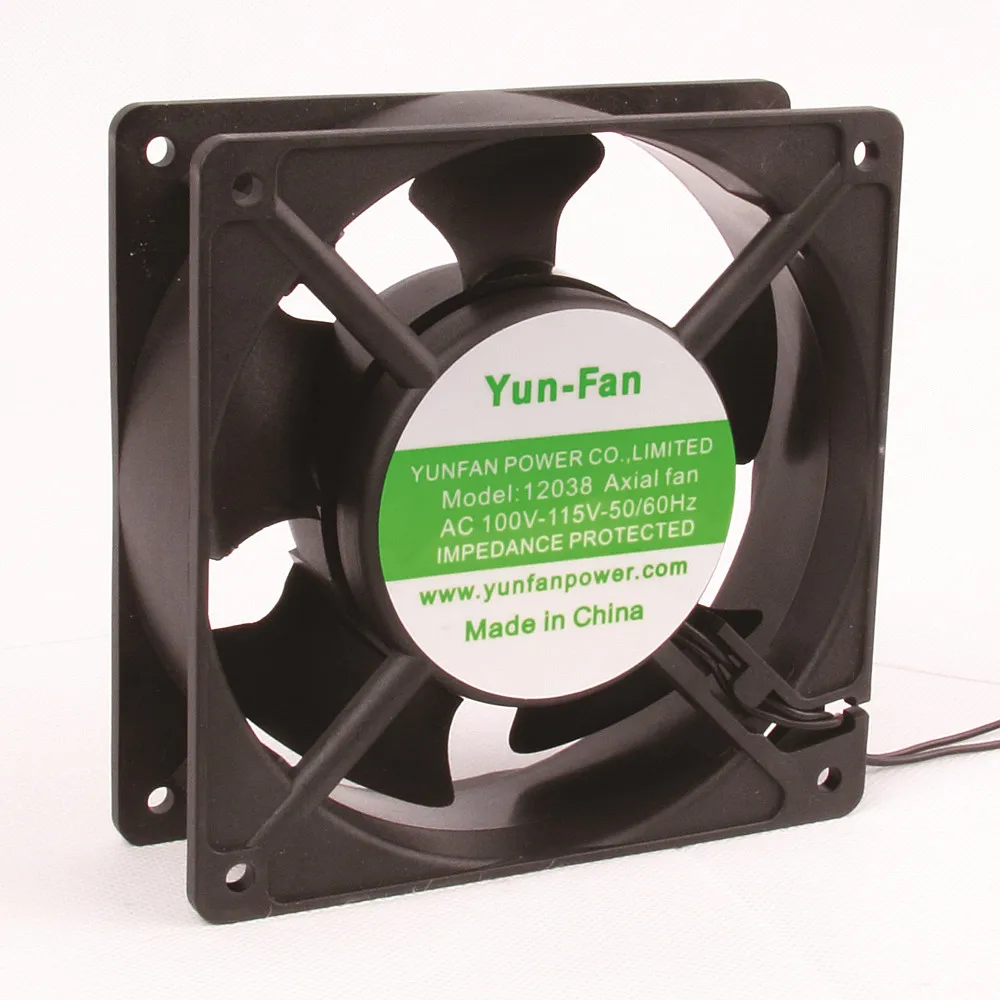

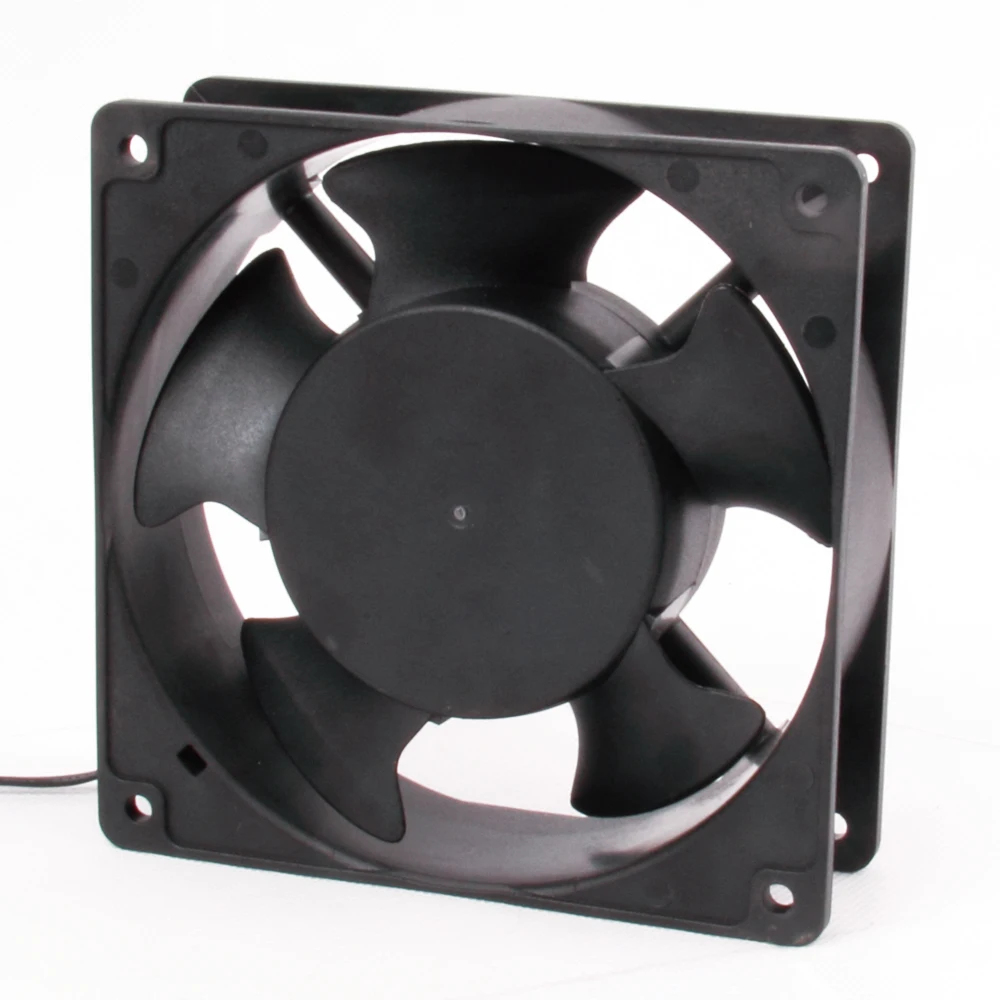

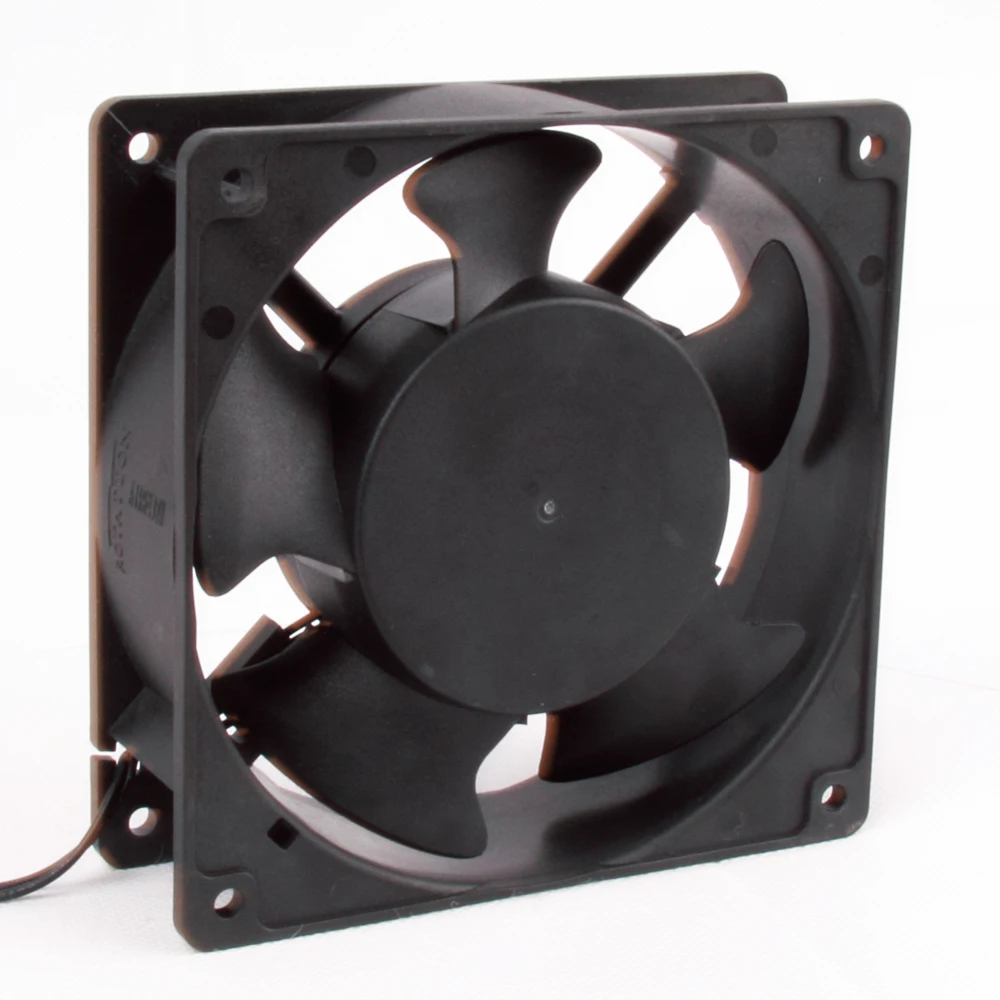

220V EC fan 12038 120mm Pop plastic frame energy saving cooling fan in china

Brand:Yun-Fan  YUNFAN POWER CO.,LIMITED

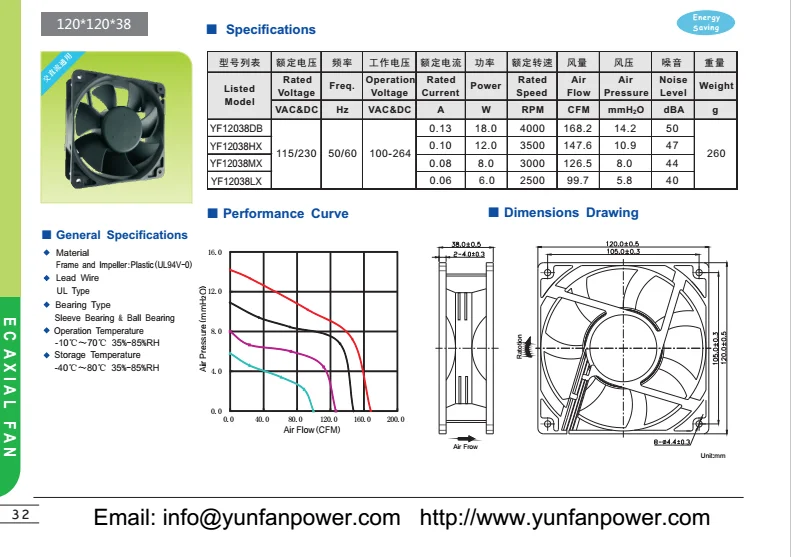

Model: EC Fan 12038

Size:  120x120x38mm

Voltage:110V/240V/380

Speed: 2000-2600 (R/min)

Weight: 230 (g)

Bearing type:Ball & Sleeve

Life time:Ball type 50000 hours,Sleeve type 30000 hours

Safety: Impedance Protected

Termination: Terminals or Lead Wire

Function :  FG\RD\PWM\Soft Start













2.COMPANY PROFILE







3.Packaging and ship







4.CONTACT US



SHENZHEN YUNFAN POWER CO.,LIMITED

http://www.yunfanpower.com

http://www.yunfanpower.en.alibaba.com

Emil:  black(at)yunfanpower.com

Skype: blackvip1000

Tel:0086-(0755)32925935

Phone:0086-13480187585

FAQ



Q1: Are you a factory or trading company ?

A1: Yes,We are the factory.



Q2: What is DC Fan and AC fan?

A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.

         AC fan is power by AC voltage,always is 110V,220V and 380V.



Q3: How to choose a AC fan?

A3:  1 size of the fan                   samples:8025 (80*80*25mm)

         2 Voltage                                           115V/220V/380V

         3 current                                            0.15A

         4 speed                                              2500RPM

         5 air flow                                             18CFM

         6 noise                                                30dBA

         7 bearing type                                     ball or sleeve

         8 two wire or three wire                        2wire

         9 cable length                                      100mm

         10 connector                                       molex 2564

         11 function                                          FG\RD\PWM\Soft Start ......

Q4: What is the delivery time?

A4:  Sample lead time:3-5 days

          Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)

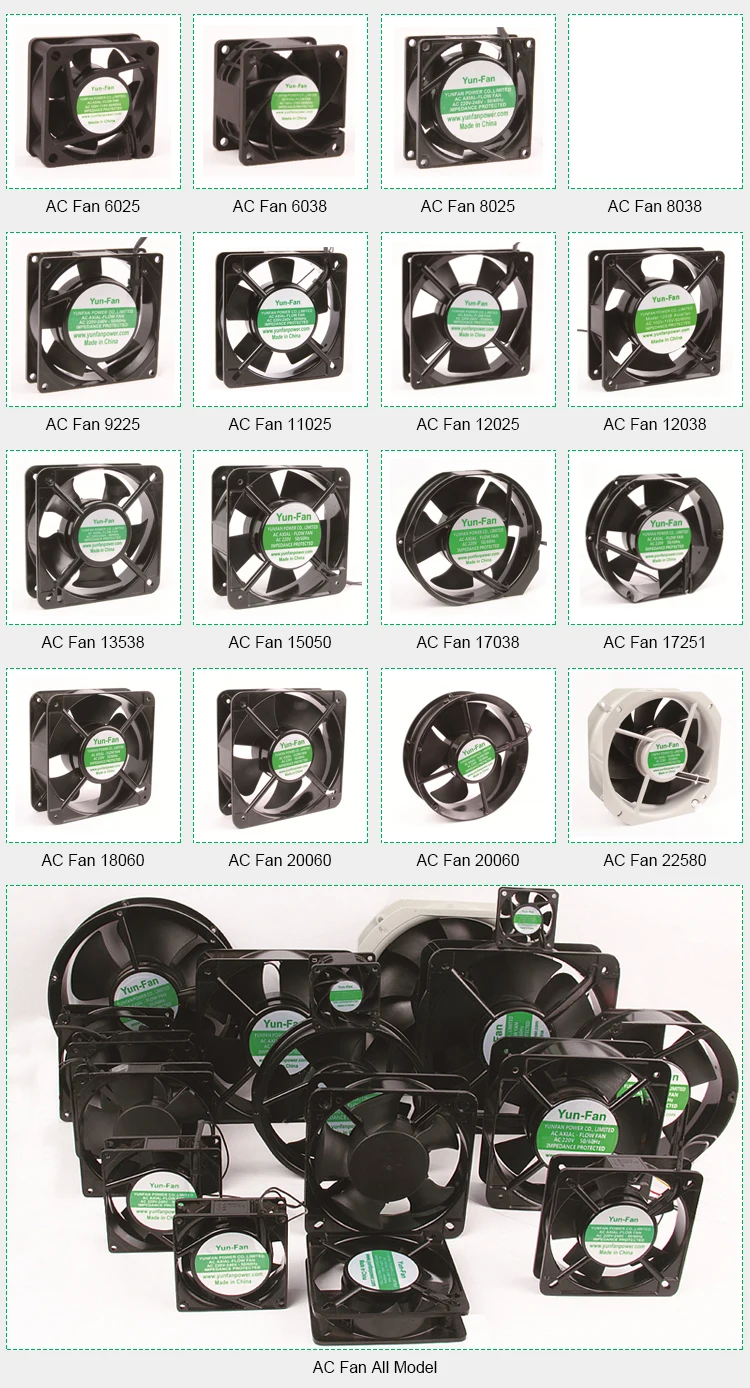

Q5: Can you tell me the normal AC fan Model?

A5: 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm

        120*120*25mm 120*120*38mm

        150*150*50mm 172*150*51mm 172*150*38mm

        220*220*60mm 254*89mm
