BAOTENG T2-Pre-insulating Nylon Copper cable lug Crimp Insulated SV spade crimp terminal

Supplier: Wenzhou Baoteng Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ada Chen
Price: $5.00 / >=10 bags
Min. Order: 10 bags

Click here to contact

Product details

Application:	Low Voltage;	Type:	Insulation Sleeving;
Certification:	CE,ROSE;	Wire Size:	0.5-1.5mm /1.5-2.5mm /2.5-4mm/ 4-6mm;
Packaging Detail:	1st.100 pcs per Bag 2nd.10 bag per Box 3rd.25 box per Cartoon;	Place of Origin:	Zhejiang China;
Brand Name:	Baoteng;	Supply Ability:	50000000 Piece/Pieces per Month;
Port:	Ningbo;	Imax:	19A;
Contacts:	Ada;	Rated Voltage:	220V;
Tensile Strength:	10.4Mpa;	Model Number:	RV;
Material:	PVC, Copper&Brass;	Type:	Crimp Terminal;
Connect type:	Ring;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

BAOTENG T2-Pre-insulating Nylon Copper cable lug Crimp Insulated SV spade crimp terminal

banner

Product Description

Cable size;0.5~1.5mm2(A.W.G.22~16) max current;Imax=19A material;purple copper thickness;0.75mm

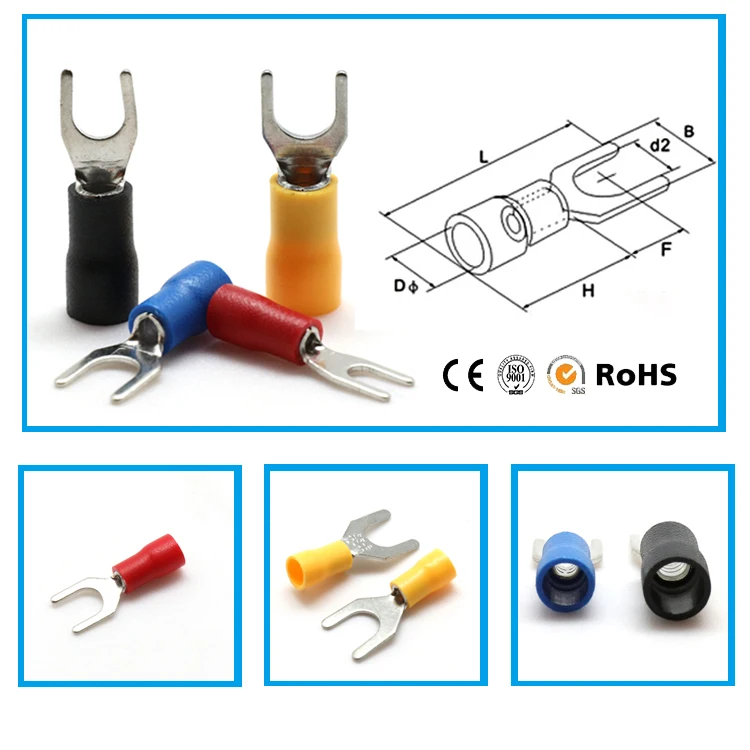

Item No	USA screw	screw dia.d2(mm)	Dimension(mm)					color
Item No	USA screw	screw dia.d2(mm)	B	L	F	H	Dφ	color
SV 1.25-3	#4	3.2	5.7	21.2	6.5	10	4.3	red
SVS 1.25-3.5	#6	3.7	5.7	21.2	6.5
SVL 1.25-3.5	#6	3.7	6.4	21.2	6.5
SVS 1.25-4	#8	4.3	6.4	21.2	6.5
SVM 1.25-4	#8	4.3	7.2	21.2	6.5
SVL 1.25-4	#8	4.3	8.1	21.2	6.5
SVS 1.25-5	#10	5.3	8.1	21.2	6.5
SVL 1.25-5	#10	5.3	9.5	21.2	6.5
SVS 1.25-6	1\4	6.4	9.5	21.2	6.5
SVL 1.25-6	1\4	6.4	12	27.2	11
Cable size;1.5~2.5mm2(A.W.G.16~14) max current;Imax=27A material;purple copper thickness;0.8mm
SV 2-3	#4	3.2	5.7	21.2	6.5	10	4.9	blue
SVS 2-3.5	#6	3.7	5.7	21.2	6.5
SVL 2-3.5	#6	3.7	6	21.2	6.5
SVS 2-4	#8	4.3	6.4	21.2	6.5
SVM 2-4	#8	4.3	7.2	21.2	6.5
SVL 2-4	#8	4.3	8.1	21.2	6.5
SVS 2-5	#10	5.3	8.1	21.2	6.5
SVL 2-5	#10	5.3	9.5	21.2	6.5
SVS 2-6	1\4	6.4	9.5	21.2	6.5
SVL 2-6	1\4	6.4	12	27.2	11
Cable size;2.5~4mm2(A.W.G.14~12) max current;Imax=37A material;purple copper thickness;1.0mm
SV 3.5-3	#4	3.2	5.7	24.8	7	13	6.2	black
SV 3.5-4	#8	4.3	8	24.8	7
SV 3.5-5	#10	5.3	8	24.8	7
SV 3.5-6	1\4	6.4	12	28	12.1
SV 3.5-8	5\16	8.4	12	33.7	13.7
Cable size;4~6mm2(A.W.G.12~10) max current;Imax=48A material;purple copper thickness;1.0mm
SV 5.5-3.5	#6	3.7	8.3	2.2	7.5	13	6.7	yellow
SVS 5.5-4	#8	4.3	8.3	25.2	7.5
SVL 5.5-4	#8	4.3	9	25.2	7.5
SV 5.5-5	#10	5.3	9	25.2	7.5
SVS 5.5-6	1\4	6.4	9	25.2	7.5
SVL 5.5-6	1\4	6.4	12	31.2	12
SV 5.5-8	5\16	8.4	14	30	11.5

BAOTENG T3-Pre-insulating Nylon Copper cable lug Crimp Insulated SV spade crimp terminal

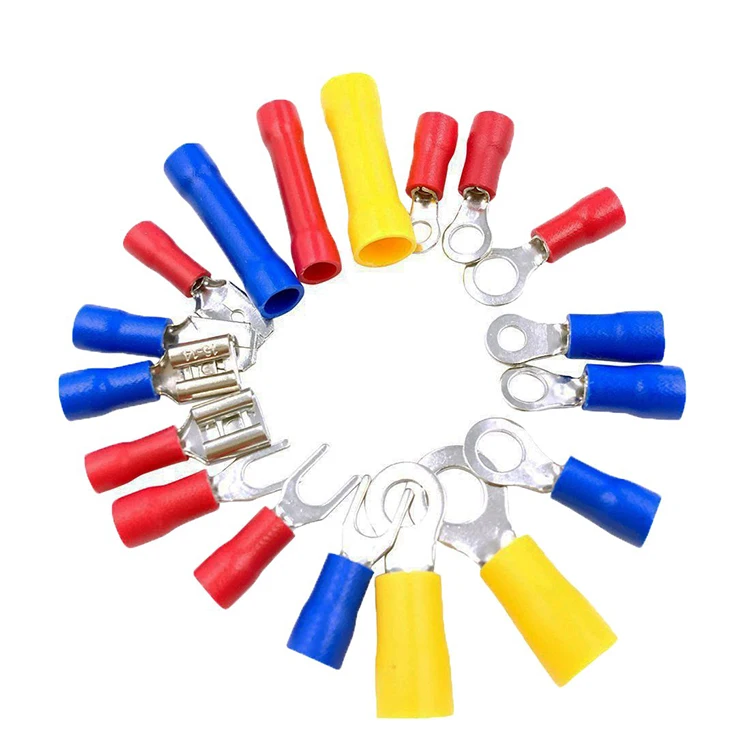

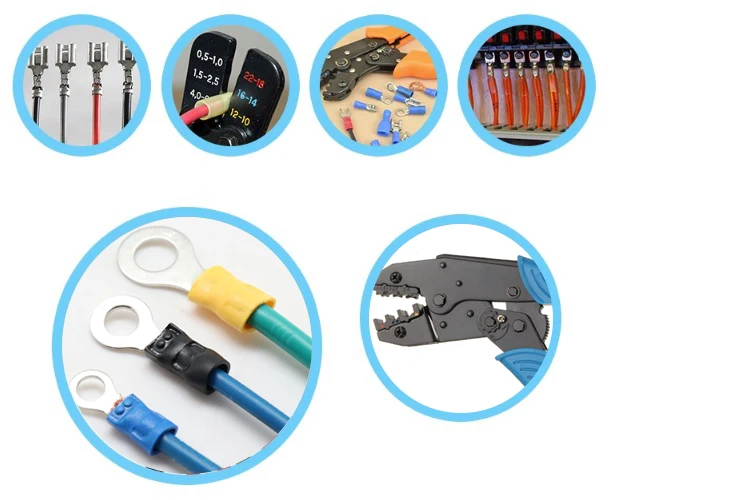

Application scenario

Company Information

FAQ

1. Are you a factory?
We are the manufacturer, we have 10 years experiences in this field. also we establish the trading company to make easy export.

2. What is MOQ?
No limit.

3. How long is the delivery time?
It depends on the quantity.
For samples or regular items in small qty ,we promise to sent in 1-3 days. Most have in stock.
For mass production, such like 20ft container we promise to sent in 15-30 days.

4. How about the payment terms?

We accept PayPal, west union and T/T.

5. Which shipping method do you provide?
For samples or small orders, goods will be sent by express.
For regular orders, goods can be sent by air or by sea, just according to your demand.

6. How can we get the samples?Is it free?
We provide free samples by express, but you need pay the express charge or make samples collection at your side.

7. What's the price?
Different items different market will be different cost, we will keep to give best and competitive price for each customer.

8. How do we know you are a reliable supplier?
Wenzhou Baoteng has own manufacture for more than 10 years of Specializing in various of terminals and connector.
