Ultra thin magnetic head 1mm 1 track 2017

Supplier: Shenzhen Effon Ltd.
Region: Guangdong, China
Contact: Mr Gerry Yu
Price: $35.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Inductance:	55mh;	Single gross weight:	0.2 KG;
Place of Origin:	Guangdong China;	Delivery Detail:	3 days after payment;
Single package size:	20X10X8 cm;	Selling Units:	Single item;
Use:	card reader magnetic head 1mm;	Recording Density:	210BPI;
Brand Name:	Postech;	Tape Speed:	7.5;
Package Type:	10 pieces in one box;	Read Output:	mVp-p;
Width:	4.8mm;	Thin:	1.1mm;
DC Resitance:	280ohm;	length:	7.7mm;
Track:	1;	Model Number:	Postech;

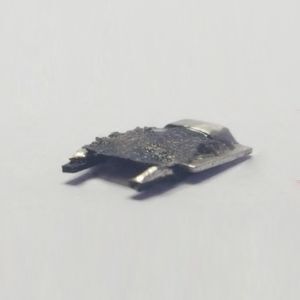

1mm 1 trk magnetic head

1.1mm - THIN 4.8mm - WIDTH 7.7mm - LENGTH

280 OHM

Note: Because of the protection layer applied over the coil, the thickness can vary with + 0.1mm

Magnetic Head Full Specifications:

Inductance	mH	55
DC Resitance	Ohm	280
Recording Density	BPI	210
Tape Speed	IPS	7.5
Read Output	mVp-p	15min
Insulation	Mohm	20(100v DC)
Track Width	mm	1.5

This 1 track magnetic head, when used with any of our magnetic card readers, can record the data on the magstripe card when the card reading swiping is made. If the card reading swipe was interrupted, recovering the data on the magstripe tracks depends entirely of the magnetic stripe card reader and NOT of the magnetic head.

The magnetic head only records the signal provided by the magstripe on the card and transmits the data to the magnetic card reader.

In this case, this head can read only one track from the magstripe card. The tracks that can be read from the magstripe depends of the position of the head. It can read the track 1, track2 or track 3 depending how it is placed.

Please note that the magnetic head if sold separately or within a combo deal will not come with any rail that the card reading swipe can be made on, so the rail it's the client responsability.

Products are in stock, Mix order acceptable!!

Better discounts for bulk order!!

Packaging & Shipping

Packing Style:

1)One piece of card reader magnetic head in one plastic bag.

2)Well protected.

Shipping methods:

1.DHL, FedEx, UPS, EMS, etc.

2.Sample is in stock can be delivered in 1 day.

3.Wholesale delivery time is 3-6 days.

4.Tracking number will be sent to customer after goods delivered.

5.We'll keep customers reported about the shipping condition.

Our Services

Paymenterm:

We accept T/T, Western Union, Money Gram,paypal.

Quality warranty:

Warranty information

This product is guaranteed to be free from defects in materials and workmanship for 30 days since the date of purchase. We will without charge, repair or replace at our option, any product returned for warranty work and found to be defective by us.

VERY Important!!! Please note that we test every magnetic head before being sold and we make sure that they are in perferct working condition. Even though we have tried to protect it as much as possible by applying a protection layer over it, it is still a 1mm thin magnetic head, so please be very careful not to break the connection pads when soldering the wires on it. After that encapsulate it in a hard epoxy to make sure the connection pads won't break. Our company will NOT replace any products if damaged by the client!
