Portable Bluetooth Mobile Phone NFC smart chip card Reader MCR02

  • Supplier: Shenzhen Effon Ltd.
  • Region: Guangdong, China
  • Contact: Mr Gerry Yu
  • Price: $20.00 /piece
  • Min. Order: 1 piece
Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Packaging Detail:Export Carton;
Interface:USB;Compatibility:IOS, Android;
Application:Clothing store supermarket convenience stores;Color:White;
Card thickness:About 0.75mm;Model Number:MCR02-BL;
Card Type:IC Card, Magnetic Card;Type:CF Card,Memory Stick Card,MMC Card,SD Card,SM Card,XD Card;
LED lights:Charging status display red,green charging full display.;Interface:Micro usb, Bluetooth;
Delivery Detail:Sample in stock, 1 day for quantity;Battery capacity:120mAh;
Supply Ability:100000 Piece/Pieces per Month;Place of Origin:Guangdong China;
Brand Name:Unique;Port:Shenzhen;
Installation:External;Card Slots:All in 1 / Multi in 1;
Feature:2 in 1 Card Reader With Bluetooth;Keywords:Magnetic & Chip Card Reader;

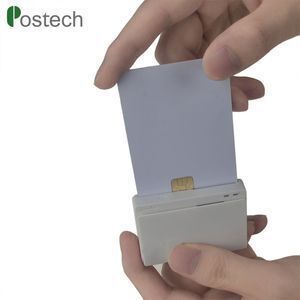

MCR02-B is a combination magnetic and IC card reader. It is via Bluetooth connection with a mobile communication device,with a simple mobile payment system that allows mobile devices to read a variety of magnetic stripe cards and contact IC card,such as credit cards, debit cards,signature gift cards, membership cards,driving license, ID card badge etc., can be quickly and securely complete the payment.



Specification
 Technical Data
 Interface: Bluetooth
 Optional accessories:

 Dual mode:Support BLE protocol , SPP protocol, support IOS, Android 2.3 above

 systems

 Single-mode:Support BLE protocol, support for IOS, Android 4.3 system
 Color: Blue ,white (color, logo can be customized)
 Material ABS plastic
 Weight 30g
 Size 60mm(L)*13.4mm(W)*40mm(H)
 Operating temperature: 0 ℃ ~ 55 ℃ (32 ℉ ~ 131 ℉)

 Battery And Power
 Battery Capacity: 120mAh Rated voltage: 3.3V DC
 Peak Current: 70mA Operating Current: 25mA
 Standby Current: 10mA Standby time: 10h

 Magnetic card
 tracks: 1/2/3 track selectable
 Head life: About 1 million times
 Card speed: 3 to 60 inches / sec
 Card Compatibility: ISO 7811

 IC card
 Card Compatibility: ISO7816- (1-4) (T = 1, T = 0)
