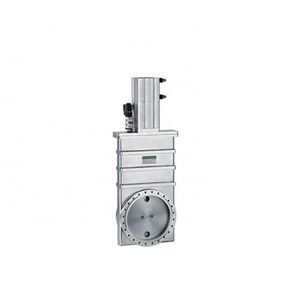

EVP brand factory price pneumatic drive stainless steel CCQ-250 high vacuum gate valve
-
Supplier: Shanghai EVP Vacuum Technology Co., Ltd. -
Region: Shanghai, China -
Contact: Mr Lany Shen -
Price: $1692.00 /piece -
Min. Order: 1 piece
Product details
| Applicable Scope(Pa): | 105~1.3*10-4; | Flange Standard: | GB4982; |
| Brand Name: | EVP; | Application: | Vacuum application; |
| Place of Origin: | Shanghai China; | Install Position: | DN<300 for any,DN≥300 for vertical; |
| Valve Leak Rate(Pa.L/S): | ≤1.3*10-6; | Single gross weight: | 50 KG; |
| Power: | Pneumatic; | Medium Temperature(℃): | -25~+80(Seal Material: chemigum); |
| Pressure: | Vacuum; | Diameter(DN): | DN63; |
| Model Number: | CCQ; | Package Preview: | https://sc02.alicdn.com/kf/HLB1HKr.acnrK1RkHFrdq6xCoFXak.jpg_640x640.jpg; |
| Selling Units: | Single item; | Structure: | Angle; |
| Model: | CCQ-63; | Medium Temperature(℃)2: | -30~+150(Seal Material: viton); |
| Package Type: | Standard package suitable for all countries : CCQ vacuum gate valve used in popular roots water ring vacuum pump unit gate valve; | Single package size: | 250X200X400 cm; |
| Port Size: | KF/ISO/CF; | Applicable medium: | air and noncorrosive gases; |
| Air Source Pressure(MPa): | 0.4~0.8; | Material: | Stainless Steel; |
| Media: | Gas; | Temperature of Media: | Normal Temperature; |
EVP brand factory price pneumatic drive stainless steel CCQ-250 high vacuum gate valve
Product Description
| INFORMATION OVERVIEW | |
| Basic information: 1) Model: EVP CCQ pneumatic ultra-high vacuum flapper valve 2) Applicable Scope(Pa): 105~1.3x10-7 3) Valve Leak Rate(Pa.L/S):DN≤200for≤1.3x10-7 |
Packaging Details: Standard package suitable for all countries Packing dimension: L x W x H= 250 x 200 x 250 mm Net weight / Gross weight: 50 kg / 60 kg | |
Certificates: ISO9001:2000 / SGS / CE Lead Time: Have many models in stock, if not, it is about 15 days when less than 5 units, about 30 days when less than 10 units. If urgent, please tell us. | More Items, please scan: |
Please click here for more information!
+

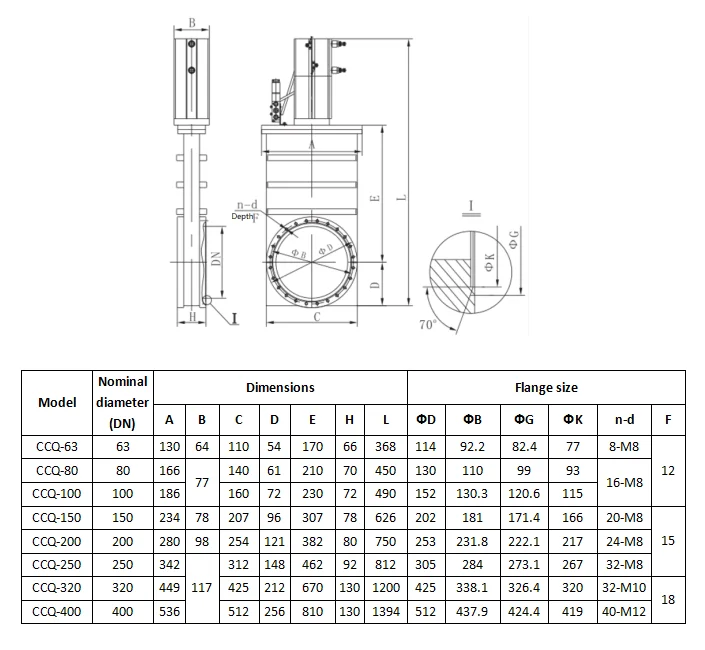

SPECIFICATIONS: Pneumatic High Vacuum Damper Valves |
Please click here for more information!
