Full Automation Pillow Filling Production Line Pillow Filling Machine

Product details
Name:Pillow Filling Production Line;Supply Ability:10000 Set/Sets per Year;
Port:Qingdao;Place of Origin:Shandong China;
Material:PP fiber and ball fiber;power:32 KW;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;capacity:200-300kg/h;
Brand Name:Qinyuan;After-sales Service Provided:Video technical support,Online support;
Warranty:1 Year;bale opener Size:5200*1500*2400;
port:Qingdao;Packaging Detail:standard packaging;
Warranty:One Year;Color:Blue or other;
Type:production line;Voltage:380v50hz 3phase;

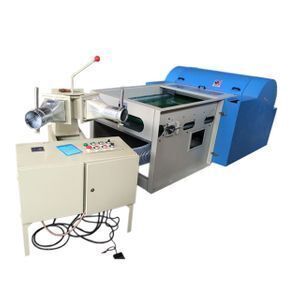

Full Automation Pillow Filling Production Line Pillow Filling Machine





Product Description



Automatic Ration Pillow Filling Line was latest developed on the basic of Korea and Taiwan technology. It was made up of Fiber Opening Machine, Ball Fiber Machine,Feeding, Two Fiber filling Blowers. High efficiency, 15~20 times compare hand filling. Our machine can Filling long fiber, short fiber,0.7D~15D fiber,leftover material, plastic particle,foam particle,buckwheat, etc. Make the feeling of products more puff, more soft, more elastic, more smooth.



It is most advanced machine in the whole market which have excellent outlook, easily operation, more economic, high efficiency. Our Fiber Opening Machine can open fiber 15~20% more compare others



Features: The machine adopts the fully closed style to form a beautiful appearance,

and also ensure safety and stability of operations, and facilitate hoisting and installation. It opens PP cotton and cotton with the pull force caused by converse run of roller card clothing, which can also open PP cotton, cotton, blanket, plush, leftover of fabric



Model Name:

Technical data

Size (mm)

UNIT
(SET)

Remark

bale opener

4KW

5200*1500*2400

1


entirety wohle machine

is frequency

conversion and

 the speed can been adjusted

Hjzxj-900 model pillow

filling machine

 4.25KW

2550*1500*1100

1


1.capacity :200-300kg/h
2.6D-15D ,two-dimension

and three-dimensional ,

medium altitude A silicon cotton

Looseness Rate can get 100%


Connect the fan

2.2KW

850*850*850

1



Ball Fiber Machine

11KW

2200*950*3650

1


capacity for Ball Fiber

 is 120-150kg/h
appoint the all fiber

 for  6D-7D*32MM*51MM

Three - dimensional

 hollow silicon cotton

Ball Fiber fan

2.2KW

1000*850*1500

1



Hopper feeder

1.5KW

1900*1700*1950

1



return and filling fiber fan

3KW   3KW

1200*950*1500

2


capcaity is 8kg/minute

for one fiber filling pipe

control panel



850*650*1500

1



This production line can both using for PP fiber and ball fiber ,A type of dual-use

  Total power for a complete prodcution line :32 KW

air compressor

5.5KW

1300*650*1400

1


it need the client configuration

themself,

if the client need we provide,

then will add the cost,

and ask the additional charges

Packaging & Shipping





FAQ



1.How long does the machine guarantee?

We guarantee one year for non-human damaged factor.



2.After service?

Engineers available to come to your factory for supplying training and installation.



3.How to control the quality?

We have professional Engineer and inspector make sure that each part of machine working well before shipment.



4.How to contact you?

You could contact us via TM, Skype, Whatsapp, Wechat, QQ, Email



5.What about payment term?

T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc..



6.Are you a manufacturer or Trade company?

We are a professional manufacturer holding our own International Trade Department,for that we can better understand customer's needs and offer a reasonable price.
