Place of Origin: | Shanghai China; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ; |
Brand Name: | Mingguan; | Port: | Shanghai; |
Basic weight: | 20-80g/square meter; | Thickness: | 0.15-0.4 mm; |
Thickness: | 0.15-0.4 mm; | Packaging Detail: | Standard export seaworthy packing customized.; |
Size: | Customized Size; | Port: | Shanghai; |
Width: | Customized; | Payment Terms: | L/C,D/A,D/P,T/T; |
Type: | Qualitative; | Usage: | Industrial liquid filter paper; |
Material: | Polyester; | Material: | Polyester; |
Color: | White; | Supply Ability: | 1000000 Square Meter/Square Meters per Month; |
Sample: | Available; |

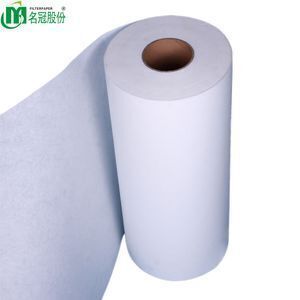

Wholesale Mingguan High Efficiency HighStrength Industrial Liquid Filter Paper
In the grinding oil, there are always mixed with oil slick, impurity, slag, etc. It should be cleaned regularly, or the grinding efficiency and lifespan will be reduced largely and finally influence the equipment grinding efficiency. At the same time, when the grinding oil was covered by the closed oil reservoir, the anaerobion will easily breed, this will result in grinding oil invalid. So, to clean the oil slick, impurity, slag out from the grinding oil is very important, in this way we can not only keep a good grinding oil performance but also expand the grinding oil life largely. At last, reduce the grinding oil cost, improve grinding life and efficiency!
Features:
1. High tensile strength, small vibration coefficient, advanced technique, molding reinforcement, all these help the paper filter performance strong and reliable and make the initial strength and using strength in accordance.
2. High filter accuracy and efficiency, made by polyester fiber and polymer film. Can meet different grade of accuracy.
3. Worked well at -40℃~120℃, no influence about the grinding oil chemical property and will not be corroded by grinding oil.
4. The filter material can bear the mechanical reaction force and temperature influence, its breaking strength will not be reduced even when it is wet.
5. The hole size is bigger while with smaller resistance, at the same time a strong carrying capacity.
Lubricating oil filter emulsion oil filter paper
Technical Data Sheet | |||||||
Liquid Filter Paper | |||||||
Type | Weight (g/m2) | Thickness (mm) | Air Permeability (L/m2·S) | Tensile Strength (N/5cm) | Color | Material | |
TD | MD | ||||||
MGPT-20 | 20±3 | 0.18±0.03 | 5500-6500 | ≥3 | ≥40 | White | PET |
MGPT-30 | 30±3 | 0.23±0.03 | 3700-4700 | ≥7 | ≥80 | White | PET |
MGPT-40 | 40±3 | 0.27±0.03 | 2500-3500 | ≥15 | ≥100 | White | PET |
MGPT-50 | 50±3 | 0.35±0.05 | 2300-3300 | ≥18 | ≥120 | White | PET |
MGPT-60 | 60±5 | 0.45±0.05 | 1900-2900 | ≥20 | ≥140 | White | PET |
MGPT-80 | 80±5 | 0.4-0.46 | 1000-2000 | ≥35 | ≥230 | White | PET |
MGPT-N30 | 30±3 | 0.22-0.26 | 3200-4200 | ≥4 | ≥45 | White | PET |
MGPT-N40 | 40±3 | 0.25-0.29 | 3200-4200 | ≥4.5 | ≥48 | White | PET |
MGPT-N60 | 60±5 | 0.32-0.36 | 1900-2900 | ≥7 | ≥85 | White | PET |
MGPT-N80 | 80±5 | 0.44-0.48 | 1400-2400 | ≥8 | ≥130 | White | PET |
MGPT-N100 | 100±8 | 0.48-0.53 | 1200-2200 | ≥20 | ≥200 | White | PET |
MGPT-D90 | 90±5 | 0.42-0.46 | 1100-2100 | ≥40 | ≥250 | White | PET |
