High quality New Condition Multiple-yarn 2-108 Spindles Thread Winding Machine

Supplier: Changshu Silk Road Import & Export Co., Ltd.
Region: Jiangsu, China
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	Full-automatic Bobbin Winder Machine;	Port:	shanghai,ningbo;
Voltage:	3 phased 400V±10%;	Supply Ability:	1000 Set/Sets per Month;
Winding speed:	100-1000m/min;	Spindle:	2-108 Spindles Hank;
Application Field:	Flat Film;	Weight:	350kg;
Brand Name:	single horse;	Certification:	ISO9001;
Place of Origin:	Jiangsu China;	Automatic Grade:	Automatic;
Application:	winding yarns;	Power(W):	1100W motor power of cleaner;
Name:	AUTO THREAD WINDING MACHINE;	Dimension(LWH):	230011001500mm;
Shape of sewing thread:	PINEAPPLE;	Warranty:	1 Year;
After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Condition:	New;
Payment Terms:	L/C,D/A,D/P,T/T;	Color:	White;
Memory Capacity:	upon request;	Scope of application:	Coils Winding Expert;
Function:	Cone Yarn Bobbin Winding Machine;	Packaging Detail:	standard wooden cases;
Production Capacity:	1000m/min;

HAVE YOU MEET GSJX

WALK WITH KNITTER

PROFESSIONAL OF KNITTING MACHINERY

With 25 years of product upgrade,and 25 years of service improvement,

Guosheng is now at the very forefront of world's smart manufacturer of knitting machines.

It undertakes the task of improving the performance of the whole products,

And join hands with the knitter to constantly make significant contributions to the standardization

of the world's knitting machine.

Product Description

Product Application

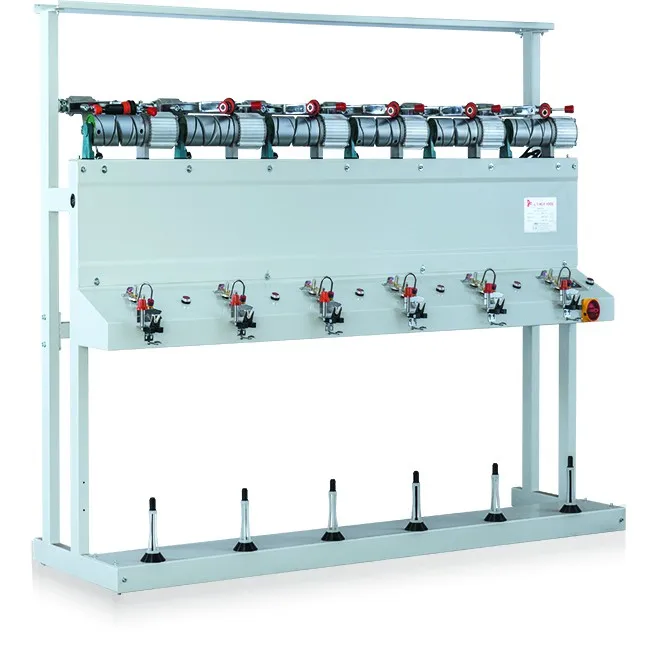

Durable computer control hard winder used for cone to cone hard package,shuttle loom,warper,hosiery machine.The winding speed is controlled by computer,max:1000m/minute.It has easy adjusting radial anti patterning system.The advanced yarn clearing and tension system with photoelectric yarn detecting can avoid knotting and twisting for yarn.Precise and senstive speed testing system can ensure even winding length(weight).The electric turning waxing machine can ensure the waxing quatity and evenness.It's quite suitable for winding yarn of cotton,flax,silk,chemical fiber.

Equipments:

Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)

Parameters:

1. Drive: every spindle per motor
2. Winding speed: Cotton: about 800M/min, Fiber: about 600 M/min (Density: 0.2-0.4g/cm3)
3. Has function of Anti-Hard-Edge and Electronic Anti-Stack.
4. Package Dia≤ 220mm; Take-up length: 152mm;
5. Each spindle with length counter;
6. Advanced control panel;

SPECIFICATIONS FOR THREAD WINDING MACHINE
MODEL	GM-DT18
GROOVED DRUM	Length 182mm,O/D 82mm,pitch 2.5,symmetrical 0º
TAKE UP	Taper 3º30′,4º20′,5º57′cylindrical170*
CONFIGURATION	2or6 Heads/Section single side,12 Heads/Section gouble side
MAX.SPEED	1000m/min
TRAVERSE	Standard:147mm
YARN FRAME BALANCER	The winding pressure can be controlled by balance of spring
MAX.PACKAGE	250mm
START/STOP	By single spindle operation panel and button
RADIAL ANTI PATTERNING SYSTEM	The anti pattern parament is controlled by computer
ABSORBED POWER	90W per head at max.speed
POWER SUPPLY	220V 50/60HZ
DRIVE SYSTEM	Single head control alone,2 heads to 108 heads is acceptable
DETECTOR	Infrared ray has the function of stop motion for broken yarn,full bobbin and empty spin
MOTORIZATION	Each spindle has one inverter motor,and each side has most 54 spindles
YARN CLEARING ASSY	Consisits of the up,down blades and adjustable holder,can adjust size according to be the number of yarn
BLOWING SUCKING CLEANER	1100W motor power of cleaner.24 spindles can be matched.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Every machine you buy, we take care of every product like a child

To make sure the product you buy is safe during transportation,we use vacuum package to prevent moisture and rust.In addition,we provide complete packaging methods according to your requirement,and provide convenience for loading,uploading and storage as well as save time for checking and delivery.Make sure you can receive proper product at a proper time.
