Hot sale XCMG SANY 25 ton QY25K-II STC250 new or used second hand crane in dubai

Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Leah Li
Price: $50842.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty:	1 Year;	UNIQUE SELLING POINT:	High operating efficiency;
Rated Lifting Moment:	961KN.m;	Year:	2012;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;	After-sales Service Provided:	Engineers available to service machinery overseas;
Basic boom:	10.7m;	Maximum turning speed:	2.5r/min;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Condition:	Used;
Longest boom:	34m;	Color:	Yellow;
Feature:	Truck Crane;	Packaging Detail:	container roro bulk break shipment;
Application:	Construction;	Hydraulic Cylinder Brand:	other;
Brand Name:	xcmg;	Rated Loading Capacity:	25000kg;
Certification:	CE/ISO9001;	Max. Lifting Height:	42.15m;
Place of Origin:	Jiangsu China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Engine Brand:	other;	Make:	xg;
Supply Ability:	100 Unit/Units per Month;	Span:	6m;
Port:	shanghai;	Hydraulic Pump Brand:	other;
Hydraulic Valve Brand:	other;

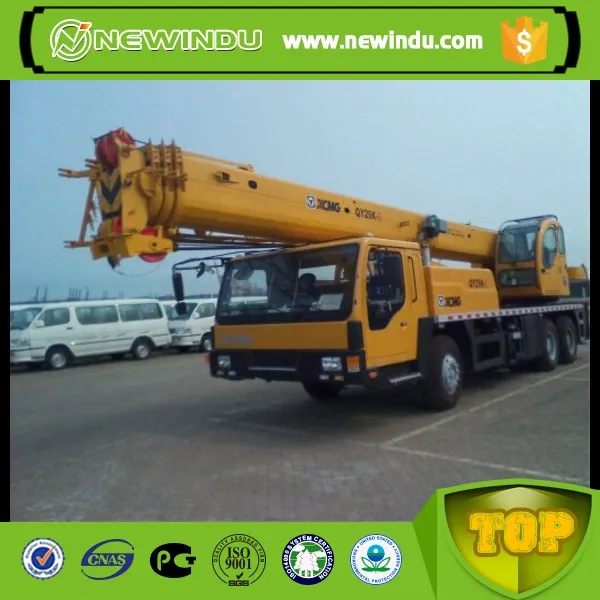

Hot sale 25 ton QY25K-II used second hand crane in dubai

Contact

Sales Manager

Carol Liu

Newindu E-Commerce (Shanghai) Co.,Ltd.

Skype: Carol Liu

Wechat/QQ: 1550152545

Mobile/whatsapp: +86-15026835867

Feature

More excellent performance

• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.

More reliable quality

• Adopt the classic K series jib telescoping technique, working safer and more reliable.
• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.
• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.
• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.
• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.
• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.

Easier to operate

• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having good slight mobility.
• Optimize the control levers, which is easier to operate.
• The cab adopts orthodrome front windscreen, having wider operating views.

Parameters

Item			Unit
Dimensions	Total length	12650	mm
	Total width	2500	mm
	Total height	3380	mm
Weight	Operating Weight	29400	Kg
	Front axle load	6200	Kg
	Rear axle load	23200	Kg
Power	Engine model	SC8DK280Q3/WD615.329
	Engine power ratings	206/2200 312/2200	Kw(r/min)
	Engine torque ratings	1112/1400 1160/1400	N.m(r/min)
Travel	Max.travel diameter	75	Km/h
	Min.turning diameter	21.5	m
	Min.ground clearance	275	mm
	Approach angle	16	.
	Departure angle	13	.
	Max.gradeability	30	%
	Fuel consumption of 100km	37	L
Driving Parameters	Max.total lifting capacity	25	t
	Min. working radius	3000	mm
	Turning radius at swing table tail	3.065	m
	Max.lifting torque	1010	Kn.m
	Basic boom lifting length	10.7	m
	Longest boom lifting length with secondary arm	42.15	m
	Longest boom lifting length	34.19	m
	Outrigger longitudinal distance span	5.14	m
	Outrigger lareral distance span	6	m
Working speed	Elevation duration for secondary boom	75	s
	Elevation duration for fully extended boom	100	s
	Max.rotation speed	≥2.5	r/min
	Max.speed for main winch	≥120	m/min
	Max.speed for auxiliary winch	≥120	m/min

Our services

1.Offer you the high quality products with a low price, quick delivery, and professional after-sale service.

2.A twelve-month-period or 2000-hours warranty for any machine exported from us.

3.Spare parts are available to be supply at any time.

As excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,dump truck,road roller,forklift,reach stacker,and also including the spare parts......Any machine that you want to get more detailed information., let me know. Sincerely hope we have chance to cooperate with you.

Kindly contact me if any questions. Look forward to hearing from you.
