Dimension(L*W*H): | 560*260*550mm; | Place of Origin: | Jiangsu China; |

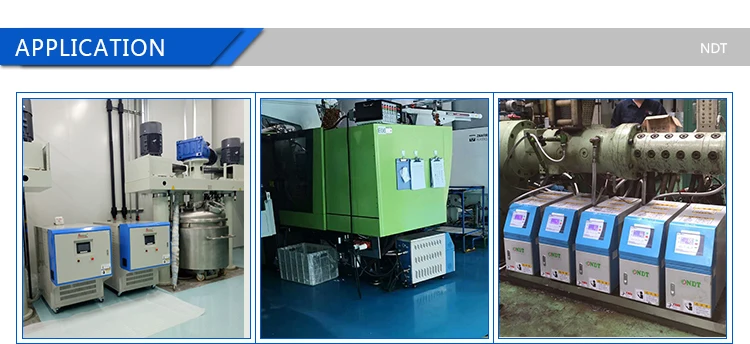

Heat Transfer Medium: | water; | Application: | Injection Molding Machine; |
Power(W): | 15KW; | Weight: | 60KG; |
the input power: | 16.5 kw; | Condition: | New; |
Single package size: | 56X26X55 cm; | Temperature Range: | 10℃-120℃; |
Certification: | ISO9001 /CE; | Selling Units: | Single item; |
Single gross weight: | 60 KG; | Type: | Temperature Machine; |
Package Type: | wooden case packing; | Color: | Customized; |
Voltage: | 3N~380V/415V 50HZ; | After-sales Service Provided: | Online support; |
Applicable Industries: | Energy & Mining,plastic rubber industry; | Pump power: | 1.5 Kw; |
Brand Name: | NDETATED; | Controller: | microcomputer; |
Temperature Control Accuracy: | ±1℃; | Warranty: | 1 Year; |
Internal Piping Size: | G3/8; | Cooling Method: | Directly Cooling; |
Pump Flow: | 110L; | Package Preview: | https://sc01.alicdn.com/kf/H4adc289d0b014c9d873e2d7f09084cdf3.jpg_640x640.jpg,https://sc02.alicdn.com/kf/Hd133b7fe60c64ae5b886ebf3938b032cS.jpg_640x640.jpg; |
Models | Unit | NTW-75L | NTW-200L | NTW-600L | NTW-1200L | NTW-1800L |
The electric power | KW | 3 | 6 | 9 | 12 | 18 |
The input power | KW | 3.37 | 6 75 | 9.75 | 13.5 | 21 |
Temperature control range | Water inlet temperature+10℃——120℃ | |||||
The power supply | 3N-380V/415V 50HZ | |||||
Cooling way | Direct cooling (single) | |||||
The medium | Tap water | |||||
Mold joint | In/Out pipe | G3/8 | ||||
Two into two out | Four into out | |||||
The water pump | (KW) | 0.375 | 0 75 | 0.75 | 1.5 | 22 |
(Kpa) | 240 | 300 | 300 | 360 | 420 | |
(℃) | 0.375 +10-------+130 | |||||
(L) | 35 | 63 | 63 | 110 | 186 | |
Overall dimensions | (L) | 520 | 520 | 560 | 560 | 750 |
(W) | 235 | 235 | 260 | 260 | 310 | |
(H) | 520 | 520 | 550 | 550 | 540 | |
Weight | kg | 42 | 46 | 51 | 60 | 85 |
