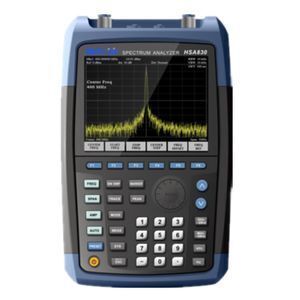

Portable 3.6GHz Handheld spectrum analyzer

Supplier: Beijing W&f Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Angela Feng
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	BeiJing;	Model Number:	HSA830;
Place of Origin:	Anhui China;	Brand Name:	WF;
Commodity:	Portable 3.6GHz Handheld spectrum analyzer;	Packaging Detail:	Black Soft Bag then packed with carton box;
Frequency Range:	9KHz-3.6GHz;	Resolution Bandwidth Range:	10Hz to 500kHz(1 to 10 continuous),1MHz,3MHz;
Supply Ability:	50 Set/Sets per Week;	Frequency resolution:	1Hz;
Payment Terms:	T/T,Western Union;

Portable 3.6GHz Handheld spectrum analyzer

Product Description

Features and Benefitd

6.5 inch LCD Display
User-Friendly Menu
Li-ion Battery for 6000mAH inside
PC support for remote control
Support to integrate to user systems for further R&D develop
USB Interface
SCPI Support

Specification

Frequency Range		9KHz-3.6GHz
Frequency resolution		1Hz
Readout Accuracy		± (frequency standard reading × frequency reference accuracy +1% × span +10% × RBW +0.5 × [span / (sweep points -1)] +1 Hz)
Frequency reference stability (10MHz)	Aging rate	<1ppm/year
	Temperature stability	<0.5ppm (15°C~35°C)

Resolution Bandwidth Range (RBM)
Range (<1KHz Optional )		10Hz to 500kHz (1 to 10 continuous),1MHz,3MHz
Selective	RBW≤500kHz	<5:1
Accuracy		<5%
VBW		10Hz~3MHz

Sweep time
Setting range100Hz≤SPAN≤3GHz	10ms to 3000s
Span=0 Hz	1ms to 3000s
Sweep mode	continuous,single

Frequency conter
Resolution	1Hz,10Hz,100Hz,1kHz
Counter uncertainty	±(frequency read value×frequency reference accuracy +counter resolution)
Total Amplitude Uncertainty	±1.5dB

Displayed Average Noise Level(10Hz RBW)
Frequency	Preamplifier off	Preamplifier on
100kHz	-90dBm	-110dBm
1MHz	-120dBm	-140dBm
100MHz	-122dBm	-145dBm
500MHz	-125dBm	-145dBm
1000MHz	-122dBm	-140dBm
1.4GHz	-120dBm	-138dBm
1.8GHz	-123dBm	-140dBm
2.2GHz	-121dBm	-138dBm
3.0GHz	-120dBm	-137dBm
Phase Noise		-80dBc/Hz @ 10kHz(typ.)
		-90dBc/Hz @ 30kHz(typ.)
		-115dBc/Hz @ 1MHz(typ.)

Amplitude
Maximum safe input level	Average continuous power	+27dBm
Max input DC voltage		50Vdc
Input attenuator range		+7dBm
1dB Compression point		0 to 39dB,steps:3dB

Spurious response
TOI		+13dBm
SHI		+30dBm
Input related spurious		<-85dBm
Residual response(Inherent)		<-60dBc

Input/Output
RF Input	Type-SMA female(50Ω)
USB	Version 1.1
LAN Interface	Headset jack
AM/FM	RJ-45,10 Base-T,100 Base-T
Reference Input/Output	BNC female,10MHz

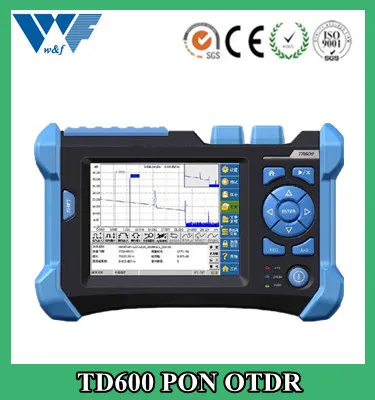

Hot-Selling

Packaging & Shipping

Orders would be shipped within 3 working days upon receiving cleard payments when stock lasts. Delievery time depends on the shipping method, the following is the typical time:

Faster courier(Such as EMS, DHL, UPS...) would take 3-7 days;
Air mail(Hong Kong air mail, Singapore air mail) would take 10-20 days.
Package might be delayed occasionally by the Customs or the carrier, we sincerely hope each customer could give a few more days when this happens
