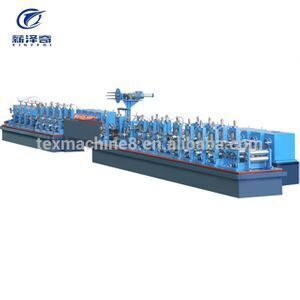

Automatic welded steel pipe production line/ERW tube mill machine

Supplier: Jiangsu New Victor Industrial Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jing Lin
Price: $90000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	60-600KW;	Pipe Material:	Carbon Steel;
Place of Origin:	Jiangsu, China (Mainland);	Place of Origin:	Jiangsu China;
Weight:	5-15T;	Production Capacity:	1-120m/min;
Type:	Pipe Production Line;	Diameter:	6-273mm;
Single package size:	10X2X2 cm;	After-sales Service Provided:	Field installation, commissioning and training;
Application:	Energy Supply Pipe;	Selling Units:	Single item;
After-sales Service Provided:	Engineers available to service machinery overseas;	Dimension(LWH):	Machine Configuration;
Working type:	Full Automatic;	Power(W):	60-600KW;
Product name:	Automatic welded steel pipe production line/ERW tube mill machine;	Single gross weight:	60 KG;
Applicable Industries:	ERW pipe making;	Warranty:	2 Years;
Key Selling Points:	Long Service Life;	Condition:	New;
Voltage:	220/380/415/420/440V;	Certification:	CE ISO;
Voltage:	380V;	Package Type:	sea-worthy packaging;

Automatic welded steel pipe production line/ERW tube mill machine

Product Description

Accumulating more than 50 years of professional manufacturing experience,New Victor specializes in supplying VZH-12 ~ VZH-273 ERW tube mill line.

Basic Configuration

{steel strip} --- un-coiler --- (opener & straightener & pincher & leveler) --- strip-head shearer & butt welder station --- vertical cage accumulator or horizontal spiral accumulator loop --- forming M/C (main driving unit + flattening unit + breakdown section + fin pass section +seam guiding stand + high frequency induction welding system + squeeze welding roller stand + outside scrafing unit + horizontal ironing stand) --- emulsion cooling section --- sizing M/C (main driving unit + sizing section + speed testing unit + straightener + pull-out stand) --- CNC flying saw under computer control --- conveyor table.

Technical Parameters

Model	Tube O.D (mm)	Wall Thickness (mm)	Square&Rectangle (mm)	Thickness (mm)	Speed (m/min)
VZH-12	φ4~12	0.2~0.5			30~120
VZH-16	φ6~16	0.2~0.8			30~120
vzh-20	φ7~20	0.2~1.0			30~120
VZH-25	φ9~25.4	0.25~1.2			30~120
VZH-32	φ10~31.8	0.25~1.5	8X8~25X25	0.25~1.2	30~120
VZH-32Z	φ10~31.8	0.3~2.0	10X6~30X20	0.3~1.5	30~100
VZH-40	φ12.7~40	0.3~1.8	10X10~30X30 20X10~40X20	0.3~1.5	30~110
VZH-40Z	φ12.7~40	0.4~2.0	10X10~30X30 20X10~40X20	0.4~1.5	30~100
VZH-50Q	φ16~50.8	0.4~1.5	12.7X12.7~40X40 20X10~50X25	0.4~1.2	30~110
VZH-50		0.5~2.0		0.5~1.5	30~90
VZH-50Z		0.6~2.5		0.6~2.0	30~80
VZH-63Q	φ19.05~63.5	0.6~2.0	15X15~50X50 20X10~60X30	0.6~1.5	30~90
VZH-63		0.7~3.0		0.7~2.5	30~80
VZH-63Z		0.8~4.0		0.8~3.0	20~70
VZH-76Q	φ25.4~76.2	0.8~2.5	20X20~60X60 30X15~80X40	0.8~2.0	30~90
VZH-76		0.8~3.5		0.8~3.0	30~80
VZH-76Z		0.8~4.0		0.8~3.5	20~70
VZH-90Q	φ30~90	0.8~3.0	25X25~70X70 30X20~80X40	0.8~2.5	30~90
VZH-90		0.8~3.5		0.8~3.0	30~80
VZH-90Z		0.8~4.0		0.8~3.5	20~70
VZH-100Q	φ31.8~101.6	1.0~3.0	25X25~80X80 30X20~100X50	1.0~2.5	30~90
VZH-100		1.0~3.75		1.0~3.0	30~80
VZH-100Z		1.0~4.25		1.0~3.5	20~70
VZH-114Q	φ35~114.3	1.0~3.0	30X30~90X90 40X20~120X60	1.0~2.5	30~80
VZH-114	φ35~114.3	1.2~4.25	30X30~90X90 40X20~120X60	1.2~4.0	20~70
VZH-127Q	φ40~127	1.2~3.5	30X30~100X100 40X20~120X80	1.2~3.0	20~70
VZH-127	φ40~127	1.5~5.0	30X30~100X100 40X20~120X80	1.5~4.5	15~60
VZH-140Q	φ50~141.3	1.2~4.0	40X40~110X100 50X30~150X70	1.2~3.5	15~60
VZH-140	φ50~141.3	1.5~5.5	40X40~110X100 50X30~150X70	1.5~5.0	15~60
VZH-168Q	φ60~168.3	1.5~5.0	50X50~130X130 60X40~160X80	1.5~4.5	15~50
VZH-168	φ60~168.3	2.0~6.0	50X50~130X130 60X40~160X80	2.0~5.5	15~50
VZH-168Z	φ76.2~168.3	2.5~8.0	60X60~130X130 80X40~160X80	2.5~7.0	10~40
VZH-219Q	φ89~219.1	2.0~6.0	70X70~160X160 100X50~200X100	2.0~5.5	10~40
VZH-219		3.0~8.0		3.0~7.5	10~40
VZH-219		4.0~10.0		4.0~9.0	10~40
VZH-273	φ114.3~273	4.0~10.0	90X90~200X200 120X60~260X130	4.0~9.0	10~40
VZH-273Z	φ114.3~273	4.5~12.0	90X90~200X200 120X60~260X130	4.5~11.0	10~35

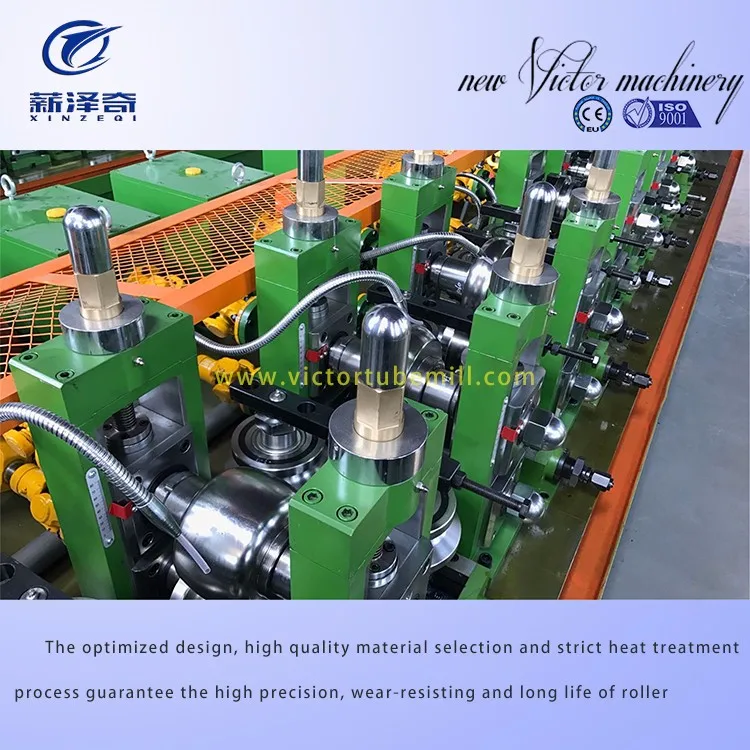

Detailed Images

Automatic welded steel pipe production line/ERW tube mill machine

Classic Case

VZH-168 ERW tube mill line in Palestinian

22 Steel pipe making lines in Iran

VZH-76H Roller quickly change type ERW tube mill machine in Cambodia

Our Services

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

Customized service

1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response.

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.

Link

Video on youtube:

https://www.youtube.com/channel/UC9bAo0AxozDAcJ7HYbHHtzw/videos

The official website:

www.victortubemill.com

If you want to know more information about the products,Please contact us, we will solve any of your problems and send you running vedio.
