Pipe Thickness: | 0.2~12mm | Pipe diameter: | 4~273mm |
Certification: | CE ISO9001 | Marketing Type: | Hot Products of 2022 |
Warranty: | 1 year | Type of machine: | Tube mill production line |
Packaging Details: | Seaworthy packaging | Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Thailand, Morocco, Kenya, Argentina, Colombia, Algeria, Bangladesh, South Africa, Kazakhstan, Nigeria, Uzbekistan, Malaysia, Australia |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | product name: | Steel Pipe/Tube Forming Machine |
After-sales service: | On-site installation and training | Video shipment inspection: | if |
Origin: | China | Core component warranty: | 3 years |
Health status: | new | Pipe shape: | Different sizes can be produced on one machine |
Port of shipment: | Shanghai port | Core components: | PLC, bearings, motors, water pumps |
Mechanical test report: | if | Weight (kg): | 3000 |
useful life: | over 30 years | Pipe material: | Carbon steel |
Control System: | PLC+man-machine interface+touch screen | Applicable industries: | steel pipe making machine |
Main selling points: | long lasting | | |

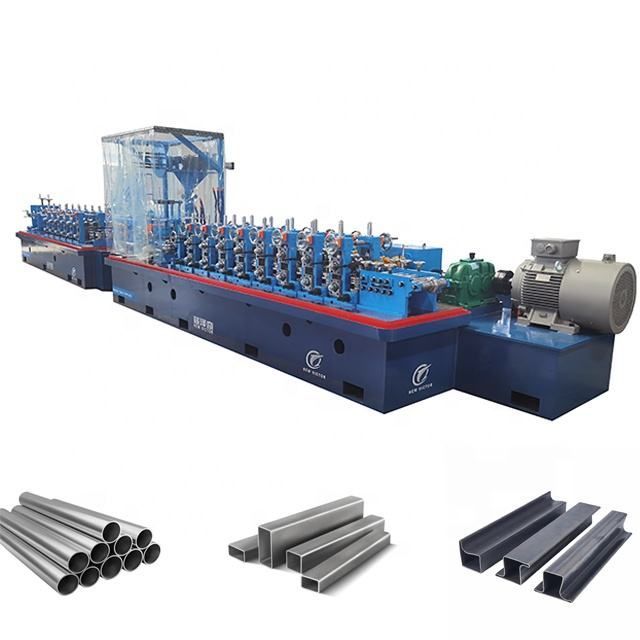

Tube mill forming, welding and sizing
Product Description

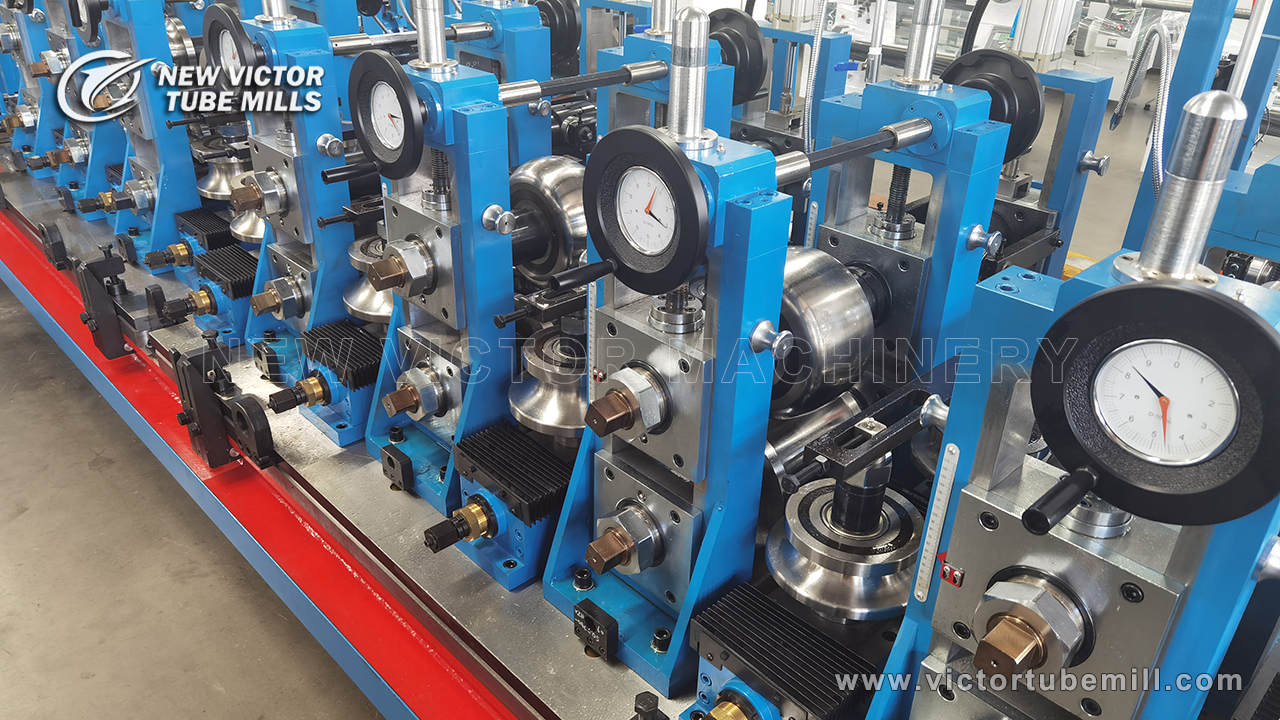

Tube forming department
The coils are continuously formed into a slotted tubular shape before welding. In-house roll mold design using COPRA Roll Form software and experienced design engineers ensures optimum forming pass and smooth material flow throughout the forming process. It is important to ensure that the edges of the coil are formed evenly to ensure that the weld seam is accurately presented on the welding roller. The forming section consists of an entrance side guide, a flattener, a dismantling section, converging rollers, and a fin passing section. The mill stand structure is heavy duty and precision machined to ensure mill precision and reliability.

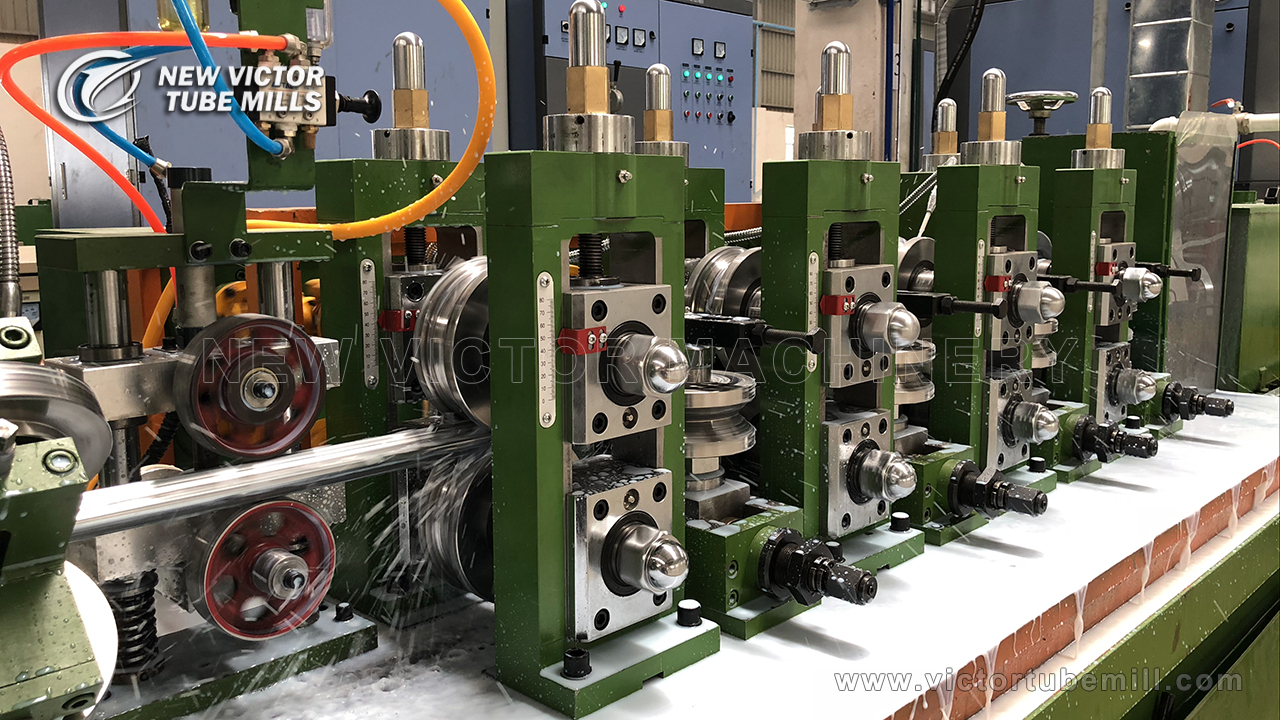

Tube Mill Forming Department
Pipe machine welding sectionThe welding section consists of a seam guide, squeeze roll stand, seam cleaning, seam ironer, cooling bath and optional internal seam cleaning. If necessary, an untwisting table can be installed between the cooling tanks to adjust the joint before sizing, especially for square and rectangular tubes.
Squeeze roll frame construction is heavy duty and precision machined to withstand the enormous separation forces in the weld area, yet make even the slightest adjustments with high precision.
Proper welding part setup and arrangement in relation to induction welding is very important to ensure an effective and efficient welding operation. Squeeze roll diameter, weld seam guide, welding coil, choke and choke cooling affect the rapid heating of the strip edge to be welded and are particularly critical for induction welding of small tubes up to 12.7 mm in diameter.

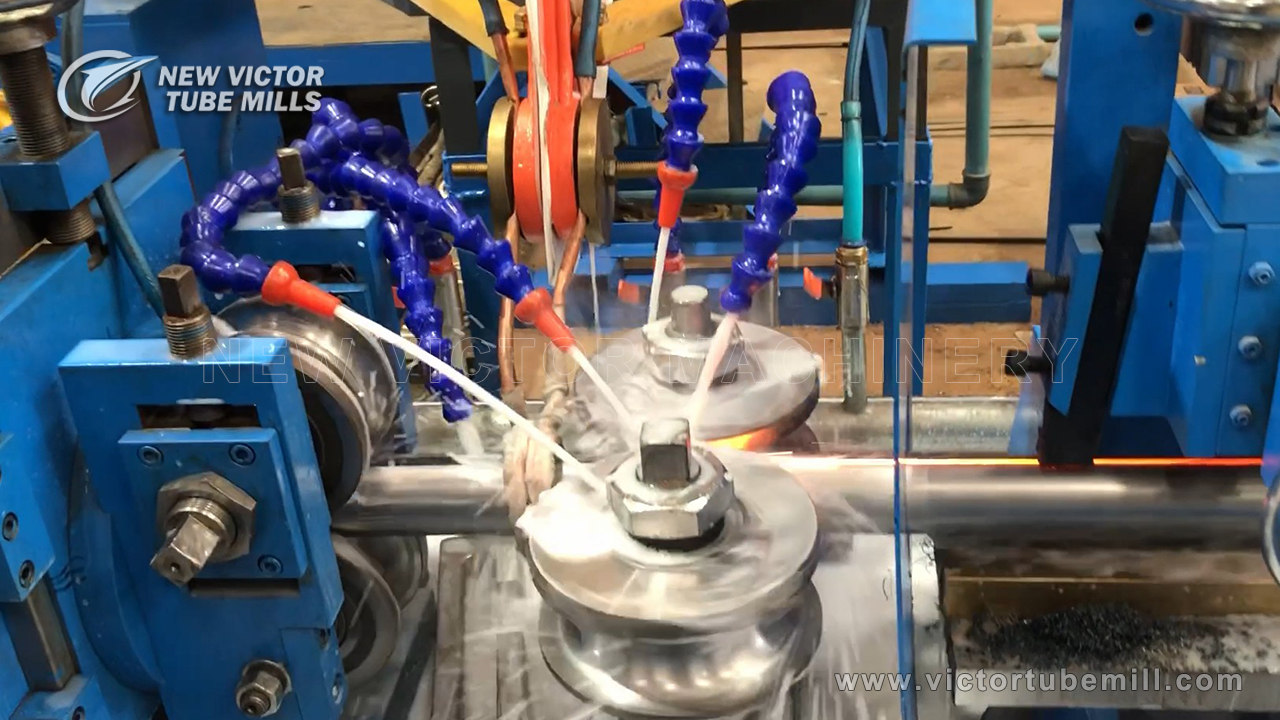

Tube mill welding section
Tube mill sizing section
The outer diameter of the welded pipe is uniformly reduced through the sizing section and its roundness reaches the required tolerance. For square and rectangular tubes, the sizing station gradually shapes the tube to the desired shape and tolerances. The sizing part is composed of driving sizing frame, side roll frame and Turkish head. For smaller tubes, additional straighteners are provided to reduce material stress and ensure straightness of the final product. The driven sizing frame and the side roll frame are similar in design and adopt a heavy-duty structure similar to the forming frame. The final process is the Turkey Head, which controls the final shape, tolerances and straightness of the pipe before it is cut.
Calibration section of tube mill
Jiangsu New Victor Industrial Co., Ltd. is a welded pipe production line manufacturer with a history of more than 30 years.We can provide a complete tube mill production line. We also have experience in turnkey projects.
Tube mill production line products
1. The inlet part of the tube mill
2. Horizontal cycle accumulator
3. Tube forming and sizing section
4. Flying saw cutting equipment
6. Automatic palletizing and packaging machine
Features of ERW tube mill:
Durable and non-deformable base
The thick steel plate is welded together as a whole, and tempered twice for more than 4 hours to ensure that the machine will not deform for a long time.
Stable Transmission System
Spiral bevel gear, drum gear coupling, gear teeth carburized and quenched, making the transmission system stable and efficient
And wear-resistant, with higher load capacity and lower noise
long bearing life
Equipped with a grease nozzle for bearing lubrication, which greatly improves the life of the bearing.
Automatic roller quick change system
Online automatic quick roll change system, change roll in 10 minutes and resume production in 20 minutes.
