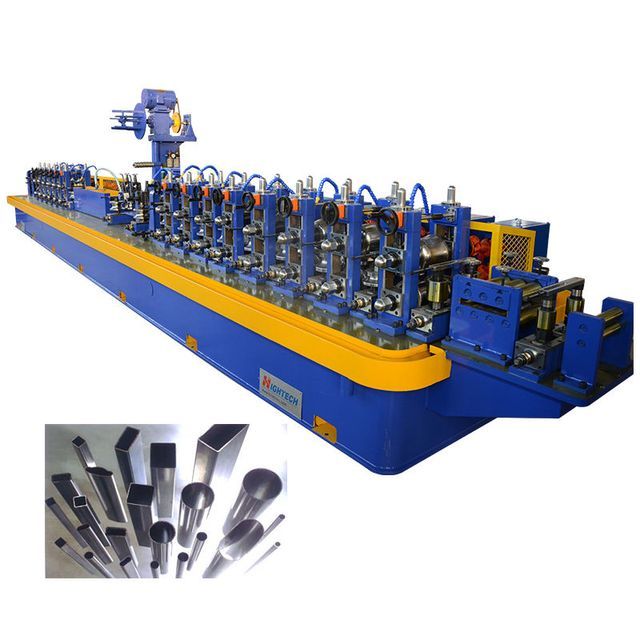

High frequency welding stainless steel round tube welding machine tube mill equipment

Supplier: Taizhou Hitech Nc Machine Tool Co., Ltd.
Region: Jiangsu, China
Contact: Mr Leon Zhu
Price: $140000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Showroom location:	not any
Local service location:	not any	Health status:	new
Strip width:	78-240mm (±0.2mm)	color:	Elective
Core component warranty:	1 year	Steel coil outer diameter:	800-1200
After-sales service provided:	ERW carbon steel square pipe machine, on-site installation, commissioning and training, on-site maintenance and repair services, online support, free spare parts, video technical support	Origin:	Jiangsu, China
Type of machine:	Tube mill production line	Main selling points:	long lasting
Function:	metal processing	machine tool:	Tube machine
payment terms:	L/C, D/P, D/P, T/T	Coil No.:	450-550
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Packaging Details:	ERW High Frequency Welding Stainless Steel Round Pipe Manufacturing Welding Pipe Machine Machine Equipment Plywood Box and Container Loading
Supply capacity:	Annual output of 100 stainless steel pipe welding machines	brand:	Hitech
After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Marketing Type:	normal product
Mechanical test report:	if	Applicable industries:	Retail,Construction Works,Other,Building Material Store
Video shipment inspection:	if	length:	4-8 meters
port:	Shanghai	Milling speed:	2-8m/min
type:	Tube machine

Product Description

Model	Welded pipe diameter (mm)	Welded pipe wall thickness (mm)	Welding pipe speed (m/min)	Main motor power (kw)	High frequency power (kw)
ZG16	8-25	0.25-1.0	30-100	30	60
ZG25	8-32	0.35-1.3	30-100	45	100
ZG32	13-50.8	0.5-2.0	30-90	110	150
ZG50	20-63.5	0.6-2.5	30-90	160	200
ZG60	25-63.5	0.8-3.0	20-80	185	250
ZG76	25-80	1.2-4.0	20-70	200	300
ZG90	32-90	1.5-4.5	20-60	110x2	400
ZG115	38-115	2.0-5.0	20-60	160x2	400
ZG165	80-165	2.0-6.0	15-50	200x2	500
ZG219	90-219	3.0-8.0	15-50	250x2	600
ZG273	185-273	4.0-10.0	15-40	250x1 185x2	800
ZG300	165-355	4.0-12.0	15-30	250x2 200x2	1200

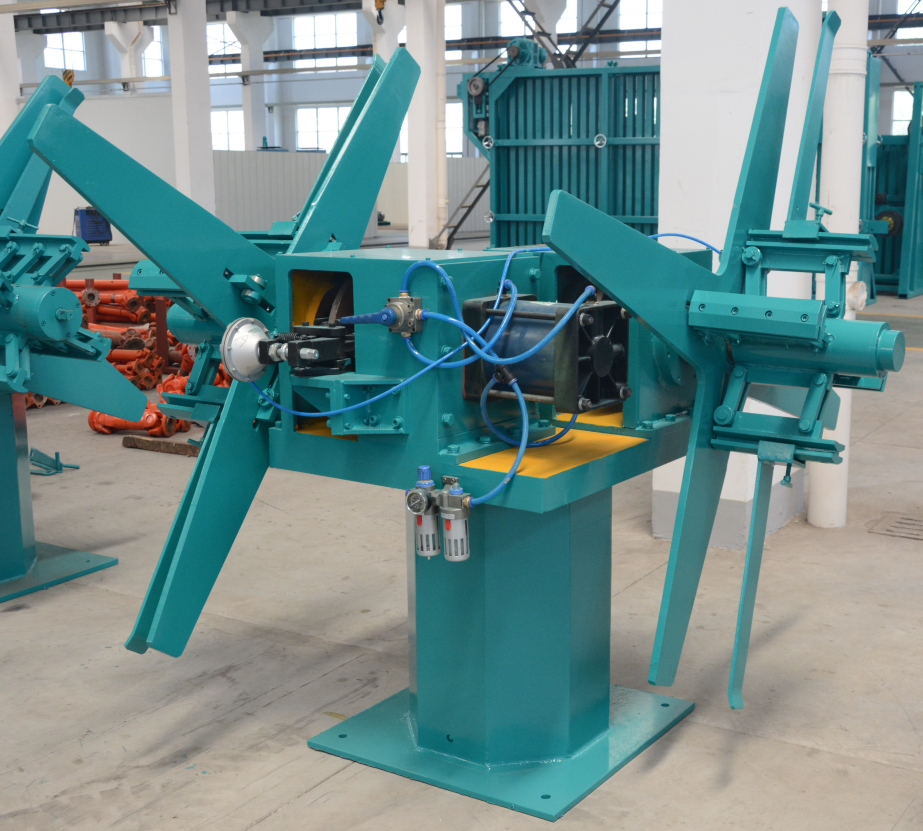

Uncoiler

360° rotary hydraulic expansion and tightening, to ensure that the steel coils are fed alternately, and the steel strips freely enter the stocker

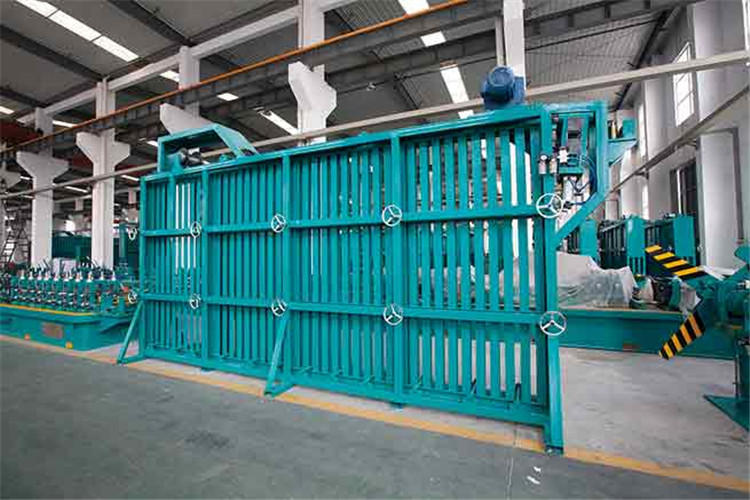

accumulator

Overview: There are two types of accumulators to choose from, generally the horizontal type is used for large lines, and the vertical type is used for small lines.

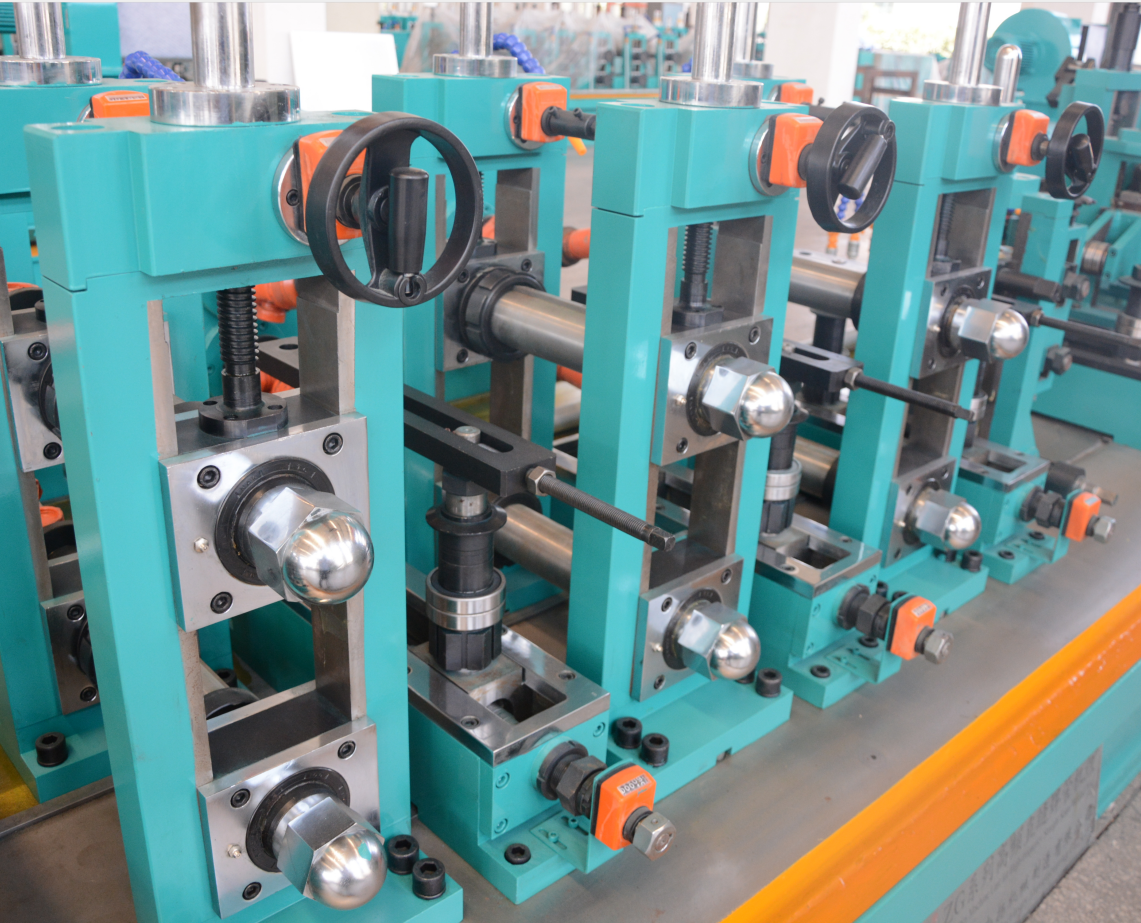

Molded parts

Mainly steel strip rough rolling forming and weld seam control

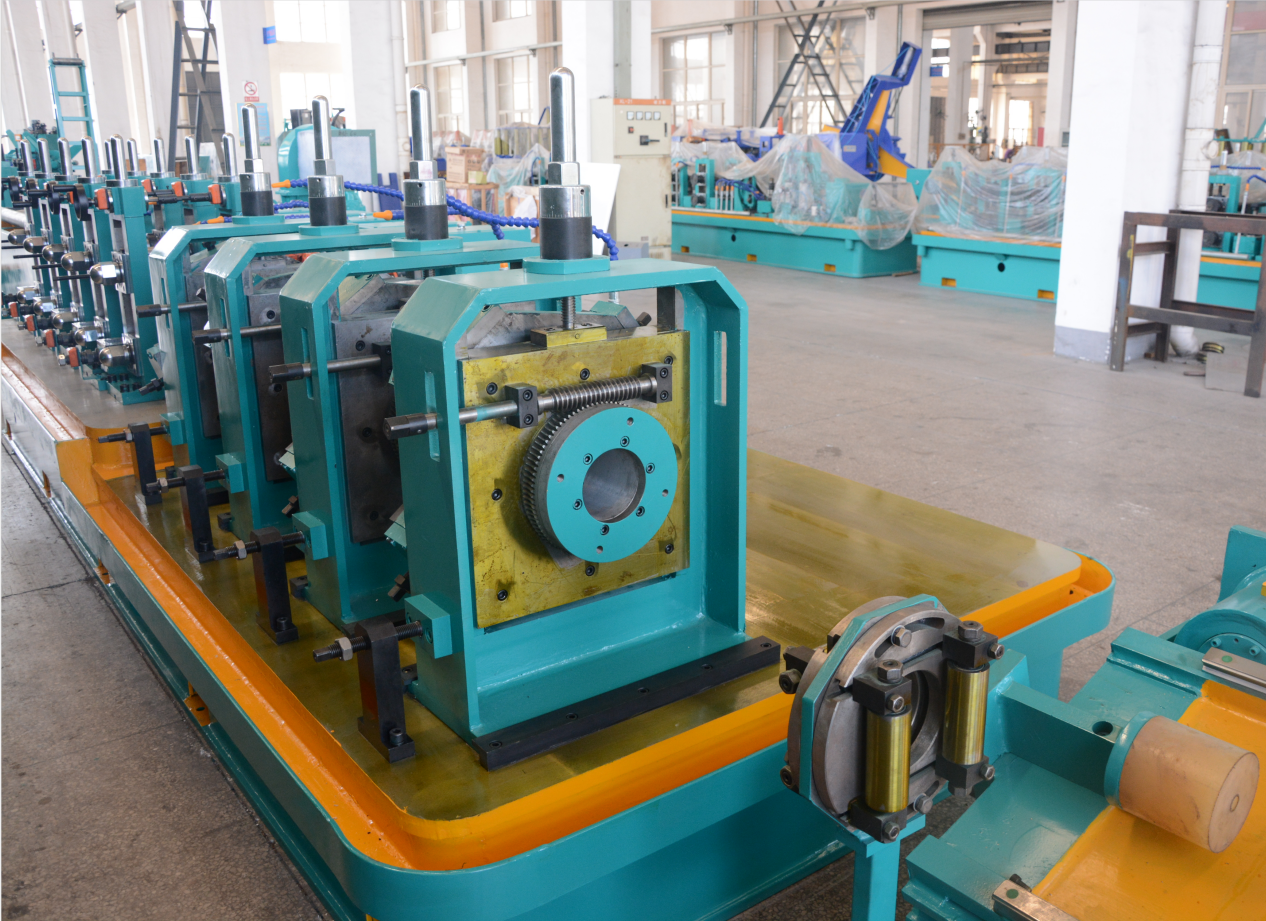

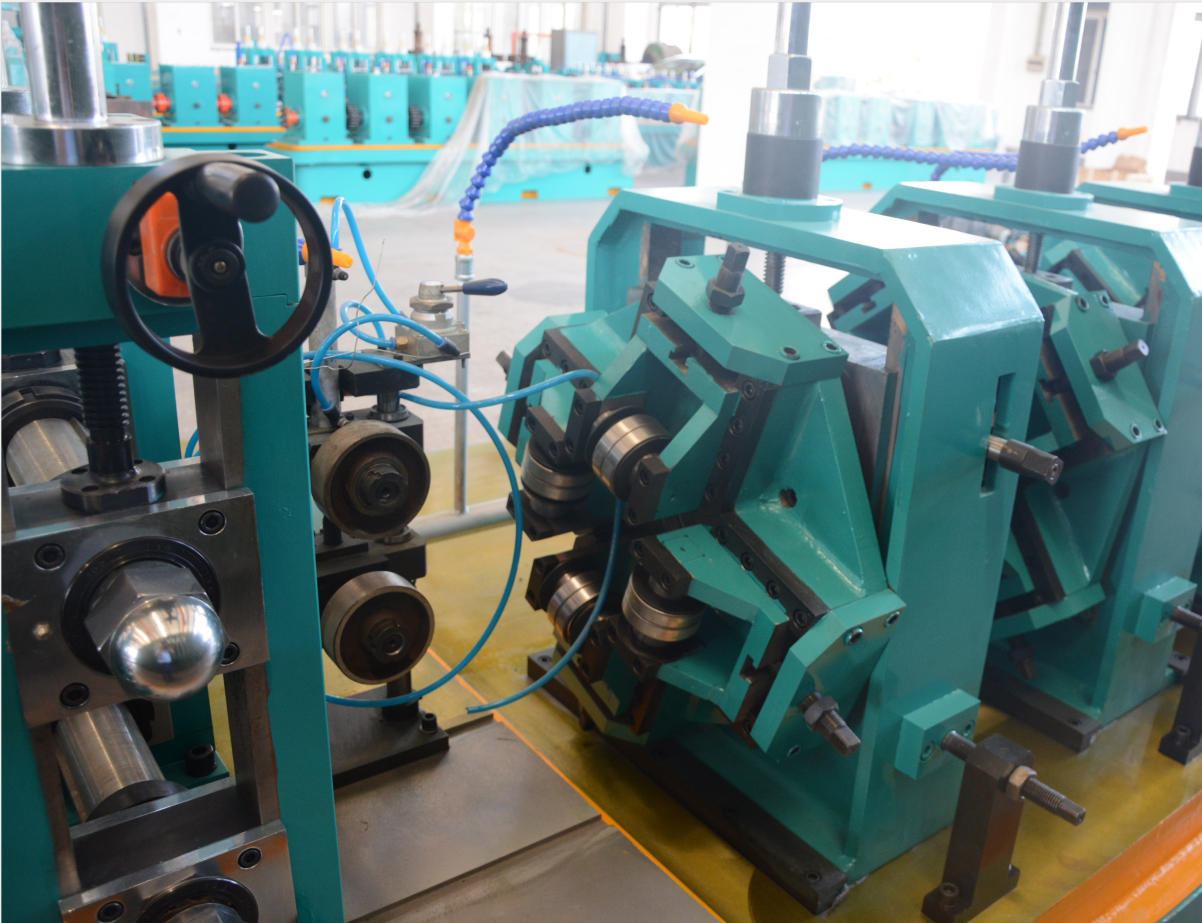

Sizing part

It is mainly to finely shape the pipe after welding and control the dimensional accuracy

turkey head

Mainly used for rough online straightening of finished pipes

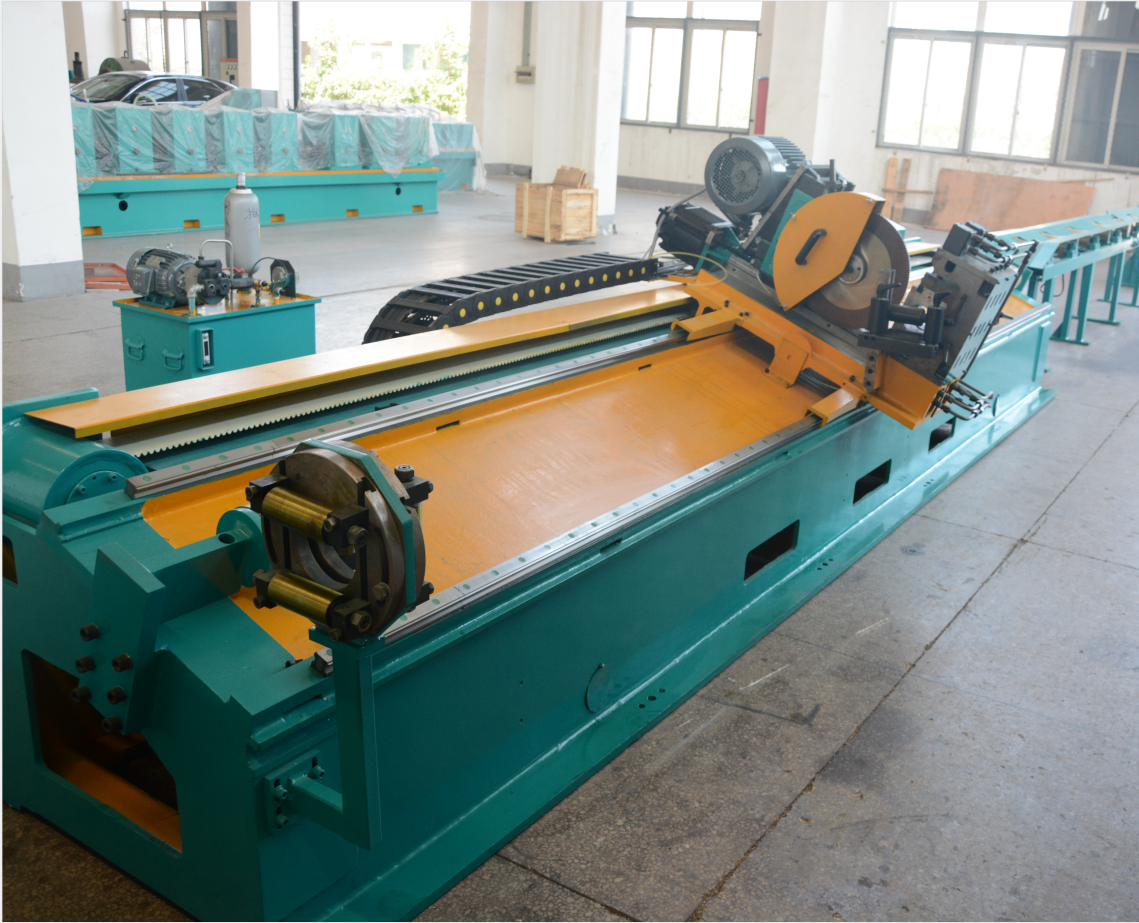

cold saw cutting

The CNC cold cutting flying saw has international advanced performance, full servo control, and is suitable for online moving high-speed cutting of various pipes.

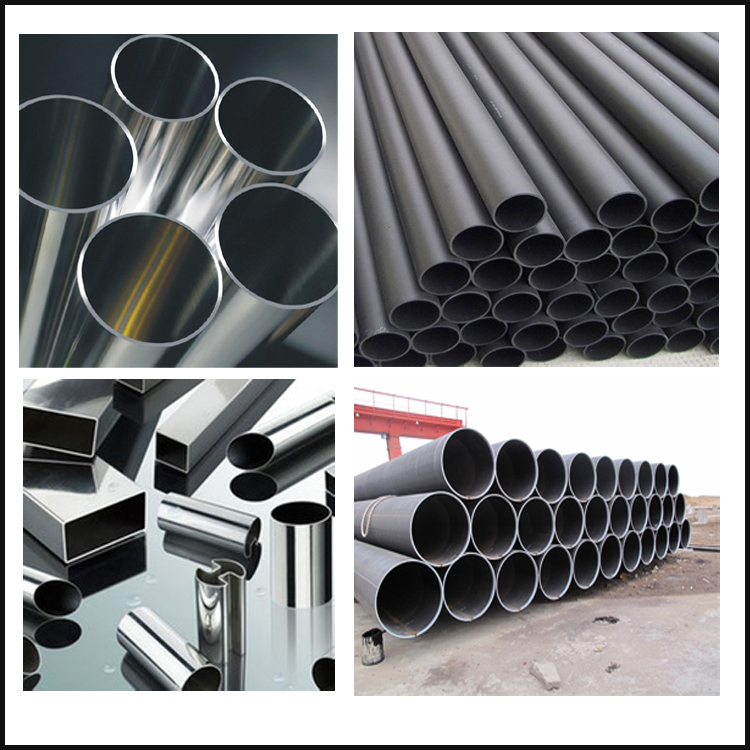

Application tube
