Creherit Dustproof High Airflow Hydrophobic eptfe Membrane

Supplier: Changzhou Creherit Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Candy Zhu
Price: $0.06 / >=30000 pieces
Min. Order: 30000 pieces

Click here to contact

Product details

Shape:	customization;	Power:	Solenoid;
IP Rate:	IP 68;	Standard or Nonstandard:	customization;
Model Number:	CR-HC;	Application:	Waterproof and Breathable Solution;
Pressure:	Vacuum;	Package Preview:	https://sc01.alicdn.com/kf/HTB1EatpXcfrK1RkSmLyq6xGApXa3.jpg_640x640.jpg;
Place of Origin:	Jiangsu China;	Brand Name:	Creherit;
Product name:	ePTFE Membrane Protective Adhesive Vent Patch Sticker;	Color:	Whtie or Black;
Temperature of Media:	High Temperature,Low Temperature,Medium Temperature,Normal Temperature,-40℃ to +125 ℃;	Material:	ePTFE Membrane;
Thickness (mm):	0.37mm;	Material:	ePTFE;
Media:	Oil;	Backing Material Color:	None;
Gross weight per batch:	2.1 KG;	Oil Rate:	6;
Backing Material:	None;	Package Type:	1000PCS adhesive vent /bag , 10 bags adhesive vent /carton;
Port Size:	Depand on your products;	Selling Units:	Multiple of 30,000;
Structure:	Round and other shape you like;	Package size per batch:	30X23X10 cm;

Product Description

Data sheet of ePTFE Membrane Protective Adhesive Vent Patch Sticker:

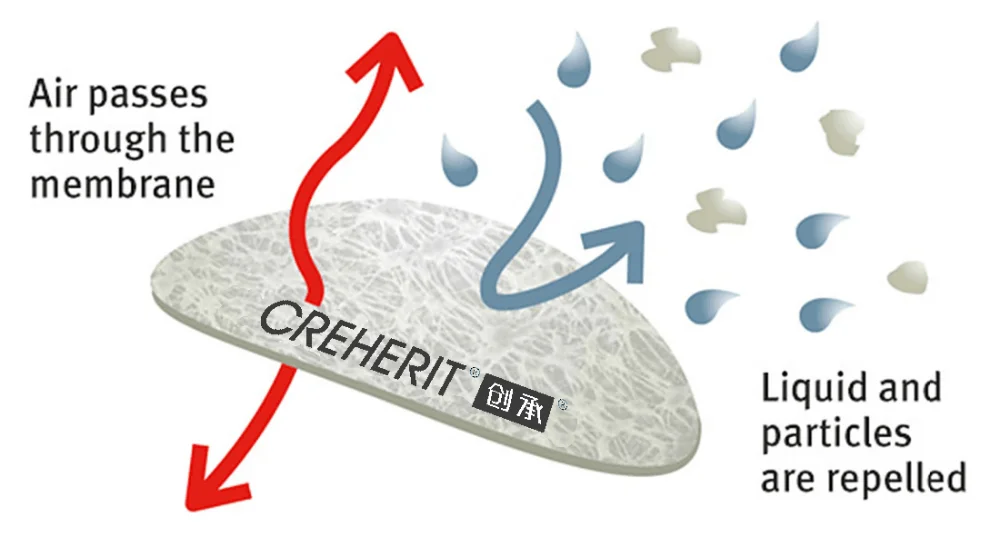

Creherit Protective Adhesive Vent Sticker are the leading solution for protecting your sensitive electronics. Creherit Protective Adhesive Vent Sticker equalize pressure and reduce condensation by allowing air to flow freely into and out of sealed enclosures. At the same time, they provided a durable barrier to protect the electronics from contaminants. The result-improved reliability, increase safety and longer product life for your sealed electronic devices.

Product Name	Creherit HC-1.5+ Custom size and Shape Waterproof IP 68 ePTFE Membrane Protective Adhesive Vent Sticker
Material	ePTFE Membrane
Air Perm	600ml/min/cm²(Pressure =70 mbar)
WEP	980mbar
IP Rate	IP 68
Temperature	-40~125℃
Oil Rate	6
Membrane Character	Waterproof,Breathable, Oleophobic
Color	Black or White
Backing Material	None
Backing Material Color	None
Thickness (mm)	0.37mm

Features of ePTFE Membrane Protective Adhesive Vent Patch Sticker:
• Venting of gases and pressure equalization;
• Eliminates the need for costly hermetic sealing;
• Repels water, oils, and other liquids;
• Oil ratings from 1 to 8;
• IP ratings from IP44 to IP67/IP68;
• Easy application and device integration;
• Non-adhesive protective vents also available for welding to your device;
• Standard and custom sizes and shapes are available.

Installation Notes of ePTFE Membrane Protective Adhesive Vent Patch Sticker:

1.Clean your product,with your finger on the outline on the appropriate pressure;
2.Wearing gloves to protect anchoring strength;
3.Adhesive experiments in 48 hours.
