Application: | Power Tools,Electrocar,Energy storage,LAPTOP,MOBilePhone,IOT,AGV; | Compact Desiged: | With Built-in BMS; |
Package Type: | EPE + Foam + Cardboard; | Certification: | CE/ROSH/UL/MSDS/UN38.3; |
Cycle Life: | >3000 Times; | Discharge Current: | 100A; |
Model Number: | KS-12120; | Battery Capacity: | With LED Indicator; |
Single package size: | 35X20X25 cm; | Selling Units: | Single item; |
Type: | Li-Ion; | Size: | 323*171*215mm; |
Weight: | 15kg; | Charge Current: | 80A; |
Application: | RV/Solar System/Yacht/Golf Carts/Marine; | Single gross weight: | 18 KG; |
Housing: | Plastic; | Certification: | UL,ce; |
Place of Origin: | Guangdong China; | Anode Material: | Lithium Cobalt Oxide; |
Brand Name: | GSL ENERGY; |
12v 40ah 12v 50ah 12v 60ah 12v 80ah
12v 100ah 12v 120ah 12v 200ah 12v 300ah

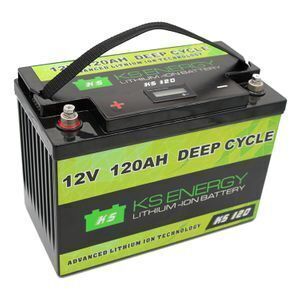

Deep Cycle Lifepo4 12V 120ah Lithium Battery For RV/Solar System/Yacht/Golf Carts/Marine
12V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
Basic Specification
ItemsItems | MODEL : KS12120 |
Cell Technology | LiFePO4 |
Battery Module Capacity (kWh) | 1.54 |
Battery Module Voltage (Vdc) | 12.8 |
Battery Module Capacity (AH) | 120 |
Battery Module Cell Quantity in Series (pcs) | 4S |
Battery Module Charge Voltage (Vdc) | 14.6 |
Battery System Charge Current (Standard) | 50A |
Battery Module Charge Current (Normal) | 50A |
Battery Module Charge Current (Max.) | 60A |
Battery Module Discharge lower-Voltage (Vdc) | 10V |
Battery System Discharge Current (Standard) | 50A |
Battery Module Discharge Current (Normal) | 80A |
Battery Module Discharge Current (Max.) | 200A |
Efficiency | 98% |
Depth of Discharge | 100% |
Dimension (L*W*H, mm) | 323*171*215 |
Weight | 15KG |
Communication | Option of CANBUS OR RS485 |
Protection Class | IP65 |
Operation Cycle Life | Over 4000 times |
Operation Life | 10+ years |
Operation Temperature | 0-50℃ |
Storage Temperature | minus 20 -- 60 ℃ |
Products certificates | TÜV (IEC62619), CE |
Transfer Certificates | UN38.3 , MSDS |
Click here to send us an inquiry
ADVANTAGES
1.It is high integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage protection with higher reliability.
12V SPECIFICATION
SAFETY
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
APPLICATIONS
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
WHY CHOOSE US ?
1.Experience--More than 12 years Specialized in lithium battery, Gold Supplier on Alibaba.
2.Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
3. Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
4. Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
5. Fresh battery-- All battery is fresh Production.
Click here to send us an inquiry
GSL ENERGY is focused on manufacturing, R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS. Striving to grow into a global leading lithium battery supplier, GSL ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.
As a sub-factory of GSL GROUP, KS ENERGY is specializes in clean and new energy on lithium ion battery products.

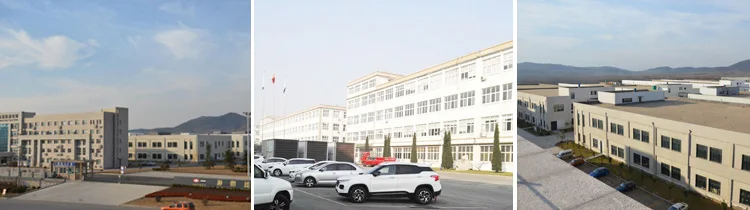

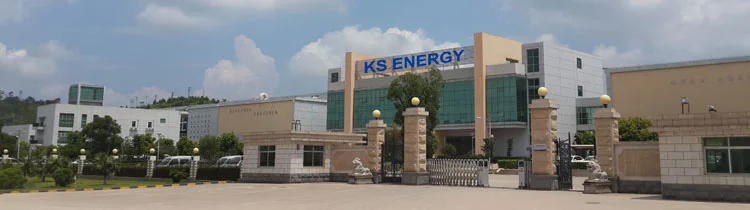

Welcome To Visit Our Factory.
Through years development and experienced international sales team in Shenzhen, GSL ENERGY green solar and lithium battery products have been sold to clients all over the world.
Since 2006, GSL ENERGY has maintained a corporate philosophy that is characterized by entrepreneurship, innovation, competition and transcendence. Today GSL has established a solid foundation in two major industries: photovoltaic and Lithium, with its four production bases in Shangdong, Zhejiang, Sichuan, Guangdong.
Click here to send us an inquiry
GSL ENERGY partners with customers to provide complete energy storage solutions that enable the rapid development and delivery of innovative products that meet demand in both existing and emerging markets.
--Professional pack module design on cylindrical and Prismatic design.
--Fast Production and Delivery time.
Click here to send us an inquiry
Deep Cycle Lifepo4 12V 120ah Lithium Battery For RV/Solar System/Yacht/Golf Carts/Marine
For more details and price, please send us an enquiry below ⇓⇓⇓
