Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash; | Number of Pole: | 1P 2P 3P 4P; |
Port: | NINGBO/SHANGHAI; | Warranty: | 2 years; |
Product Name: | time contactor; | Electricity Type: | AC; |
Mechanical Life(No load): | Conforms to ARI Specifications; | Place of Origin: | Zhejiang China; |
Model Number: | CJX9; | Phase: | 3; |
Certificate: | CE/CCC; | emperature Range: | -40°F to 150°F; |
Supply Ability: | 100000 Piece/Pieces per Month; | Electrical Life: | 250, 000 times; |
Main Circuit Rating Voltage: | 24V-240V; | Duty Cycle: | Continuous; |
Packaging Detail: | export standard package or designed by yourself; | Coils Frequency: | 50/60HZ; |
Main Circuit Rating Current: | 30A-90A; | Mechanical life: | 1,000, 000 times; |
Weight(approximate): | 9.25 oz; | Brand Name: | KAYAL/OEM; |

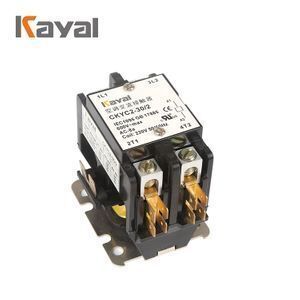

1-4 POLE CONTACTORS (20A THRU 90A)
Designed for Air Conditioning and Heating Equipment

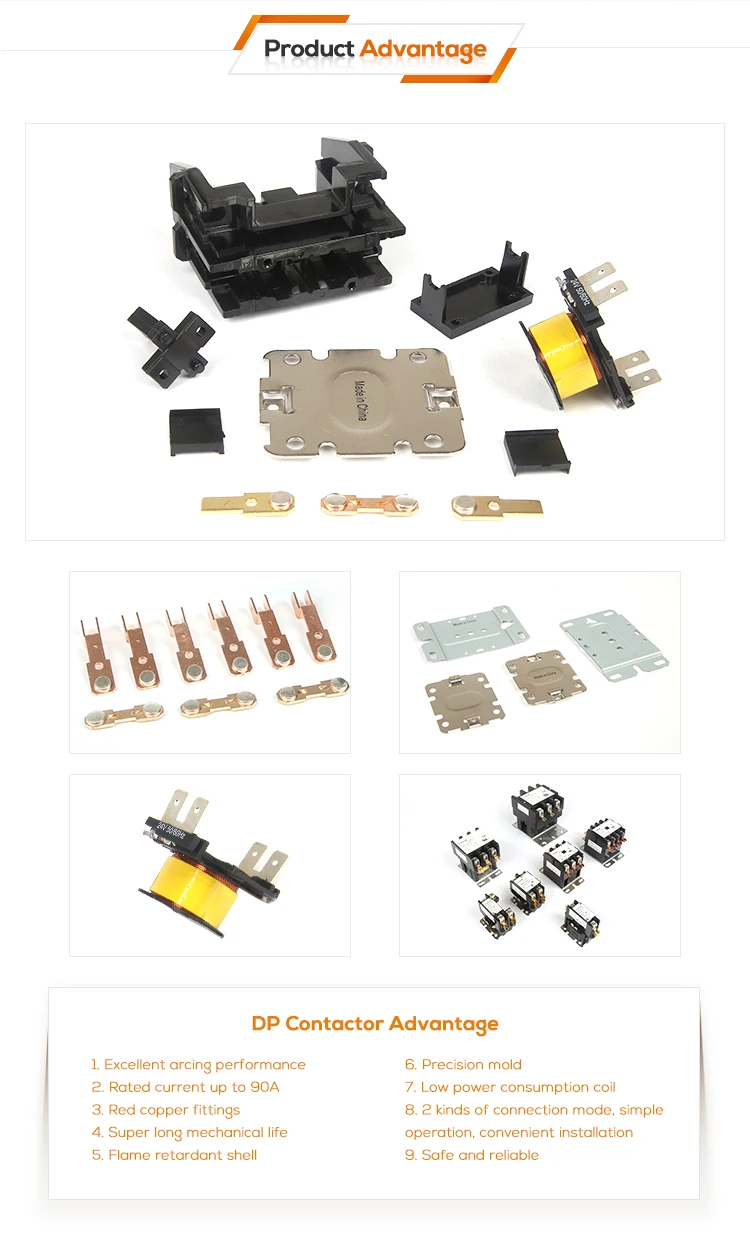

FEATURES
1.Low VA coil for cooler operation and increased life
2.Quiet operation
3.Universal style mounting bracket existing mounting holes
4.Double brake contacts ensure positive make and break
5.Screw terminal or pressure connectors and double 1/4 quick connects
6.Provided on all models for easy installation
Specification
Insulating material | contact block and carrier are highly electrical-grade thermosetting resin | ||||||
Temperature range | -40°F to 150°F | ||||||
mechanical life | conforms to ARI specifications | ||||||
electrical life | conforms to ARI specifications 94-388 thru 94-390 achieve 200,000 Cycles,make LRA at.5pf, break 125% of FLA at. 75pf at rated voltage,10,000 cycles make and brek LRA at.5pf rated voltage 94-394 thru 94-369 achieve 100,000 cycles, make LAR at 5pf at rated voltage 6.000 cycles make and break LEA at 5pf rated voltage | ||||||
outline drawings | as follow | ||||||
weight(approximate) | 9.5oz | ||||||
coils frenquency | 50/60hz | ||||||
coils insulation | class B(130'C) | ||||||
termination | pressure connector and double 1/4 Q.C. | ||||||
operate | 85% of nominal coil voltage, 110% maximum sate operate | ||||||
duty cycle | continuous | ||||||
Coil data | 2P | ||||||
Steveco nmuber | Volatge | Ress DC | Current | Nominal | Max. Inrush | ||
30 Amp 40Amp | AC | OHMS | MA | VA | VA | ||
C2-244 C2-247 | 24 | 11 | 250 | 6 | 32 | ||
C2-389 C2-395 | 120 | 224 | 50 | 6 | 32 | ||
C2-390 C2-396 | 208/240 | 997 | 25 | 6 | 32 | ||
Contact Ratings | |||||||
Type | Voltage | FLA | LRA | RES | |||
C2-244 thru C2-246 | 277 | 30 | 150 | 40 | |||
480 | 30 | 75 | 40 | ||||
600 | 30 | 50 | 40 | ||||
C2-3247 thru C2-252 | 277 | 40 | 200 | 50 | |||
480 | 40 | 100 | 50 | ||||
600 | 40 | 80 | 50 |
