Port: | Shanghai, Qingdao; | Packaging Detail: | Wooden Box; |
Max Digging Radius: | 3700mm; | Brand Name: | RAY ATTACHMENTS; |
Weight: | 0.6T/1T/1.5T/2T; | Product name: | Mini Crawler Excavator; |
Supply Ability: | 400 Set/Sets per Month; | UNIQUE SELLING POINT: | Zero swing with round shape body; |
Certification: | EPA, ISO, CE; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
Color: | Customer's Required; | Hydraulic Pump Brand: | Famous brand; |
Delivery time: | Within 7 Days; | Warranty: | 12 months or 2000 hours; |
Operating Weight: | 1880kg; | Track material: | Steel / Rubber track; |
Moving Type: | Crawler Excavator; | Maximum Digging Depth: | 2150mm; |
Hydraulic Valve Brand: | Famous brand; | Engine Brand: | Yanmar/Changchai/Koop; |
Place of Origin: | Shandong China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Hydraulic Cylinder Brand: | Famous brand; | Bucket capacity: | 0.045cbm; |
After-sales Service Provided: | Video technical support,Online support; | Location: | China Shangdong Province; |
Condition: | New; | Attachments: | Auger, Breaker, quick hitch, bucket and so on; |
Rated Speed: | 1.5km/h; | Warranty: | 1 Year; |
Maximum Digging Height: | 3275mm; |

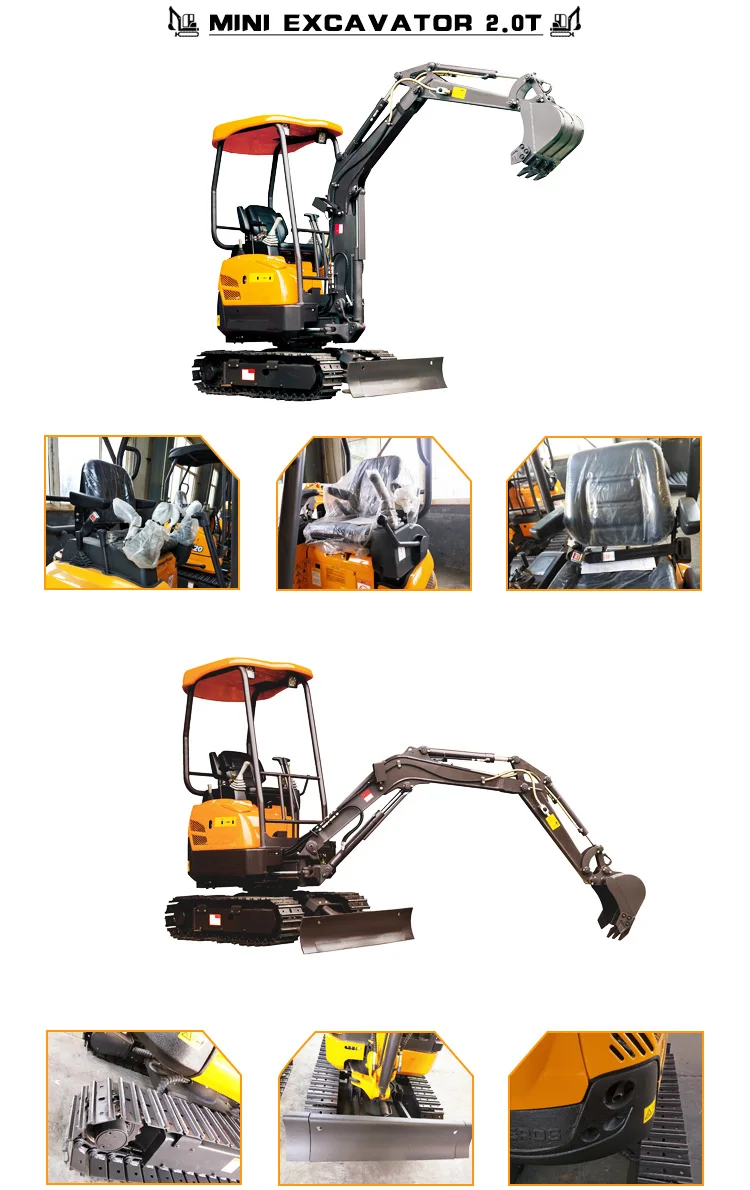

1.8 ton Mini Hydraulic Crawler Excavator With 0.045cbm Bucket
We can also supply excavator attachments for different project.
Make your excavator multifunctional.
Mini excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench. It is with small engine, simple design, easy to maintain.
Use the quick hitch can add the attachment tools like auger,hydraulic hammer,loading bucket,gripper and so on.
Specification:
Model | RX20 |
Operating Weight | 1880kg |
Digging Bucket Capacity | 0.045m³ |
Working device form | backhoe |
Engine | Yanmar 3TNV70/3TNV74F |
Rated Power | 10kw/2200/r/min / 11.2 kw |
Displacement | 0.854L |
Max.travel speed(high/low) | 3.4 / 1.9 km/h |
Swing speed | 10.5 rpm |
Max. Gradeability | 30°(58%) |
Track material | Steel track |
Fuel tank capacity | 19 L |
Main Demesions:
Wheelbase | 1230mm | a |
Total length of track | 1590mm | b |
Platform ground clearance | 473 mm | c |
Counterweight turning radius | 740 mm | d |
Chassis width | 990(1240) mm | e |
Track width | 230 mm | f |
Track height | 360 mm | g |
Max. Digging depth | 2150 mm | C |
Max. Vertical digging depth | 1740 mm | F |
Max. Digging height | 3275 mm | D |
Max. Dumping height | 2310 mm | E |
Max. Digging radius on ground | 3610 mm | A |
Min. Rotation radius | 1580 mm | G |
Max. Upgrade height of bulldozer blade | 275 mm | H |
Max. Digging depth of bulldozer blade | 180 mm | I |
Main feature:
1.With Yanmar engine,10kw,three cylinder,water-cooled,national III emission standard
2.1800kg ,0.045cbm bucket,with swing arm & expended chassis
3. Nachi brand pump & swing motor from Japan,DONGHYUN brand traveling motor from Korea,KYB brand valve from Japan.

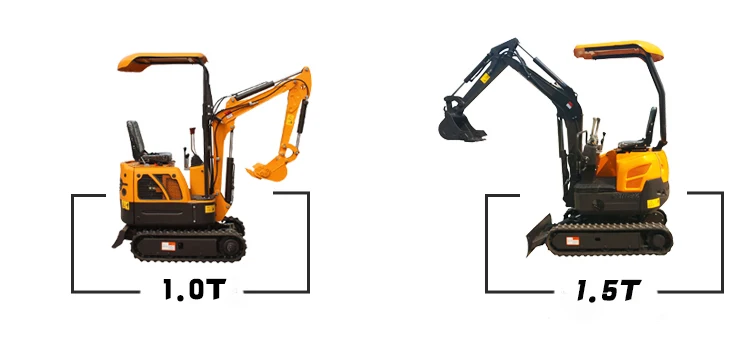

Related Model:
Changzhou Raymond International Co., Ltd is a professional manufacturer and exporter which was found in 2002 has a lot of experience in construction machinery attachments producing and serving.Our factory is located in Changzhou City, Jiangsu Province, Near to Shanghai City. Which has large capacity to make various kinds products like mini excavator, hydraulic breaker, earth auger, quick hitch, Vibro ripper,pile breaker and other construction machinery attachments.We are always researching to improve our products’ performance and innovate designing to meet more and more clients’ demands.
1.How long is the mini excavator warranty time?
A: One year or 2000 hours
2.Which certification of mini excavator do you have ?
A:CE,ISO9001,SGS,etc.expect these for different countries,other certificates required by customer is agreed.
3.What are our advantages compared with Manufacturer/Factories?
Competitive Price-we work as the leading dealers of various leading China construction machinery,and are treated with best dealership prices everyyear.From numerous comparison and feedbacks from clients,our price is more competitive than Manufacturer/Factories.
Quick Response-Our team is consisted of a group of diligent and enterprising people,working 24/7 to response client inquires and question all the time.Most problems can be solved within 12 hours.
