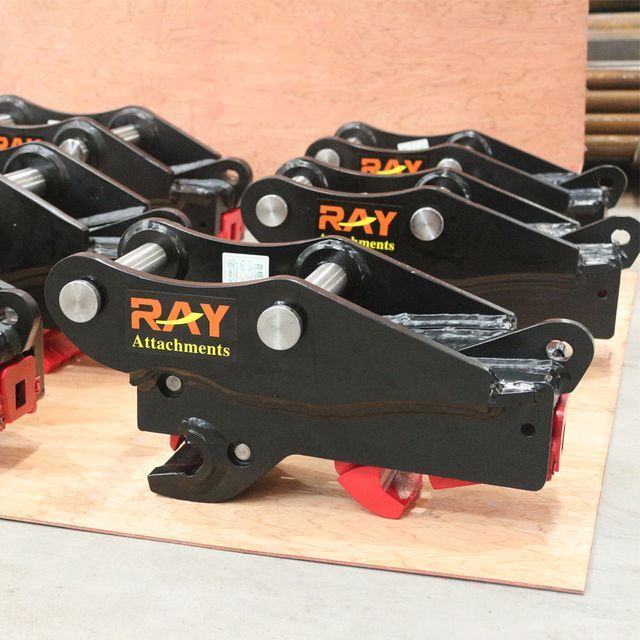

Excavator Bucket Hydraulic Quick Connect Multi Coupler with Double Lock

Supplier: Changzhou Raymond International Trading Co., Ltd.
Region: Jiangsu, China
Contact: Ms liuying yu
Price: $860.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service location:	Canada, United States, France, Germany, Philippines, Peru, Indonesia, Mexico, Thailand, Malaysia, Australia, Chile	Health status:	new
application:	crawler excavator	Packaging Details:	Wooden pallet or wooden box (for excavator bucket hydraulic quick connect multi coupling with double lock)
Applicable excavators (tons):	1~36T	Warranty:	1 year
type:	hydraulic	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
color:	customer request	Marketing Type:	New Products 2020
payment terms:	Letter of Credit, T/T, Western Union, MoneyGram	place of origin; place of origin:	Jiangsu, China
Pin diameter:	30-110mm	Packaging Preview:
port:	Shanghai	Core components:	cylinder
Material:	Q345B	model:	RQH
Applicable industries:	farm, construction	Name:	Excavator Quick Connect
Certification:	International Organization for Standardization	Supply capacity:	50 sets per month
Showroom location:	United Kingdom, United States, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Australia	Original Equipment Manufacturer:	available
patent:	201520620617.3	brand:	Ray accessories
Mechanical test report:	if	Video external inspection:	if
After-sales service provided:	Video technical support, online support

Excavator Bucket Hydraulic Quick Connect Multi Coupler with Double Lock

Upgraded version! The era of multi-couplers is coming

Quick couplers (also known as quick couplers) are used with construction machinery to allow quick changes to buckets and attachments on the machine. They eliminate the need to manually push out and insert mounting pins for attachments with a hammer. They can be used in excavators, mini excavators, backhoe loaders and more.

We can offer three types: hydraulic, double lock and mechanical.

Multiple quick connectors

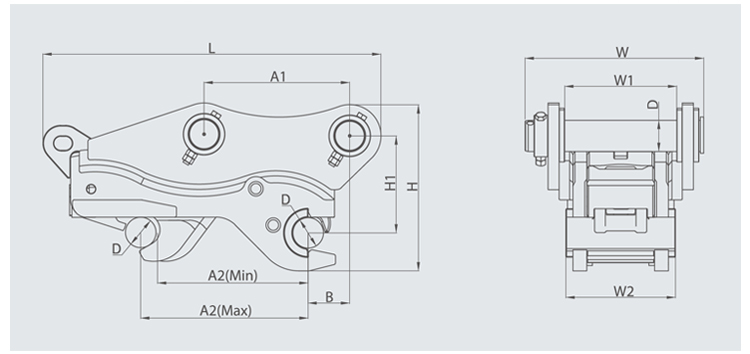

Specification:

Model	unit	RQH01D (One)	RQH01D (two)	RQH02D	RQH04D	RQH06D	RQH08D	RQH10D
Carrying weight	Ton	1~2	2~4	4~6	6~8	10~15	15~27	25~36
pin diameter	mm	30	35/40	45	50/55	60/65	70/80	90/100
Arm width (W1)	mm	105~125	110~135	140~180	185~220	220~270	105~138	105~140
center to center (A1)	mm	120~140	140~215	185~290	260~320	340~430	380~490	460~550
equipment distance (A2)	mm	120~140	140~215	185~290	260~320	340~430	380~490	460~550
work pressure	bar	40~248	40~248	40~248	40~205	40~205	40~205	40~205
oil flow	L/min	10~20	10~20	10~20	10~20	10~20	10~20	10~20
unit weight	Kilogram	20	23.5	51-80	110	185	340	500
unit length	mm	370	400	505-610	655	820	980	1060
unit width	mm	220	240	275-330	312	440	510	560
Unit height	mm	210	210	265-320	335	410	490	560

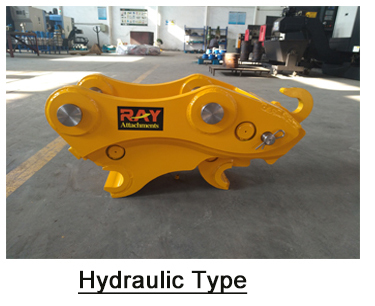

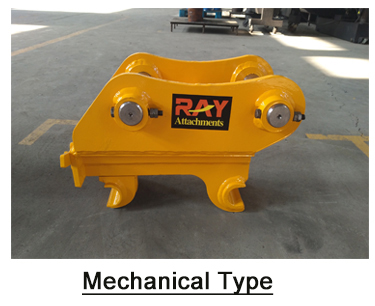

We can also produce mechanical and hydraulic types, click to see more

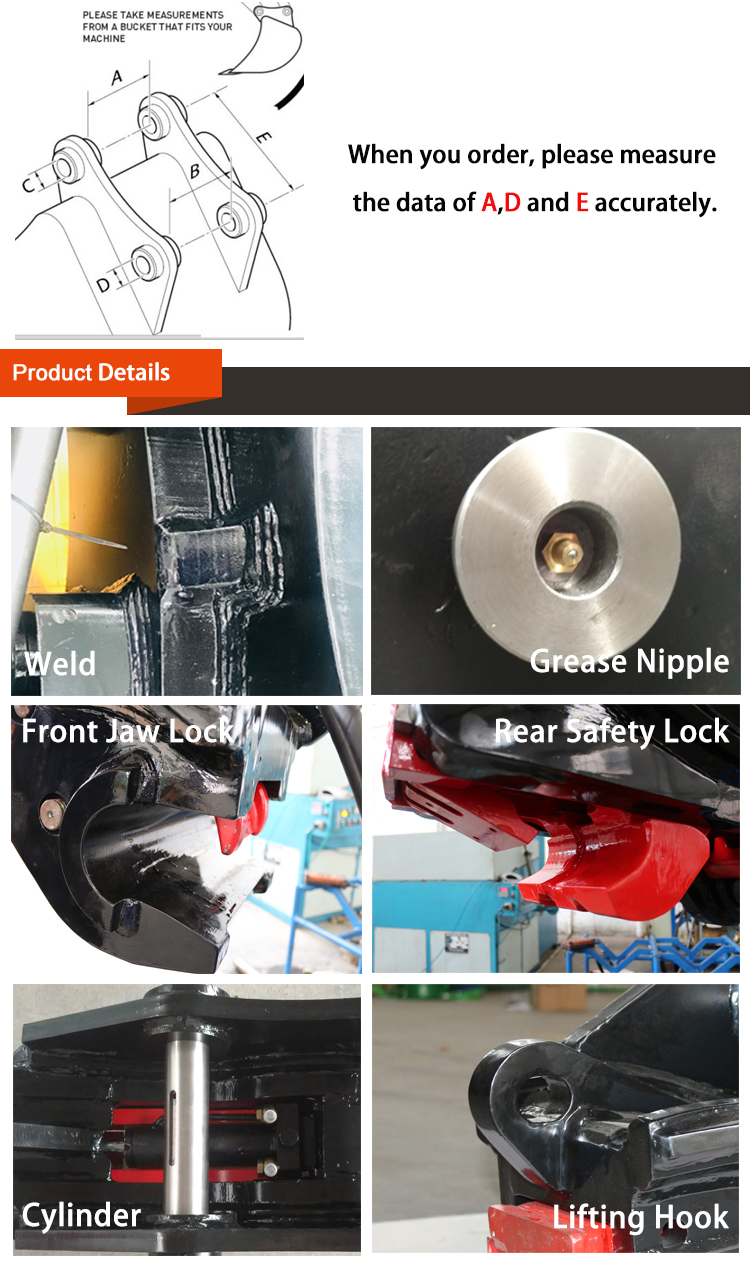

advantage:

1.Welding technology: 15 years of experience, fully welded, not easy to crack.

2.Grease nipple: make the pin less prone to wear

3.Double Lock System: Front pawl lock and rear safety lock make operation more secure. Even though the cylinder suddenly stopped running, it hugged the pin tightly.

4.Imported oil cylinder, not easy to damage

5.Without the need for safety pins, the excavator operator can operate alone in the cab.

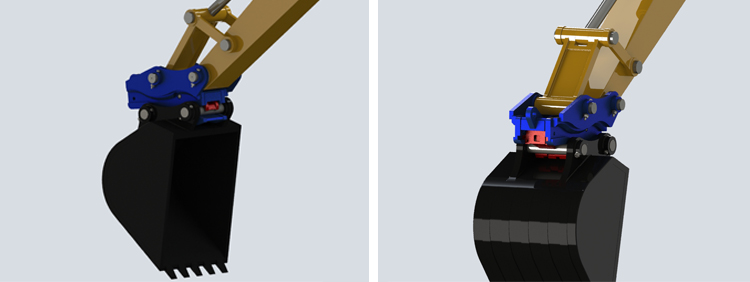

6. Wide range of applications:Compared to the fixed C-to-C distance (A) of the regular quick connect, the multi quick connect is more flexible. It applies to all attachments with a C to C distance (A) within its range.

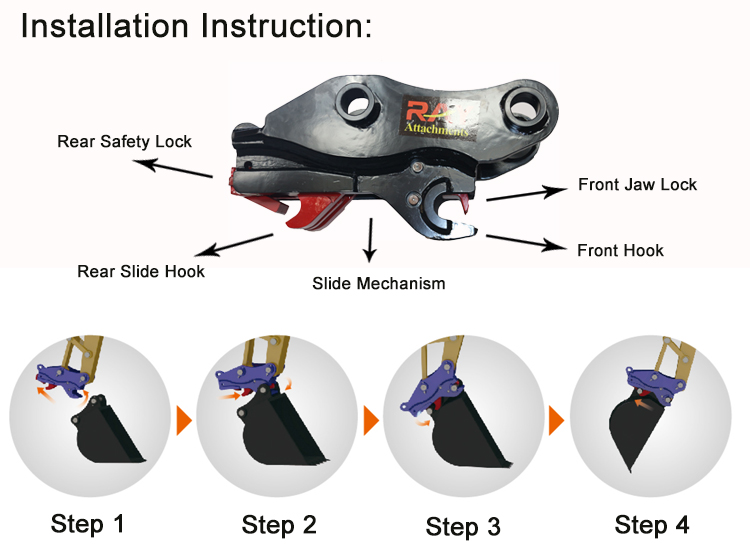

1. Open the cylinder, make sure the slider is fully extended and the front paw safety lock is open.

2. Align the attachment and engage the front attachment pins.

3. Close the cylinder. This will retract the slide mechanism, which will visibly lock the front paw safety latch around the front attachment pin.

4. Open the cylinder again. The sliding mechanism will extend and engage the rear sliding hook to the rear connecting pin.

5. Perform a connection test.

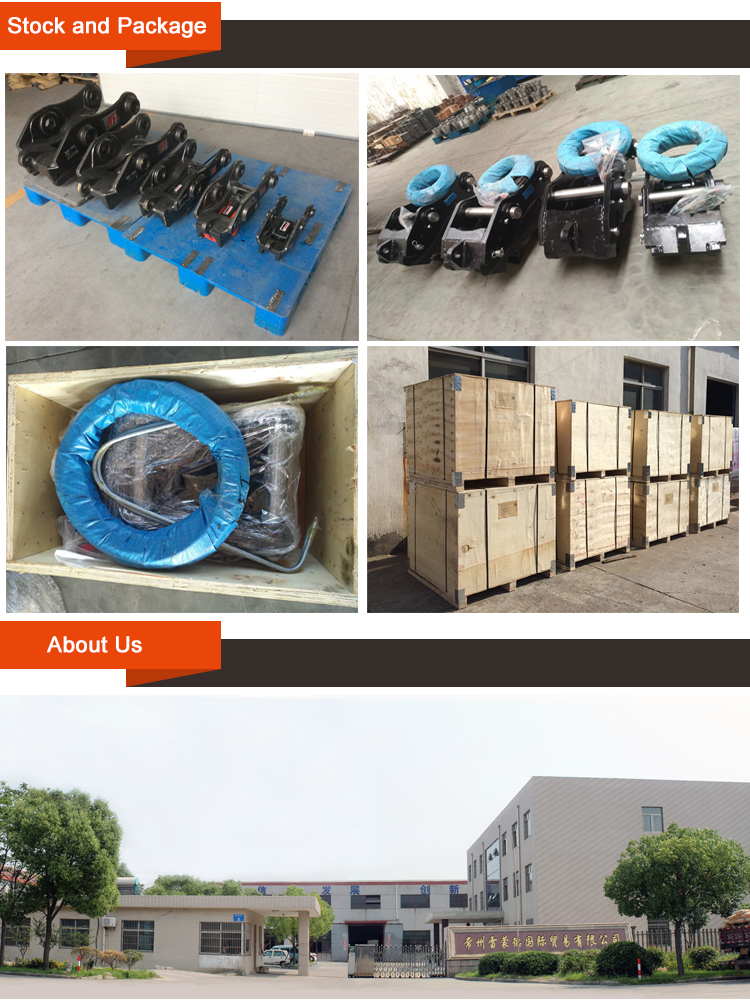

ray accessoriesIncluding Changzhou Restmoment International Trade Co., Ltd. and Changzhou Restmoment Precision Machinery Co., Ltd. It is a comprehensive company dedicated to the production, research and development and sales of construction machinery accessories. Has 15 years of experience. Main products includeGround drills, quick couplers, hydraulic breakers, vibratory rippers and other heavy equipment.The company covers an area of more than 20,000 square meters and has more than 150 employees, including a professional R&D team and sales department. Welcome to visit!
