COSTAR brand 5L pet bottle blowing machine semi automatic blowing machine to make plastic bottle

Supplier: Suzhou Costar Machinery Co., Limited
Region: Jiangsu, China
Contact: Ms Dorothy Wang
Price: $5080.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	1 Set COSTAR brand pet bottle semi automatic blowing machine for pet preform for pet preform of Wooded pallet package, standard ocean shipping package of injection molding moulding machine;	color:	any color client require;
Weight:	700kg;	Place of Origin:	Jiangsu China;
Healing Power:	40KW;	Applicable Industries:	Manufacturing Plant;
Power(W):	42;	Certification:	TUV;
Dimension(LWH):	19506501750(mm);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Clamping Stroke:	280mm;	Port:	Shanghai Port/Ningbo Port;
Voltage:	380V;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Main Machine Dimensions:	2170 * 670*1600mm;	Blow Moulding Type:	Injection Blow Moulding;
Condition:	New;	Warranty:	1 Year;
Theoretical output:	300-400bph;	Plastic Processed:	PET;
Key Selling Points:	semi automatic blowing machine;	Automatic:	Other;
Clamping Force:	26000N;	Number of Cavity:	1-2Cavities;
Application:	Bottle;	Brand Name:	COSTAR;
Supply Ability:	400 Set/Sets per Month semi automatic blowing machine;	Main Machine Weight:	400kg;

COSTAR brand plastic PET bottle blow molding machine semi automatic blowing machine for pet preform

Product Description

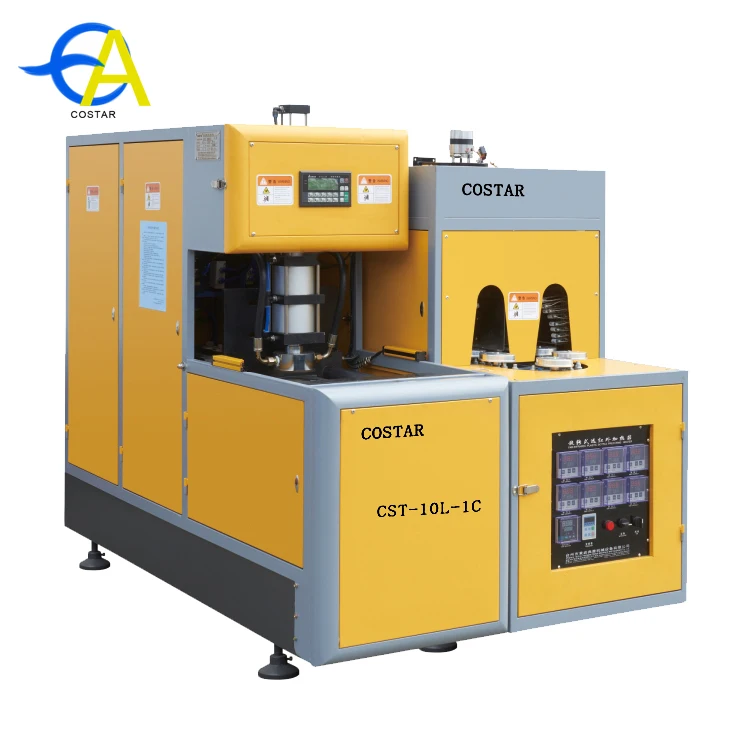

		CST-10L-1C
Clamping Force	kg	26000
Clamping Stroke	mm	280
Stretching Stroke	mm	450
Bottom stroke	mm	\
Cavity Spacing	mm	90-120
Number of Cavity	Cavities	1-2
Carriage Unit	pcs	96
Theoretical output	bph	300-400
Total Power	kw	42
Healing Power	kw	40*1KW=40
Number of Lamp Layers	Layers	10
Operating Pressure	kg/cm²	7-9
Low Pressure Air Consumption	ltr/min	600
Blowing Pressure	kg/cm²	20-30
High Pressure Air Consumption	ltr/min	1600
Operating Pressure	kg/cm²	2-4
Temperature Range	℃	10-12
Consumption	kcal/hr	2000
Flow Rate	ltr/min	200
Main Machine Dimensions	mm(LWH)	19506501750
Main Machine Weight	kg	700
Preform Loader Dimensions	mm(LWH)	2170 * 670*1600
Preform Loader Weight	kg	400

Product Display

Machine Feature:

01--Adopt special electronically controlled loop design while heating lamps; High efficiency in simultaneous controlling one lamp or large quantities, lower power consumption.
02--Adopt heat transfer and feedback theory to decide the shape and thickness of bottle embryo.
03--Heating funace is always under stable temperature. The embryo will be heated evenly, not be influenced by outside environment.
04--Air circuit system consists of movement and blowing so as to meet the needs of different air pressure ,Also to provide stable high voltage for blowing different shapes of big bottles.
05--The system is equipped with silencer connecting rod and articulated refueling devices.
06--Two modes of operation, automatic mode and semi-automatic mode .
07--Auto. low investment, one person enough, easy to use and safe.
08--Cooling system with cold air circulating ensures same heat exposure of inner and outer of bottles.
