Switch Capacity: | 7.6G; | Products Status: | Stock; |
Port: | shanghai; | Certification: | CE RoHS FCC; |
Packaging Detail: | Weight: 540g Dimension(WxDxH): 150mmx100mmx42mm; | Supply Ability: | 1000 Piece/Pieces per Week; |
Transmission Rate: | 10/100/1000Mbps; | Payment Terms: | T/T,Western Union,MoneyGram,Paypal; |
Place of Origin: | Zhejiang China; | Ports: | ≤ 8; |
Switching Capacity: | 7.6G; | Delivery Detail: | 7 days; |
Model Number: | PFS3110-8P-96; | Communication Mode: | Full-Duplex; |
Brand Name: | Dahua; | Power: | DC48~57V; |
Function: | POE; |
Model

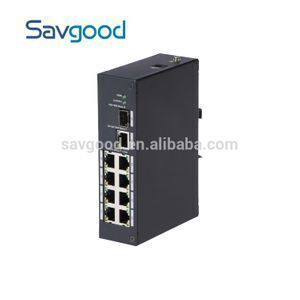

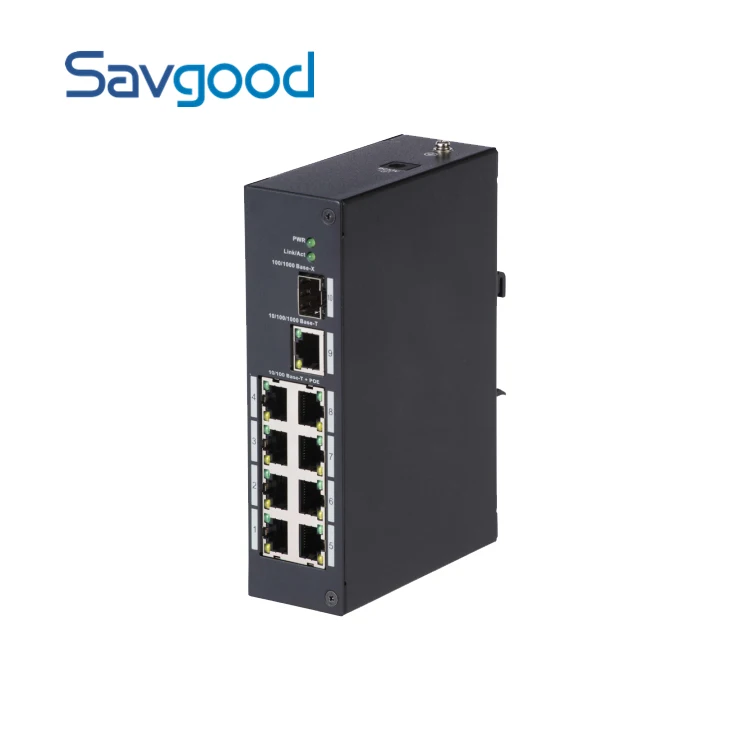

PFS3110-8P-96: 8-Port PoE Switch (Unmanaged)
Features
> Two-layer industrial PoE switch
> MAC auto study and aging, MAC address list capacity is 8K
> Support IEEE802.3af, IEEE802.3at standard
> Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
> Industrial wide temperature design
Specification
Technical Specification | |
Model | DH-PFS3110-8P-96 |
Ethernet Port | 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T (PoE power supply) |
PoE Power Consumption | Each power ≤30W, Total≤96W |
PoE Protocol | IEEE802.3af, IEEE802.3at |
Switching Capacity | 7.6G |
Packet Forwarding Rate | 4.17Mpps |
Packet Buffer Memory | 1Mb |
MAC Table Size | 8K |
Flow Control | Enable by default |
Application Humidity | 10%~90% |
Power | DC48~57V |
Lightning Protection | Common Mode 4KV Differential Mode 2KV |
Working Temperature | -30°C~65°C |
Weight | 540g |
Dimension(W×D×H) | 150mm×100mm×42mm |
Accessories | |
Model | |
PFT3950 | 1.25G 850nm,500m,LC, Multi-mode |
PFT3960 | 1.25G 1310/1550nm,20km,LC, Single-mode |
PFT3970 | 1.25G 1550/1310nm,20km,LC, Single-mode |
Packaging:
Shipping:
The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea
We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.
Payment Way:
T/T, Paypal, West Union, MoneyGram.
Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.
OEM Service:
We could offer OEM and ODM services for our clients.
Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.
Hangzhou Savgood Technology Co., Ltd, a fast growing enterprise in China who specialize in Security industry, have a professional consultative selling team, everyone in the team owned at least of six years' experiences in the line of security and protection industry.
Company:
Location:
1. What products do you deal with?
We mainly deal with IP Solutions including IP Cameras, NVRs, POE Switches, also HDCVI, AHD and some Analog Products. We developed our professional PC-Based NVR software 100% in house, which is stable and unique in the market, it could manage multi-brands IP cameras.
2. The products you provided are original?
We only provide 100% original products which are all directly from Hikvision and Dahua head factories in Hangzhou City. NO FAKE VERSION. BUT OEM Service is acceptable.
3. Are OEM products same features as original?
OEM products have all the same features as original, just with different model number, OEM NVR has different front panel.
4. Do you supply PC-baed NVR/CMS software?
Yes, all ip cameras and NVRs come with FREE NVR/CMS software.
5. Do your cameras and NVRs support Mobile viewing?
Yes, all ip cameras and NVRs support mobile APP(Android and IOS), you can see videos by phone freely.
