Supply Ability: | 200 Set/Sets per Week; | Standard: | ASTM D792, ASTM D297, GB / T1033 and so on; |
Brand Name: | ZONHOW; | Accuracy: | 0.001g/cm3; |
Power supply: | battery; | Density measure range: | 0.001-99.9999g/cm3; |
Packaging Detail: | Packaging with wooden box; | Model Number: | DZMD-300; |
Brand Name: | Zonhow; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Port: | shenzhen/guangzhou; | Model Number: | DZMD-300; |
Temperature compensation: | Solution temperature can set to 0~49°C; | Response time: | 5 seconds; |
Test range: | 0.001-300g; |

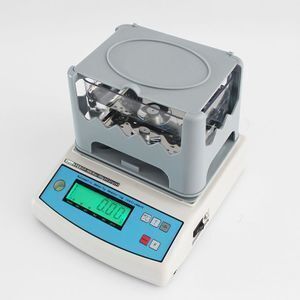

Digital densitometer,densimeter
Summary- densitometer,densimeter
Direct readings, with temperature compensation, and Solution compensation, more humanized operation, suitable for on site operations.For density determination of rubber, plastic, wire and cable, electrical appliances, sports equipment, tires, glass products, hard alloy, powder metallurgy, magnetic materials, seals, ceramics, sponge, EVA materials, foam materials, alloys, friction materials, New materials, battery materials.
Standards- densitometer,densimeter
ASTM D792, ASTM D297, GB / T1033, GB / T2951, GB / T3850, GB / T533, HG4-1468,
JIS K6268, ISO 2781, ISO 1183, ISO2781, ASTMD297-93, DIN 53479, D618, D891,
ASTM D792 -00, JISK6530, ASTM D792-00, JISK6530 and so on.
Technical parameters- Digital densitometer,densimeter
Test range | 0.001-300g |
Accuracy | 0.001g/cm3 |
Density measure range | 0.001-99.9999g/cm3 |
Response time | 5 seconds |
Temperature compensation | Solution temperature can set to 0~49°C |
Solution compensation | Solution can set to 19.999 |
Mix proportion | Set two kinds of mixture mixing ratio function |
Features- Digital densitometer,densimeter
1.Direct reading density and volume of solid, particles and floating body in any shape, which density> 1 or <1
2. With temperature compensation setting, and solution compensation setting function, more humane operation.
3. The density measurement station in one injection molding, easy and fast to install, long life-time.
4. Use corrosion-resistant large error integrally molded sink design to reduce the buoyancy of the hanging bar line caused, but also easy to test a relatively large massive objects.
5. With the lower and upper limit function, can determine the proportion qualified or not, equipped with a buzzer system.
6. Built-in battery, with configuration windshield, more suitable for field testing.
7. Configuration special wind dust cover, combination convenient, strong and durable.
8. Including RS - 232 - c communication interface, convenient connection PC and printers, can choose and buy QL - P printers print quickly measuring data.
Advantages- Digital densitometer,densimeter
1. With German imported sensors, better repeatability
2. Flip free measurement, and simpler operation
3. Waterproof membrane fuselage, protect the interior fuselage avoid ooze water.
4. PC material tank , abrasion resistant to fall off, corrosion resistant
5. 0.5cm stainless steel suspension wire, no bending deformation, do not touch the sink with vertical lifting bar.
6. The percentage of material content of the main material in the measurement of the mixed material.

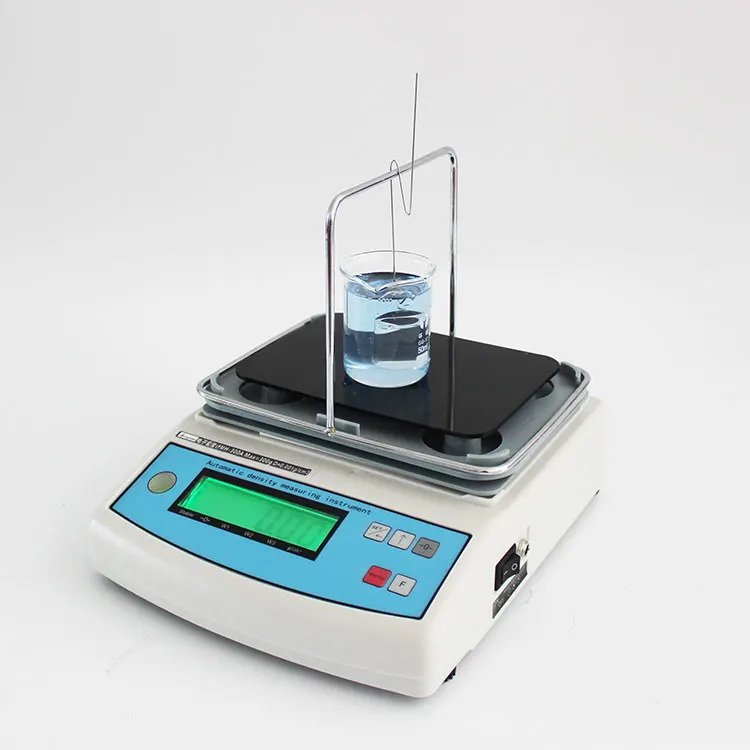

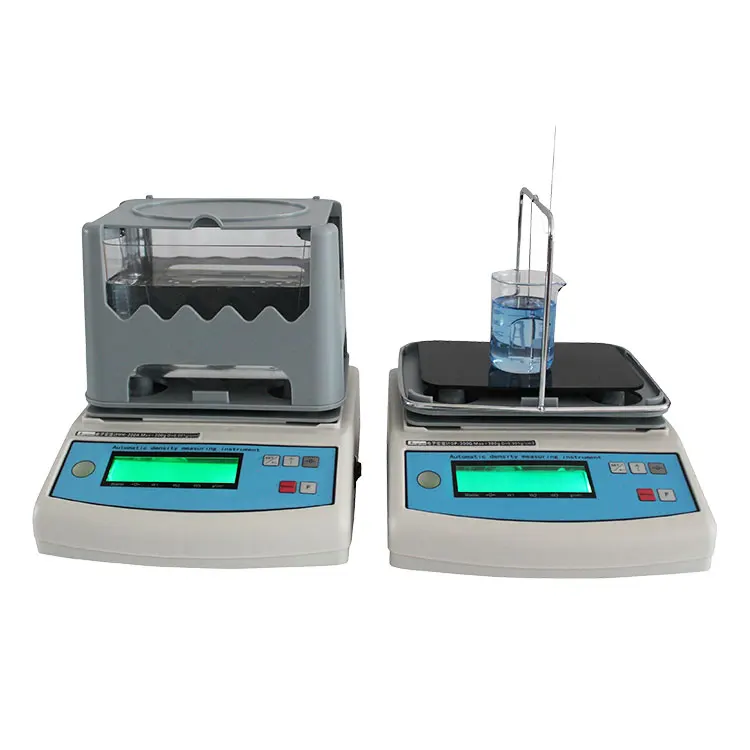

Real imagines for your reference:
Touch screen control

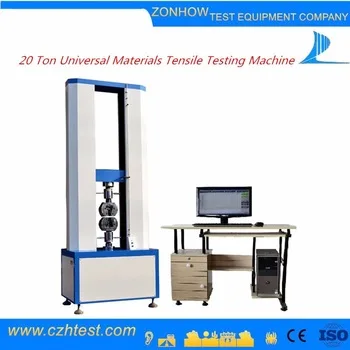

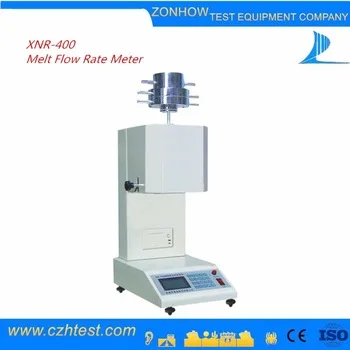

108Lprogrammable stainles Plastic and Rubber Melt Flow Computer Control dial type Mobile Phones

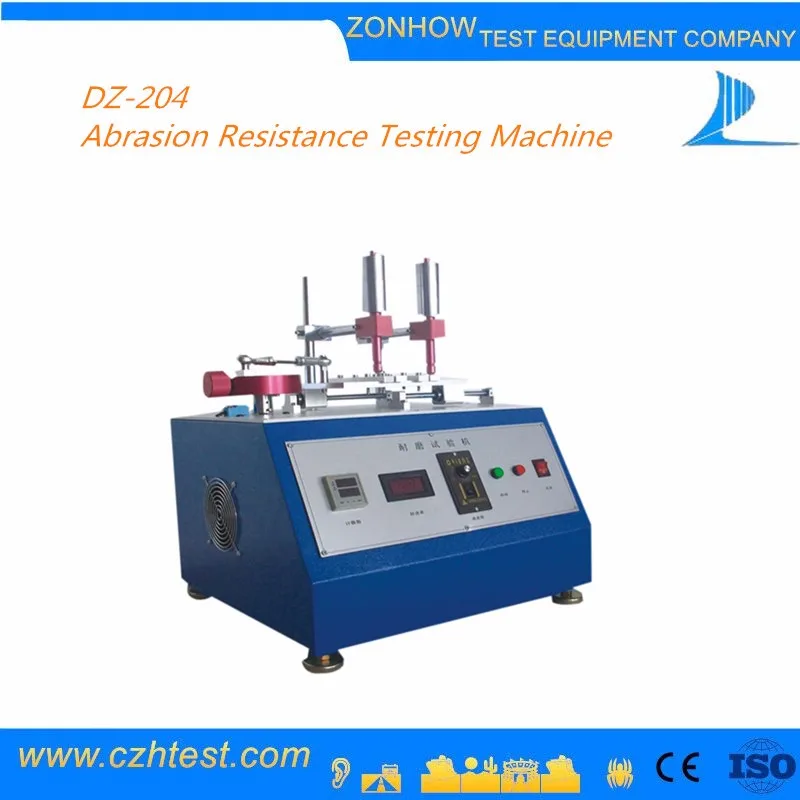

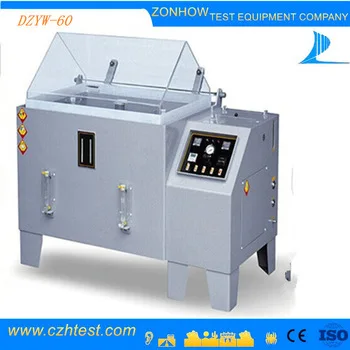

steel Salt SprayTest Index Mfi universal testing machine Wear Resistance
Apparatus
1.Out packing:Standard export wooden case;
2.Inner packing:With careful stretch film+ hard cardboard;
Company Information
Our Service
24 Hours online service for your consult. Help choose right model,and a series of service,person,advise.
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
--18 months warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
1. Q: What is your warranty ?
- 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant ?
- Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q: What about the quality ?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
