HV1000 Micro vickers Hardness Tester rockwell brinell vickers hardness tester microhardness

Product details
Brand Name:ZONHOW;Product Name:vickers hardness tester;
Conversion Scale:Rockwell,Superficial Rockwell, Brinell;Packaging Detail:1> Inner package: dust-proof plastic bag 2> Outer package: standard export wooden case with pallet 3> Special package: according to buyer's requirements 4> The packages suitable for international transport by sea, by air or any other delivery methods 5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Model Number:HVS-1000;
Data output:Inside Printer;Max Height of Specimen:165mm;
Distance of Indenter to outer wall:130mm;Test microscope magnification:200X(Measuring),100X(observation);
Indication of Hardness Value:Large LCD screen display;Load control (force applied):Automatic(Loading, Dwell, Unloading);
Supply Ability:200 Set/Sets per Month;Measuring Range:8-2900HV;
Min measuring unit:0.125um (with objective lens);Port:Shenzhen/Guangzhou;
Place of Origin:Guangdong China;
Product Description

 ZONHOW Digital Display Motorized Turret Micro vickers hardness tester



Application Fields:

  • ZONHOW Digital Display Motorized Turret Micro vickers hardness tester is maily used in the Surface coating, steel, non-ferrous metal, ceramics, alloys, etc; Heat treatment, carbonization,hardening layer, nitriding layer;Small and thin parts, etc. Hardness test such as on the depth and gradient of the carbonized layers and quenched hardened layers.



Main Features:

  • Back-light brightness is adjustable in 20 levels
  • with high-definition optical system
  • Diagonal length D1 and D2 encoders input to reduce manual reading error
  • The objective lens and the pressure head can automatically switch and locate accurately
  • Test results and data processing can be output by printer.
  • 4-inch large LCD screen with menu structure
  • Test process is automatic and easy to operate
  • Easy for hardness scales conversion





Technical Specifications:

Model:  DZWS-DP-50Z

Test force:

  • LHVS-5:0.3Kgf(2.94N),0.5Kgf(4.9N),1Kgf(9.8N),2Kgf(19.6N), 3Kgf(29.4N),5Kgf (49N)
  • LHVS-10:0.3Kgf(2.94N),0.5Kgf(4.9N),1Kgf(9.8N),3Kgf(29.4N), 5Kgf (49N),10Kgf (98N)
  • LHVS-30:1Kgf(9.8N), 3Kgf(29.4N), 5Kgf(49N), 10Kgf(98N), 20Kgf (196N),30Kgf (294N)
  • LHVS-50: 1Kgf (9.8N),5Kgf (49N),10Kgf (98N),20Kgf (196N), 30Kgf (294N),50Kgf (490N)



  1. Measuring Range: 8-2900HV
  2. Conversion Scale: Rockwell,Superficial Rockwell, Brinell
  3. Indication of Hardness Value: Large LCD screen display
  4. Min measuring unit: 0.125µm (with objective lens)
  5. Test microscope magnification: 200X(Measuring),100X(observation)
  6. Data output: Inside Printer
    Load control (force applied): Automatic(Loading, Dwell, Unloading)
    Max Height of Specimen: 165mm
  7. Distance of Indenter to outer wall: 130mm
  8. Power supply: AC220V+5%,50-60Hz
  9. Carried Standard: GB/T4340.2 Chinese Standard, JJG151 Inspection Rule
  10. Net weight:  About 45Kg

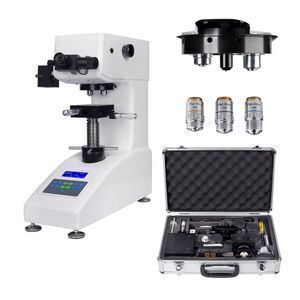

Real imagines:



Standard Accessories:

ItemQuantity
Vickers Indentor1
Digital display eyepiece 10X1
Objective 10X1
Vickers hardness block (HV5)1
Objective 20X1
Micro hardness block (HV5)1
Weight 3 Spare Fuse (2A)2
V shape testing table1
Printer paper1
Big testing table1
12V20W lamp1
Small testing table1
CCD contact pipe1
Spirit level1
CCD joint cap (with 3 screws)1
Phillips screwdriver1
Product Certificate1
Inner hexagon spanner1
Operation Manual1
Horizontal adjusting screw4
Dust-proof cover1
Power cable1
