Package Preview: | https://sc02.alicdn.com/kf/HTB19AGdKaSWBuNjSsrb7610mVXax.png_640x640.png; | Single package size: | 88X66X192 cm; |
Selling Units: | Single item; | Model Number: | DZ-101; |
Power: | AC220V, 50HZ or customized; | Elongation Accuracy: | 0.001mm; |
Package Type: | Standard Export Plywood Case; | Accuracy: | 0.5%; |
Warranty: | 18 Months; | Place of Origin: | Guangdong China; |
Sensor: | Celtron load cell; | Brand Name: | ZONHOW; |
Capacity: | 10KN, 20KN,30KN,50KN,100KN,200KN; | Speed Range: | 0.1-500mm/min (adjustable ); |
Resolution: | 1/250,000; | Single gross weight: | 250 KG; |
Screw: | high precise ball screw; | Control system: | Servo motor; |
Tensile testing machine price, Universal tensile strength testing machine manufacturer
Tensile test machines are universal testing machines specially configured to evaluate tensile strength of specimens. Our tensile testers will measure characteristics such as ultimate tensile strength, yield strength, elongation and modulus. Each tensile test machine is configured to your testing needs by our application engineers with the correct controller, grips, and accessories. Due to our modular machine design, your tensile tester can also be equipped to perform other applications such as compression, cyclic, shear, flexure, bend, peel, and tear just by adding fixtures.
Application Industries
Universal tensile strength testing machine is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
How to select a tensile testing machine?
Computer Servo Controlled System | ||
---|---|---|
Series | Type | Force Range |
DZ-101 Series | Electromechanical | up to 20 kN (4,500 lbf) |
DZ-101S Series | Electromechanical | up to 300 kN (67,500 lbf) |
DZ-106 Series | Electrohydraulic | up to 500 Kg (1,125 lbf) |
DZ-108 Series | Electrohydraulic | up to 2 MN (450 kip) |
DZ-101 DZ-101S DZ-106 DZ-108
Touch Screen Controlled System | ||
---|---|---|
Series | Type | Force Range |
DZ-102 Series | Electromechanical | up to 200 Kg (450 lbf) |
DZ-103 Series | Electromechanical | up to 500 Kg (1,125 lbf) |
DZ-104 Series | Electromechanical | up to 20 kN (4,500 lbf) |
Temperature Controlled Combined Type (Computer Servo Controlled Tensile Parts) | ||
DZ-110 Series | Electromechanical | up to 300 kN (67,500 lbf) |
DZ-102 DZ-103 DZ-104 DZ-110

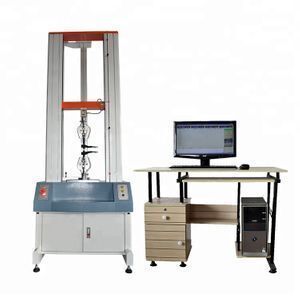

Specifications of DZ-101 Series Universal testing machine
Series | DZ-101 Computer Servo Tensile Testing Machine |
Capacity | 100. 200. 500. 1000. 2000kg |
Unit Switchover | G, KG, N, LB |
Display Device | PC |
Resolution | 1/250,000 |
Accuracy | ±0.5% |
Effective Max. Stroke | 800mm (Column height 1420mm) |
Test Speed | 0.1-500mm/min (adjustable ) |
Motor | Panasonic Servo Motor |
Screw | High Precise Ball Screw |
Elongation Accuracy | 0.001mm |
Power | AC220V, 50HZ or customized |
Accessories parts | One set of tensile clamp, One set of computer, English software CD |
Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!
Note: Above common tensile clamps only for your reference, more applications like compression, bending, shearing, peeling etc test clamps are provided, please contact us for more informarions.
Customer case 1
ZONHOW Though 12 years of continuous development, our company has established the main products line of Universal strength testing machines for tension, compression, flexure, and shear etc. Environmental testing chambers and Cell phone, computer testing machines. Package and paper print test equipment and so on! Our equipment is used in over 80 countries worldwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
1.Are your company a trading one or a factory ?
Factory + trade (integration),12 years focusing on test instruments field,5 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 120 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
Please Send your inquiry Details in the below for our quotation,Click "Send" Now !
