45DF Series High Precision Cam Indexer, cam indexing,Rotary Indexing table for Automatic Filling and Packing Machine

Click here to contact

Product details

Brand Name:	cheng chang;	Place of Origin:	Shanghai China;
Payment Terms:	T/T,Western Union,MoneyGram;

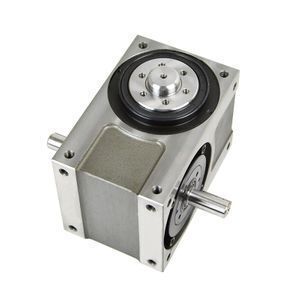

45DF series Cam indexers

Product Description:

Brand:chengchang	Product certification:ISO9001	Processing customization:Yes
Disk diameter:100-350mm	Bearing weight:0-10KG	Mainly applied to:Automatic assembly and testing
Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48
Driving angle:90°,120°,150°‘180°,210°,240°,270°,300°
Cam curve: deformation curve, deformation sine curve and deformation velocity curve.
Rotation direction of cam: left and right.

Standard accuracy:±30 seconds, customizable±15 seconds high precision.

Weight: 7 kg torque limiter (TL): 200 lubricant: 60#

Matching motor: 60W motor speed at 1400 or 1450.

Advantage:

One. Durability

1. cam processing technology is carburizing and grinding, the hardened layer is about 5mm.

2. surface spray paint is diaphragm type dry antirust oil.

3. the internal bearing is imported from Japan, NSK/NTN.

Two. Price concessions. In the same quality, our price is the most favorable.

Three. Large quantities of stock.

Parameter table:

All Allowable radial load of output shaft (C1): 130kgf	Max.repetitive torque on input shaft(C5): 4 kgf-m
All Allowable axial load of output shaft (C2): 140 kgf	CD² on input shaft(Note1): 3.2*10^-4kgf-m²
All Allowable torque of output shaft (Ts): Reference torque table	Indexing accuracy: ±30 Sec.
All Allowable radial load of intake shaft (C3): 85 kgf	Weight: 7 kg
Ma Max.repetitive bending force on input shaft (C4): 110 kgf
