PHF42 Series Planetary Gearbox,Gearbox,planetary gear reducer, servo gearbox

Supplier: Cheng Shen Precision Machinery (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr nianyuan tao
Price: $105.00 /pair
Min. Order: 1 pair

Click here to contact

Product details

Output Speed:	0-3000;	Single package size:	10X4.5X4.5 cm;
Place of Origin:	Shanghai China;	Selling Units:	Single item;
Brand Name:	cheng chang;	Single gross weight:	1 KG;
Gearing Arrangement:	Planetary;	Input Speed:	5000-10000;
Output Torque:	11-20;

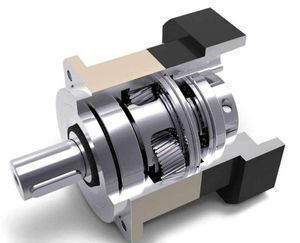

PHF Series Gear Box Internal Structure Diagram

PHF42 series detailed parameters of planetary gearbox:

Reduction ratio:3-100

Rated output torque:11-20NM

Maximum Output Torque:1.5 times rated torque

Rated input speed:5000RPM

Maximum input speed:10000RPM

Backspace:≤ 2-8 Arcmin

Average service life:20000h

Full-load transmission efficiency:≥ 97%

Use temperature range:-10~+90℃

Lubricating grease:Total synthetic grease

Noise value :≤56dB

Protection level :IP65

Weight :0.6-0.9KG

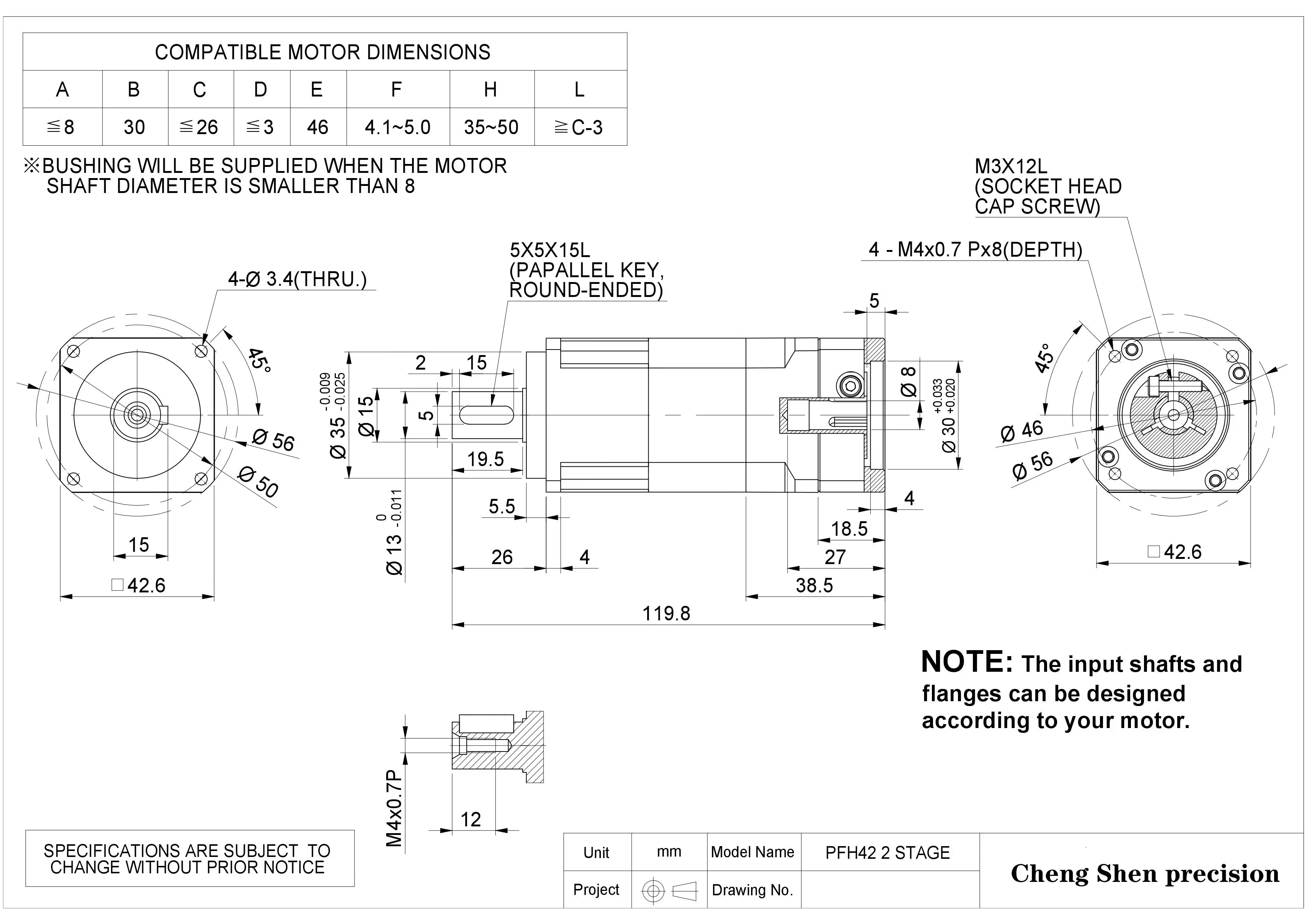

PHF42 Dimension Diagram

PHF42 1 STAGE(ratio:3-10)

PHF42 2 STAGE(ratio:15-100)

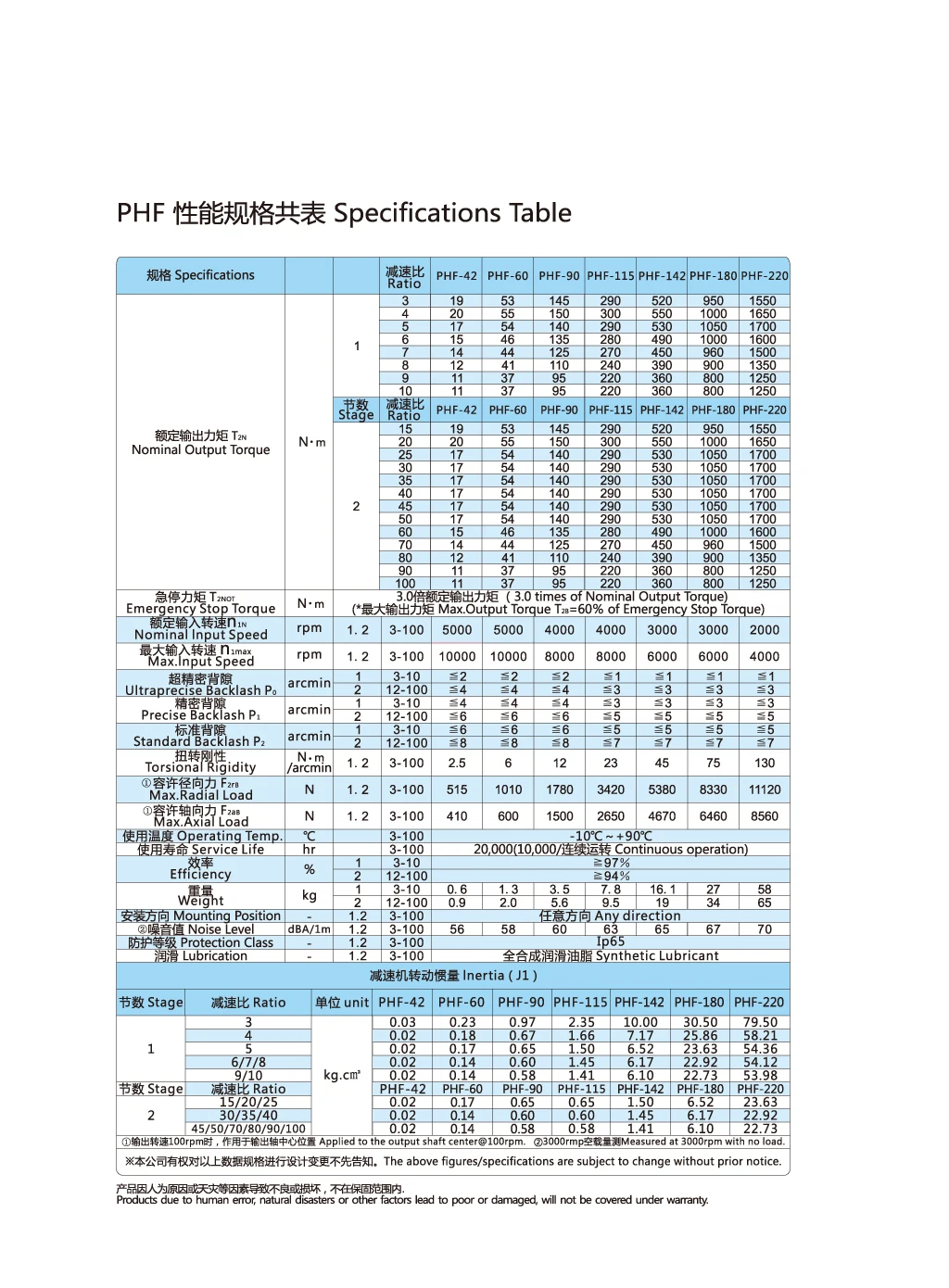

PHF Series Performance Table
