80DT Series High Precision Cam Indexer, cam index,Rotary Indexing tables effectively improve product efficiency

Click here to contact

Product details

Single gross weight:	25.000 KG;	Place of Origin:	Shanghai, China;
Packaging Detail:	Wooden box or carton;	Single package size:	30X30X25 cm;
Selling Units:	Single item;	Brand Name:	cheng chang;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Retail,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;

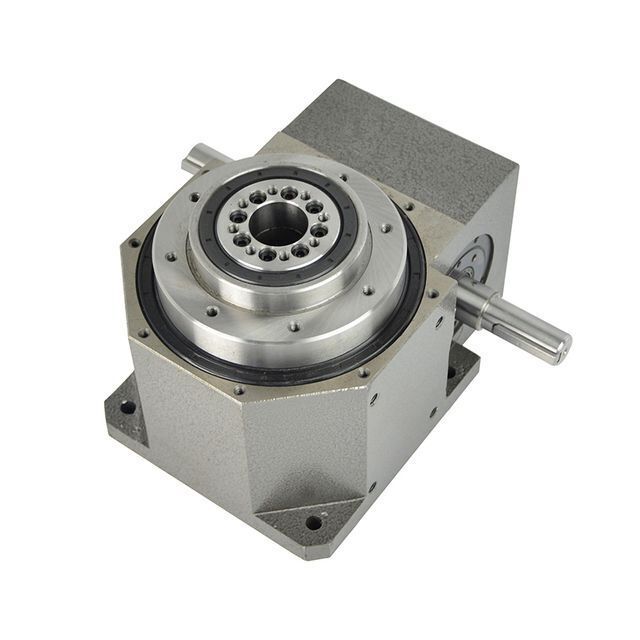

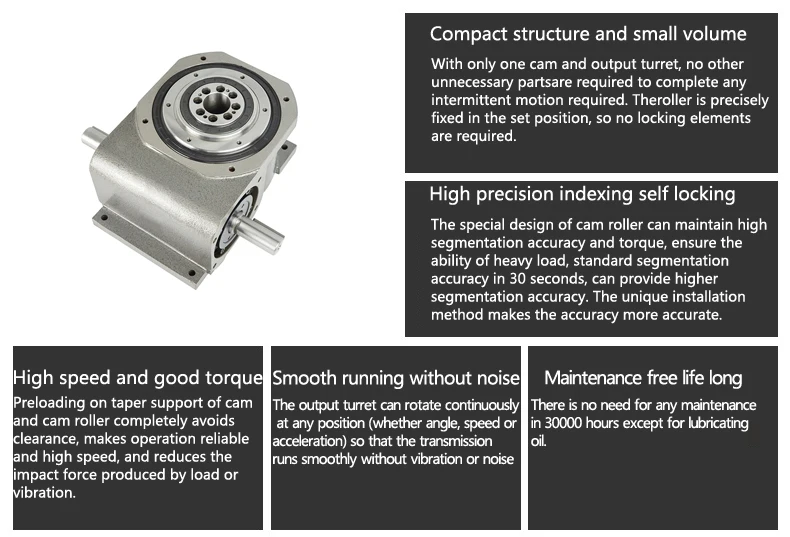

80DT Series Cam Indexer

Product Description:

Brand:chengchang	Product certification:ISO9001	Processing customization:Yes

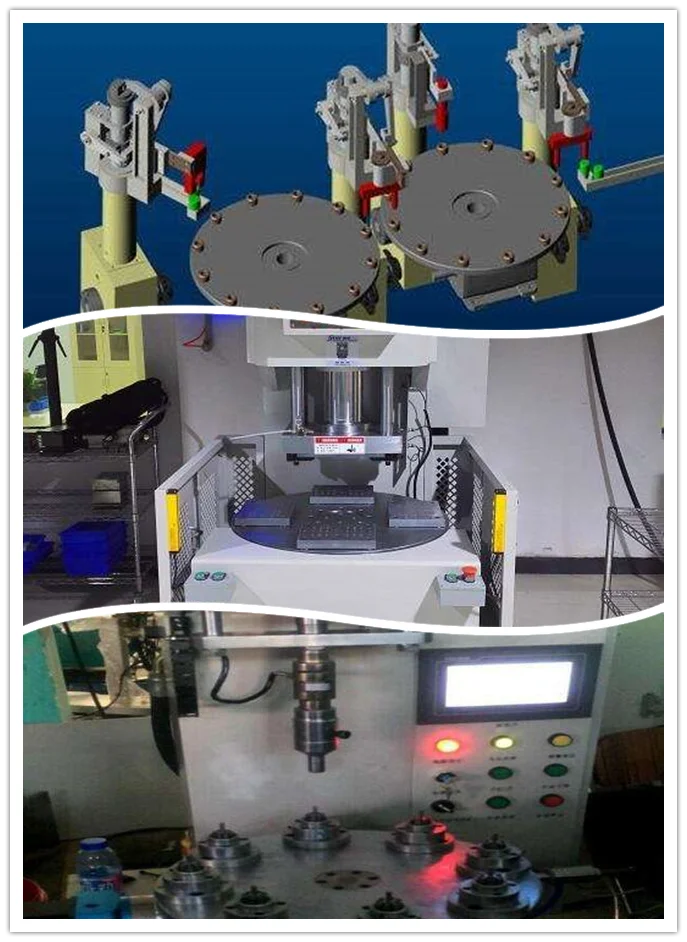

Disk diameter:250-700mm	Bearing weight:0-45KG	Mainly applied to: Automaic assembly machine, printing press
Location and segmentation of equal parts:2,3,4,5,6,8,10,12,16,20,24,30,32,36,40,48
Driving angle:90°,120°,150°‘180°,210°,240°,270°,300°
Cam curve: deformation curve, deformation sine curve and deformation velocity curve.
Rotation direction of cam: left and right.

Standard accuracy:±30 seconds, customizable±15 seconds high precision.

Weight:20 kg torque limiter (TL): 350 lubricant:90-140#

Matching motor: 200W motor speed at 1400 or 1450.

Advantage:

One. Durability

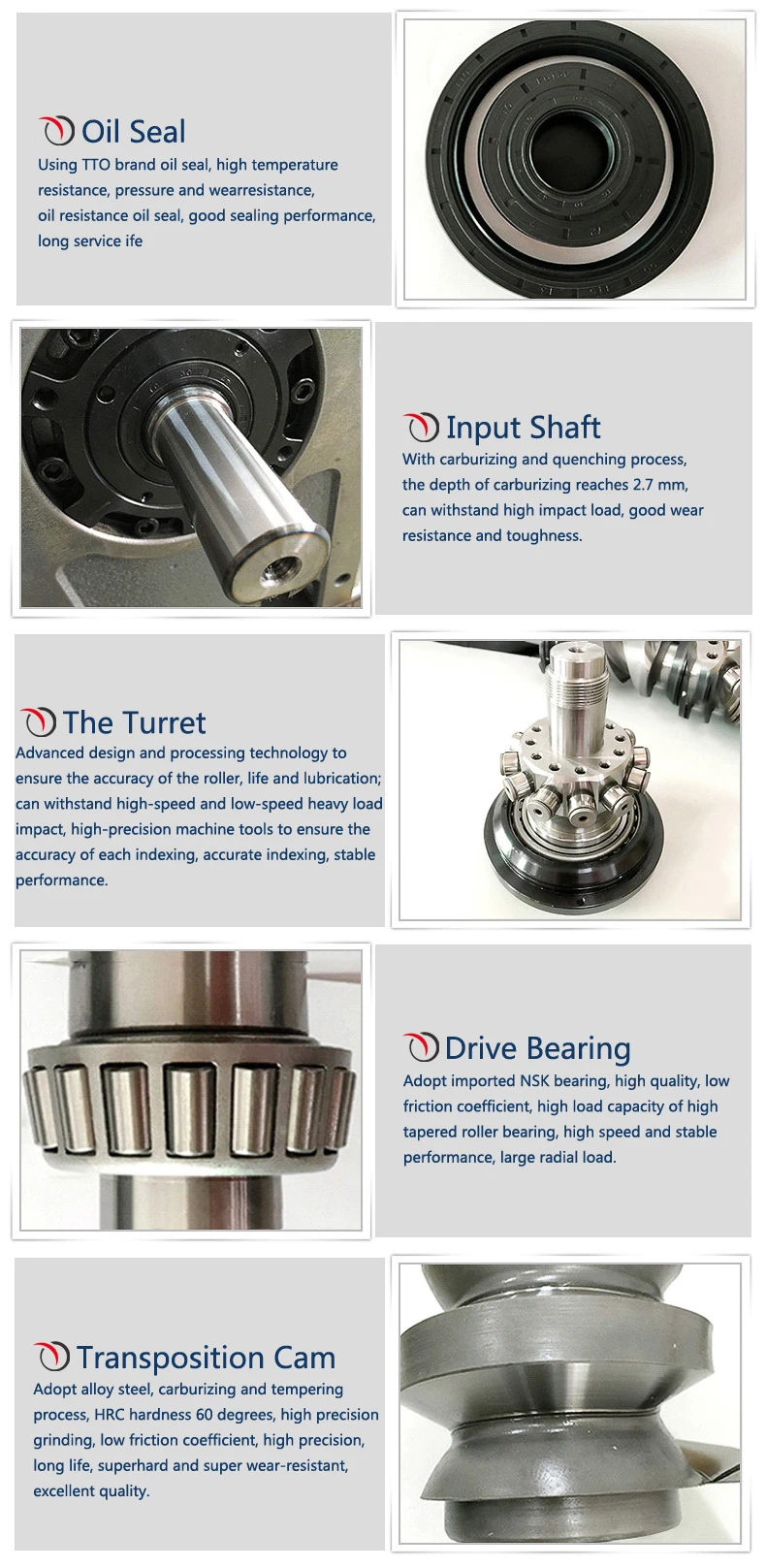

1. cam processing technology is carburizing and grinding, the hardened layer is about 5mm.

2. surface spray paint is diaphragm type dry antirust oil.

3. the internal bearing is imported from Japan, NSK/NTN.

Two. Price concessions. In the same quality, our price is the most favorable.

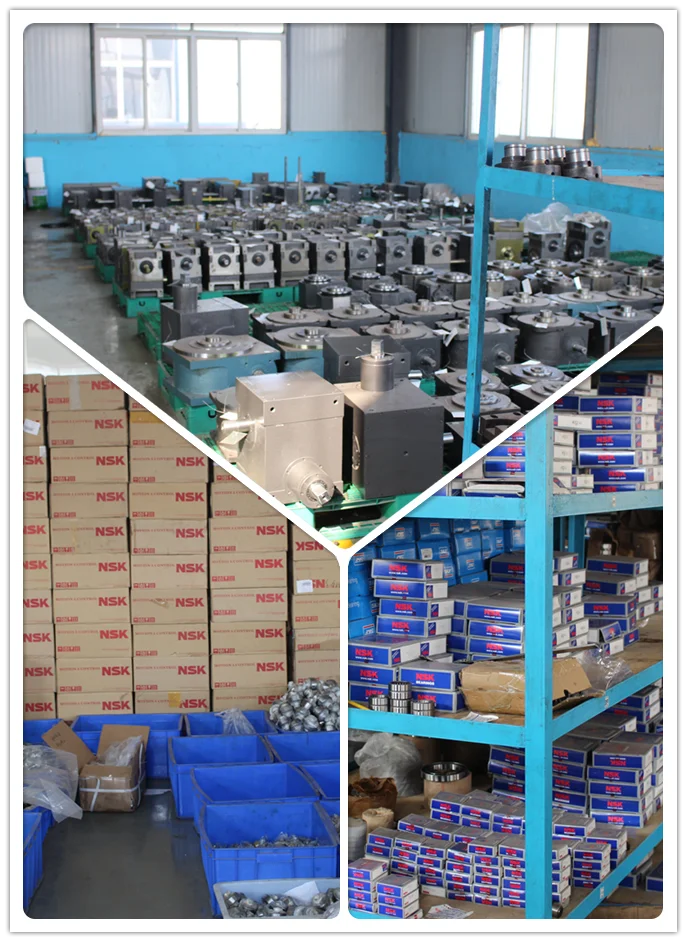

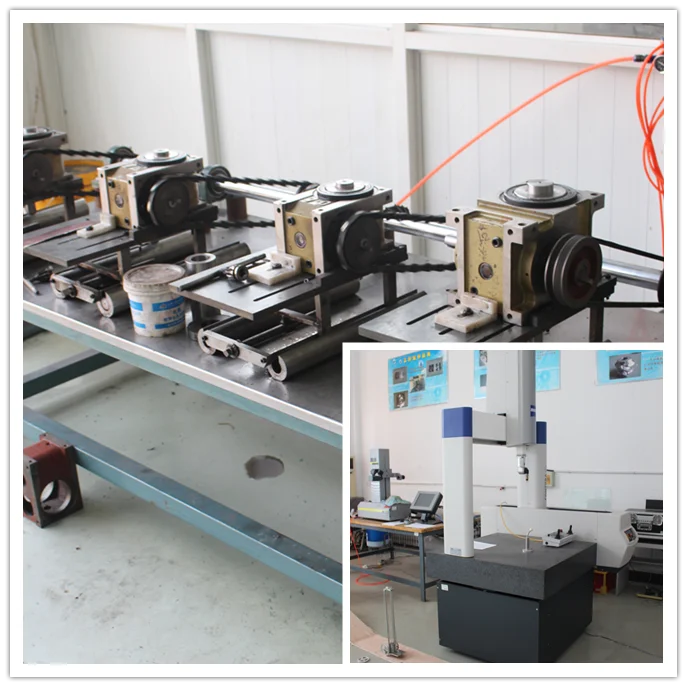

Three. Large quantities of stock.

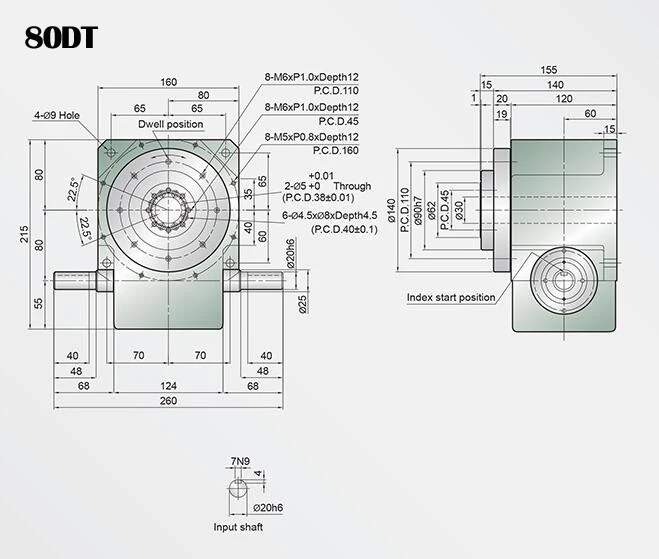

Parameter table:

All Allowable radial load of output shaft (C1): 520 kgf	Max.repetitive torque on input shaft(C5): 9.5 kgf-m
All Allowable axial load of output shaft (C2): 220 kgf	CD² on input shaft(Note1): 0.03 kgf-m²
All Allowable torque of output shaft (Ts): Reference torque table	Indexing accuracy: ±30 Sec.
All Allowable radial load of intake shaft (C3): 220 kgf	Weight:20 kg
Ma Max.repetitive bending force on input shaft (C4): 160 kgf
