Place of Origin: | Zhejiang China; | Max.Temp.(plate surface): | 450℃; |
Packaging Detail: | Standard export packing; | Classification: | Laboratory Heating Equipments; |
Heating power: | 80w; | Supply Ability: | 500 Piece/Pieces per Month; |
Brand Name: | CHINCAN; | Voltage: | 220V / 50Hz; |
Model Number: | 98-II-B; | Port: | shanghai; |
Payment Terms: | L/C,T/T,Western Union; | Warranty: | 1 Year; |
Working time: | continuous; |

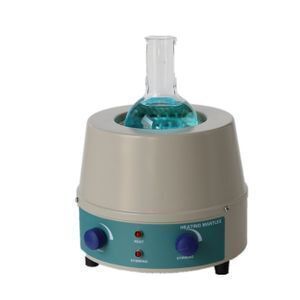

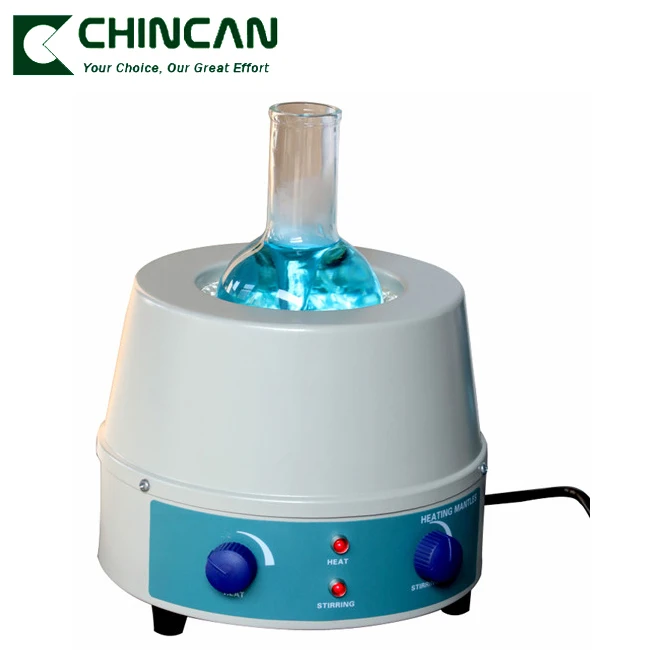

CK 98-II-B Magnetic Stirring Heating Mantle
CK 98-II-B Lab Heating Mantle
Summary
It applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating and stirring.
Features
1.Cold rolling sheet stretching and spraying exterior.
2.Electronic temperature regulation heating mode and magnetic stirring; with characteristics of large heating
area, fast warm-up, high temperature evenness, accurate tem-control, time and cost saving.
3.Heating and stirring can proceed simultaneously; stepless speed adjustment.
Specifications
Model | 98-II-B | ||||||||||
Function | Capacity (ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
Heating Mode | Surface heat-conduction | ||||||||||
Surface Max. Temp. ( ℃) | 450℃ | ||||||||||
Speed range | 0~1600rpm | ||||||||||
Structure | Heating element | Nichrome wire | |||||||||
Stir bar | PTFE | ||||||||||
Shell | High quality aluminum silicate cotton | ||||||||||
Motor power | 0.01kW | ||||||||||
Heating power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 | |
Controller | Working Mode | Continuous | |||||||||
Specification | Exterior Size (mm) | 220×165 | 280× 220 | 330× 230 | 340× 245 | 350× 250 | 425× 320 | 470× 340 | |||
Packing Size (mm) | 230×230×195 | 290× 290 ×300 | 340× 340 ×350 | 360× 360 ×300 | 390× 390 ×310 | 380× 380 ×330 | 510× 510 ×380 | ||||
Voltage(V) | 100~120V or 200~240V | 200~240V | |||||||||
N.W.(Kg) | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 | ||||
G.W. (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 |
Dispensing Peristaltic Pump Magnetic Hot Plate (heating) Centrifuge
Vacuum Drying Oven Hematology Analyzer Biochemistry Analyzer
This year Shipping shows:
Packing Details: Standard export packing and neutral packing if needed, carton box, wooden case or upon request, packing carefully.
Delivery time: Within 15 working days after the receipt of payment.
Shipping Method: Air / Sea / Express: DHL TNT FedEx UPS EMS, etc.
