Laminate Flooring Production Line

production line explanation:

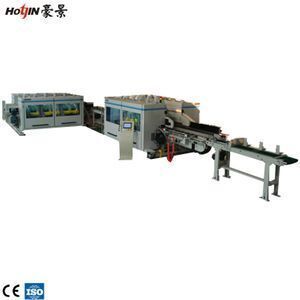

Flooring double end tenoner production line Hotjin FPR, That is our company new heavy-duty DTE series, it adopts the whole frame structure,upper pressing belt use active, stable performance and reliable quality, this machine process capability is improved greatly.

Technical parameters

A.Floor size: Length:400-1500(2500)mm
                             Width:120-400(600)mm
                             Thickness:6-25mm
B.Speed of production line:80-100 m/min
C.Direction of production line:Right
D.electric control:Working voltage: 380V,50Hz
                                      Control voltage: 220V,50Hz &24V (DC)
                                      Total power: 163KW
E.Air Pressure: 0.6-0.8Mpa
       Air capacity: 3 m³/h
F.Equipment's color:
Main body: RAL7035 greyish white
Lines of body: RAL5012 light blue
Warning color: RAL1016 LY.yellow
G.Capacity count:

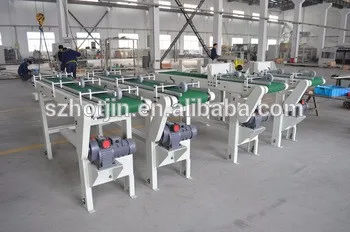

Feeding rolling table---front (Model:GTK4.1)

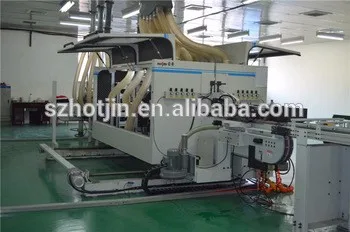

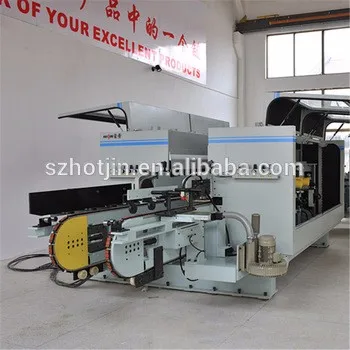

Longitudinal double end tenoner(Model: DTE6/06/10D+2K(K.Z)

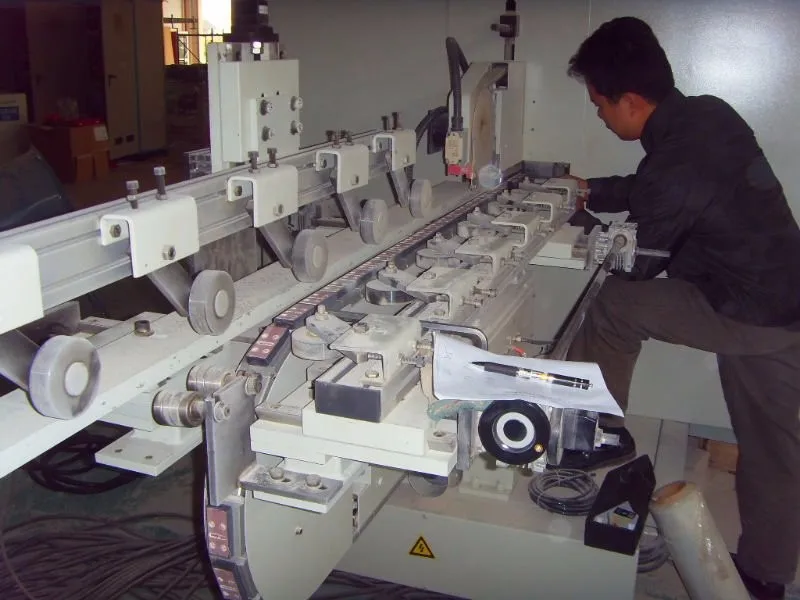

Function: It used in the forming processing of the long side of plate, is six stations 10 shafts. One station is space, double chain. K series use L type chain pad, Z series use narrow chain and narrow chain pad.

Basic configuration:
1.Double chain,straightness precision is 0.02mm;lead rail main body use alloy material, hardness about 650;
2.The chain is bearing rolling,error of pitch is 0.005mm;
3.Upper press with manual adjustable to meet corresponding floor thickness, it use widen V speed chage belt to ensure synchronize;
4.Adjustable fixed running rule of left side;
5.Adjustable elasticity side pinch roller of right side;
6.Passive elasticity upper press roller of feeding port;
7.Have blower system in chain, make sure chain inside positive pressure, reduce dust into;
8.Tool tip use slider to control height difference, chain pad the same height, the precision of height is 0.02mm;
9.The tool tip upper press use high wearing spray painting alloy material, use air pressure to bring steady pressure, the air pressure can adjust;
10. Have 5 motors in each side, have a space station, each station has a Dia. 120mm dust hood;
11. Under each cutter shaft have a dust hood inside machine body, it can suck omissive dust again
12. The cutter shaft use T lead screw adjust, show distance on the numerical indicator, have dialgage delicate adjusting, the precision can achieve to 0.01mm;
13. Adjust angle of cutter shaft by turbine worm system, it use screw rotate can 3600 adjust, easy to use;
14. The equipment have noise enclosure, inside has noise cotton;
Parameter of the main machine:
1.Working width:120-400(600)mm
2.Working thickness: 6-25 mm
3.Height of working table:1100 mm
4.Rotate speed of cutter shaft:6000-7000 rpm
5.Feeding speed:50-100 m/min
6.Motor power of cutter shaft: (Inverter control)
The 1st station power (each left and right):8 kw,precutter,+45°,up milling Φ250
The 2nd station power (each left and right):11kw,precutter,-45°,up milling Φ250
The 3rd station power (each left and right):8kw,profile-cutter,+90°,up milling Φ250
The 4th station power (each left and right):11kw,finish-cutter,+90°,up milling Φ250
The 5th station power (each left and right):8kw,click-cutter,+(-)45°(22.5°),up milling Φ250
The 6th station power (each left and right): space
7.Feeding motor power: 7.5 kw(Inverter control)
Blower motor power:2.2kw X2
Width adjusting motor: 1.1kw
8.Cutter diameter: Φ220-250XΦ40
About cutter we suggest use hydraulic system , the other motor need to notes specially.
9.Dust hood diameter
Station 1st 2nd 3rd 4th 5th 6th:Φ120mmX12
Machine cover diameter:120mmX2
10.Weight:9000 Kg

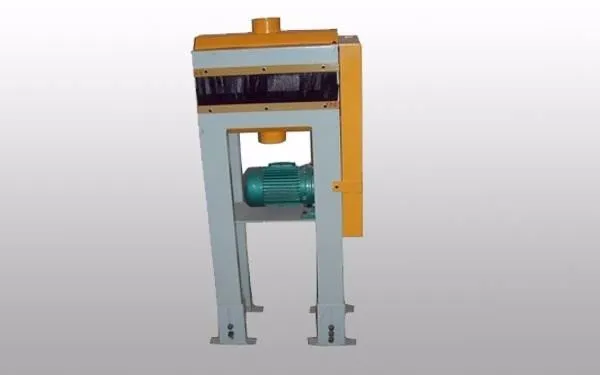

Longitudinal brushing machine(Model: SGP400)

Function:It use to brush dust on workpiece surface after longitudinal grooving.
1.Width:400mm
2.Height:1100mm
3.Power:1.1KW
4.Weight:100KG

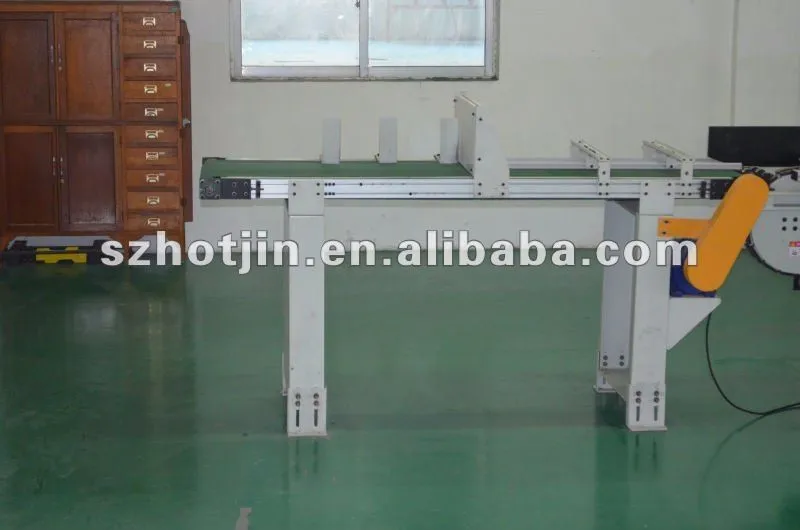

Feeding rolling table---center (Model:GTK4.2)

Function:convey.
1.Length:2400mm
2.Width:400mm
3.Speed:adjustable,40-100m/min
4.Motor power:1.1KW
5.Weight:200KG

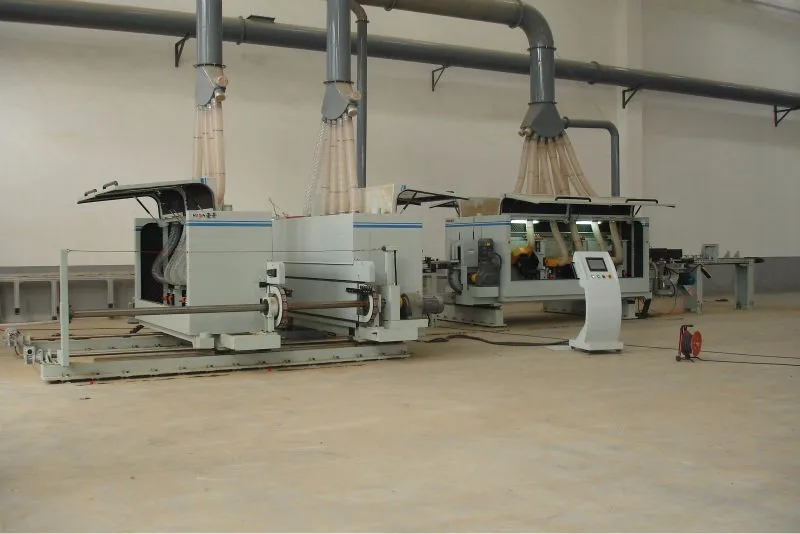

Transverse double end tenoner(Model: DTH6/15/10D+2K)or(Model:DTH6/25/10D+2K)

Function:DTE series machine, it used in the forming processing of board's two short sides, it uses six stations, install 10 shafts, has a space station.
