Laminate SPC Floor Automatic Turning Equipment Turning Machine

Product details
Video external inspection:provide, provideMarketing Type:normal product
Supply capacity:20 sets per monthport:Shanghai
Warranty:1 yearHealth status:new
place of origin; place of origin:Jiangsu, Chinaweight:1000 kg
Applicable industries:Manufacturing plants, building materials stores, machinery repair shops, manufacturing plantsCore Components Warranty:1 year
strength:5kWProduction capacity:60/min
payment terms:letter of credit, wire transferShowroom location:Turkey, Vietnam, India, Russia, Malaysia
Packaging Preview:brand:Hallmark
Packaging Details:Small and important pieces are packed in plywood boxes, and large and common pieces are bundled and uncovered. Packaging will be as per export standardMechanical test report:provide, provide
Voltage:380/customCore components:Bearing, PLC, Motor, Gearbox, PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Main selling point:high productivity
product description

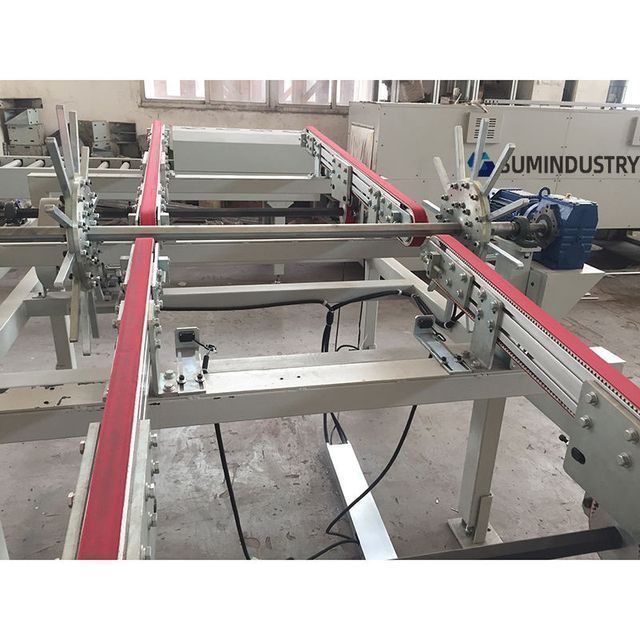

Automatic panel flipping equipment

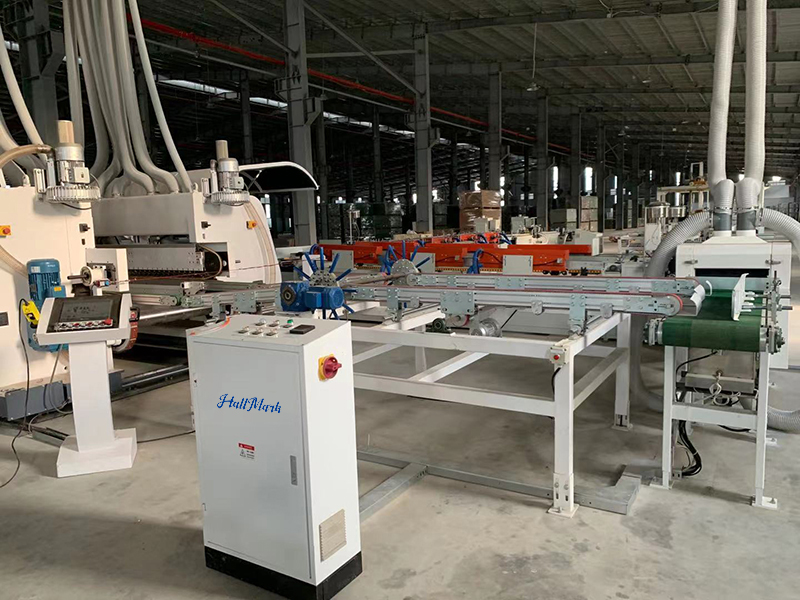

Laminate/SPC Flooring Production Line
The floor is automatically turned over by wheels and transported to the next station.
1. There are forward and reverse rotation, and the corresponding operation is performed according to the needs; 2. Frequency conversion control, the speed can be adjusted 3. The electrical components adopt well-known brands, and the quality is guaranteed

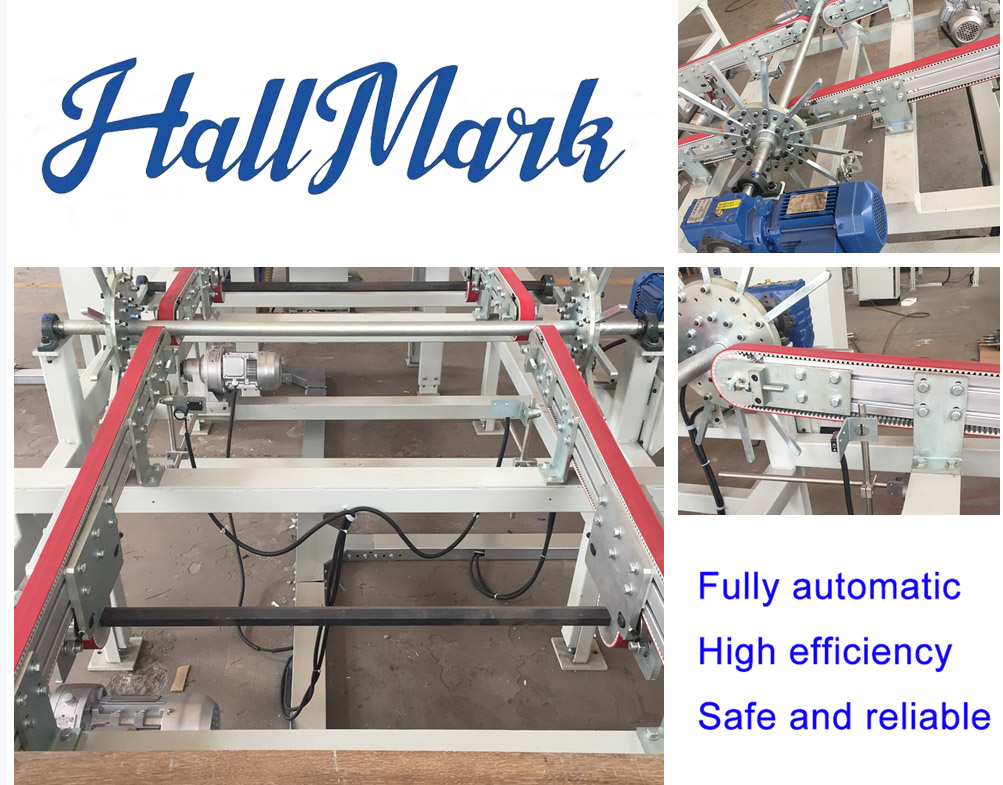

feature:
Fully automatic
high efficiency
Safe and reliable
easy to operate

Device parameters
thing
scope
transfer speed
20-40m/min
feed motor
Inverter control, 0.37KW
Turnaround motor
Inverter control, 0.37KW
Outlet conveying motor
Inverter control, 0.37KW
Panel Turnover Direction
Forward or reverse
Equipment size
3650*1800*1100mm

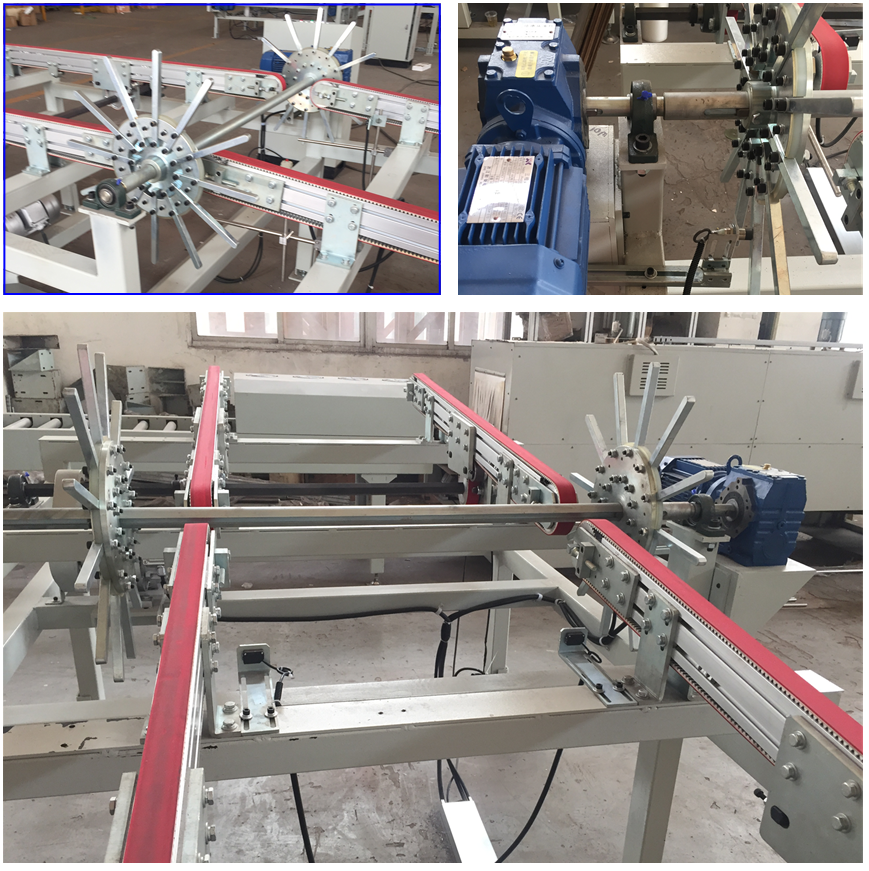

detailed picture
Automatic panel flipping equipment
Frequency conversion control, speed adjustable
Well-known brand electrical components (such asSchneider, Mitsubishi, Siemens), quality assurance
