Fully automatic laminate flooring production line laminate flooring production line

Supplier: Changzhou Sum Industry Limited
Region: Jiangsu, China
Contact: Mr Alexnader Wang
Price: $600000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Preview:		brand:	Hallmark
Packaging Details:	Important items are packed in wooden boxes.	Health status:	new
application:	wood	weight:	400kg
speed:	4000-6000 pieces/hour	place of origin; place of origin:	Jiangsu, China
type:	Laminating machine	Function:	manufacture
usage:	cut wood	year:	2022
Machine Color:	grey	payment terms:	letter of credit, wire transfer
Panel thickness:	8,10,12mm	Mechanical Capability:	100 sheets/hour
Name:	Automatic Laminate Flooring Production Line	Supply capacity:	100 sets per year
Key machines:	Sawing Machines, Spindle Forming Machines, Finger Jointing Machines, Presses	Key words:	wood cutting machine
Auto grade:	automatic

Automatic line flow chart

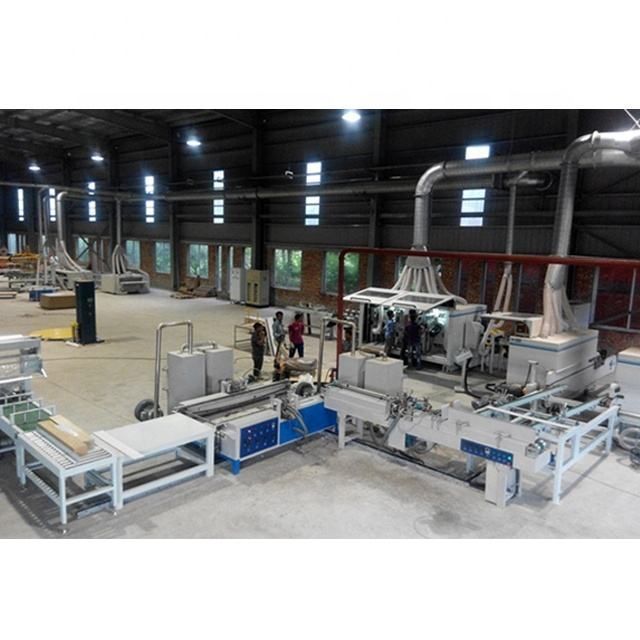

Fully automatic laminate flooring production line

What machines are needed to install a laminate flooring production line?

1. Short cycle bonding line
Cover paper, decorative paper, HDF board and balance paper are pressed together by a short cycle press with high pressure, high temperature and short cycle time.

Short cycle hot pressing line for laminate flooring parameters

Model	pressure (kN)	Board size (mm)	Master cylinder diameter (mm)	Number of cylinders (pc)	Unit pressure (kg/cm2)	Calorie consumption (kcal/hour)
YXS-2800	28000	12202440 (4'8')	φ420	8	94	15x10
YXS-3200	32000	12202440 (4'8')	φ450	8	107.5	15*10
YXS-5600	56000	20702800 (7'9')	φ480	12	96.26	30*10

Other sizes can also be customized

2. Cutting line

The main function of this line is to cut the large plate into some small plates; it can cooperate with the front and rear automatic loading and unloading system to complete the automatic feeding and discharging.

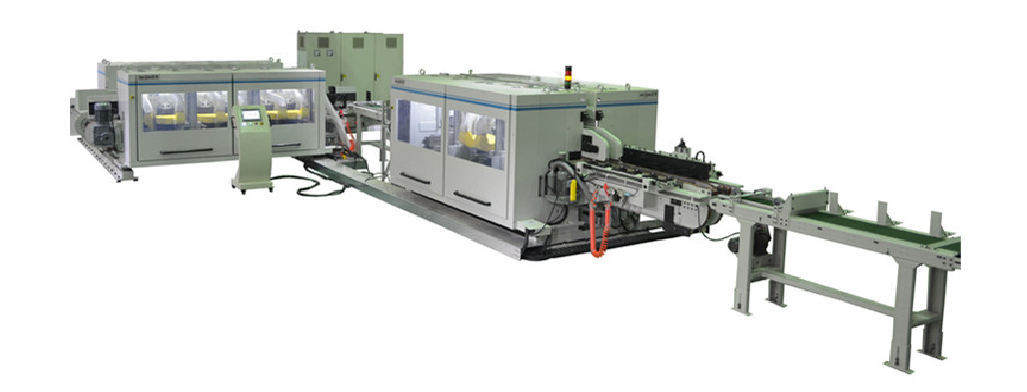

3. Double end milling production line

It is used for forming the long and short sides of the sheet. Can be used with automatic feeding system
And connect the V-groove spray painting and sealing wax line, and the back automatic packaging line. Advanced design, simple structure,
Simple operation, high degree of automation and reliable performance.
There are 5+5 station and 6+6 station production lines, each cutter shaft can be freely rotated at different angles.

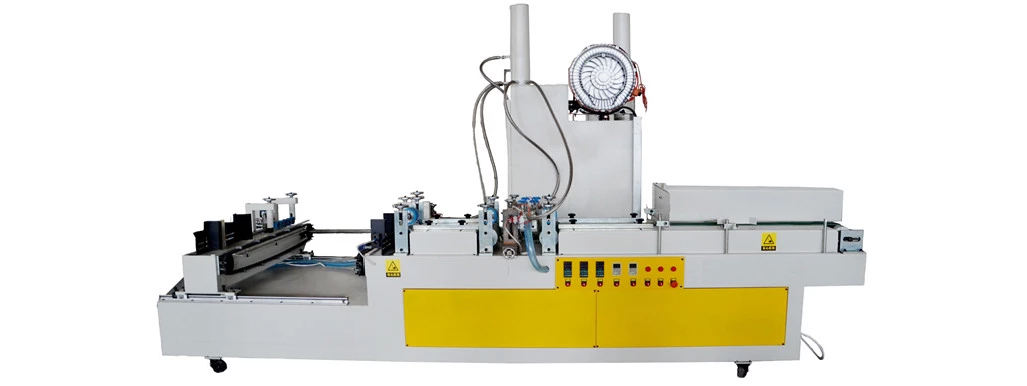

4. V-groove coating line

For floor V-groove, use water-based paint, dry the short side first, then the long side. painted floor
The waterproof performance is improved, which is beneficial to the splicing of the floor.

5. Sealing wax line

All grooves of the laminate floor are waxed to ensure waterproofing and facilitate the connection of the floor.

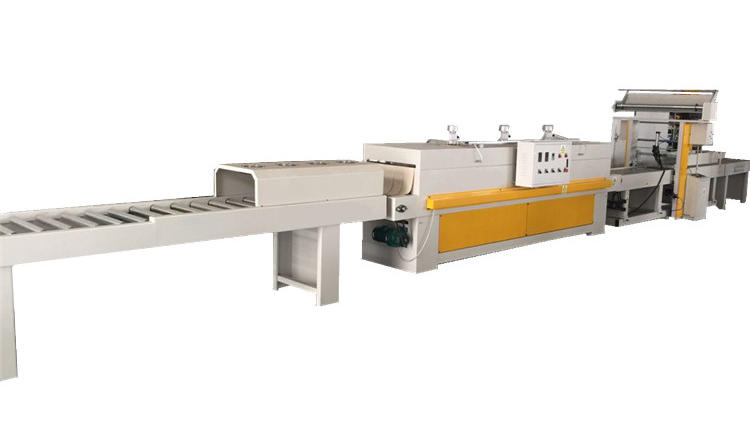

6. Packaging line

Realize automatic lamination shrink function.
High winds, then, objects automatically slide to the floor stacking area on the slide. There is also a fully automatic
wire, automatically pack the board in a dust-free box, and heat shrink (optional).
