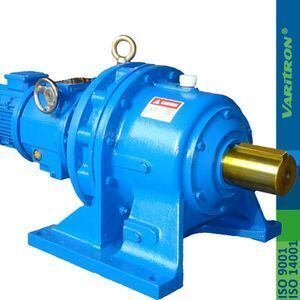

Varitron High Quality Durable speed Reducer Gearbox 0.75kw cycloid

Supplier: VARITRON ENGINEERING (TAIWAN) CO., LTD.
Region: Taiwan, China
Contact: Ms Adeline Chiu
Price: $160.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	0.75kw cycloid;	Material:	Gear: Bearing Steel;
Supply Ability:	400 Set/Sets per Week;	Gearing Arrangement:	Cycloidal;
Input Speed:	1800 @ 60Hz , 1500 @ 50hz;	Input pole:	2P , 4P , 6P , 8P;
Speed Reducer type:	cycloid Gearbox;	Interchange with:	Sumitomo;
Ratio:	1/6 to 1/57289761;	Place of Origin:	Taiwan, China;
Certificate:	ISO9001;	Cyclo Drive Type:	6000 Series;
Output Speed:	300rpm to 0.0000012rpm;	Packaging Detail:	0.75kw cycloid Gearbox packed in Crate or Wooden boxes to ensure Highest protection and minimum damage;
Efficiency:	95% on single Stages;	Port:	Taiwan Taipei;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;	Production Standard:	ISO , JIS , DIN , CNS , CE , ROHS;
Output Torque:	7.5 nM & above;	Brand Name:	Varitron;

<< More Information is Available upon Request >>

Quality Gear box by Varitron from TAIWAN

Varitron High Quality Durable speed Reducer Gearbox 0.75kw cycloid

Product Description

The VARITRON Cycloidal Drive unique cycloid gear design has advantages superior to common involute tooth gears system speed reducers.

VARITRON's Cycloidal Drive matchless performance and reliability is that 67% of the reduction components are in contact at all times, compared to helical gear and planetary gear designs that use only limited tooth contact. Unlike geared designs, the Varitron's reduction components operate in compression rather than shear, which results to withstand shock loads exceeding ratings of 500%, provide exceptional performance, reliability and long life in most severe applications.

Main Features

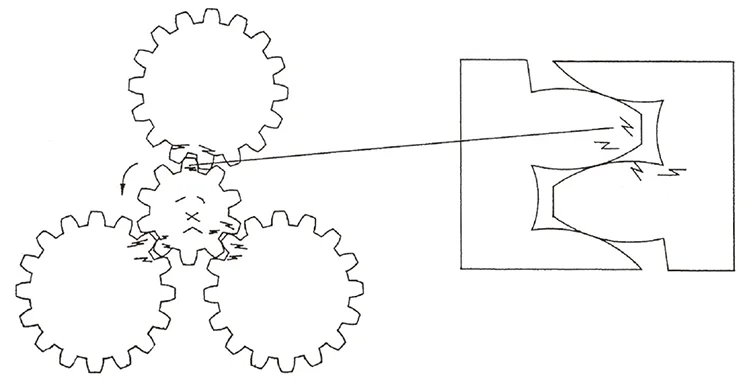

- Involute gear has slip contact with less contact ratio

- Varitron cycloidal drive has smooth rolling contact

- Durable and Long Service Life

The gear tooth profile of the VARITRON Cycloidal Drive enables the sharing of the load by a number of teeth, thus not susceptible to tooth breakage. At least 66% of ring gear rollers and cycloid disc loves share the shock load under compression. In addition, major torque transmission components inside the VARITRON Cycloidal Drive are made of 52100(JIS SUJ2) high carbon chromium bearing grade steel hardened to Rockwell Hardness of HRC 61~63 andwith precision grinding. The end result is that VARITRON Cycloidal Drive are capable of withstanding intermittent shock load up to 500% of its catalog torque rating.

- High Efficiency

Rolling Contact-All major torque transmitting components roll; they do not slide. Rolling motion contributs to minimal frication and high efficiency approaches 93%, anddouble stage efficiency approaches 93%, and double stage efficiency approaches 86%.

- Simple Maintenance

Lifetime grease lubrication or easy-to-replenish oil lubrication.

- Housing

Standard gray cast iron(JIS FC25) iron provides rigid structural integrity. Optional ductile iron housing(JIS FCD45) available.

- Output Shaft

High Strength Low Alloy Stell(JIS SCM21) with oversized bearings for excellent overhung load capacit and outstanding performanc.

- Dual Lips Oil Seal

Keeps lubricant in; keeps dirt out. (for flange model 8165 and above double dual lips oil seal on output side)

- Side Window (Oil Lubricate Models)

For easy oil level and clarity reading. Installing side can assign on ordering. Markers also on the side window to show how mcuk oil to fill.

- BREATHER FILLER CAP

Large oil filler hole. Oil cap also functions for pressure release purpose.

- Drain Plugs (Oil Lubricated Models)

Magnetic drain plugs design to prevent any steel dust from bearingor gear when wear in the oil. Drain plugs on double side for simple oil replavement.

Cycloidal Drive Construction Drawing

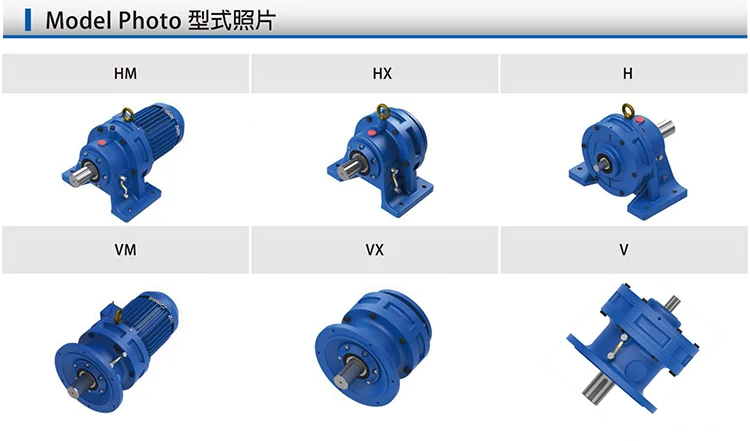

Cycloidal Drive Model

Cycloidal Drive Operation Direction

Quick Facts

Model Number	Varitron High Quality Durable speed Reducer Gearbox 0.75kw cycloid
Speed Reduction Method	Internal planetary gear mechanism with trochoidal curved tooth profile design speed reduction
Efficiency	95% per stage gear box (Rolling motion minimizes friction and wear, reducing heat)
Shock Load	500% as there are only compressive forces rather than shear forces on the tooth
Gear Box Mounting	Flange or Foot mounting
Gear Reduction Ratio	Up to 1:87 per stage 1:7569 Double stage 1:658,503 Triple Stage
Capacity Range	0.1 to 75kW * 4Pole / 0.37 to 132kW * 6Pole
Enclosure	Totally enclosed fan cooled type IP54 or IP55
Power Source	Three Phrase 200-480V 50/60Hz (single phrase 0.2 to 3.7kW)
Thermal Class	F Class , H Class
Time Rating	Continuous Rating
Gear Box Lubrication Method	Grease lubricated or Oil Lubricated (oil Pump lubrication avaliable)
Method of Coupling with Driven Machine	Coupling, gears, chain sprocket or belt
Standard	CE, UL, CSA, CCC, ISO 9001, ISO 14001
Warranty	1 Year Limited Warranty

Cycloidal Drive How to order

<< More Detailed Information You May Needed >>

E-Catalog

http://gear.fyi/cyc

Video

http://gear.fyi/vid

Website

http://gear.fyi/cyclo

Applications

Agitators Mixers, Brewing and Distilling, Conveyors, Extruders, Food industry, Metal Mills, Hammer mills,
Paper Mills,Lumber Industry, Rubber & Plastics Industries, Sewage Disposal Equipment, Oil Industry,
Textile Industry, Sugar Industry, Dry Dock Cranes.. and many more

Packaging & Shipping

Gearbox will be delievery with crate or wooden box.
