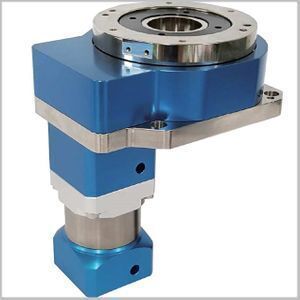

Varitron O027 high rigidity Hollow Shaft Rotating gearbox HRP

Supplier: VARITRON ENGINEERING (TAIWAN) CO., LTD.
Region: Taiwan, China
Contact: Ms Adeline Chiu
Price: $110.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Hollow packed in Crate or Wooden boxes to ensure Highest protection and minimum damage;	Gearbox Shaft Type:	Bore, Solid shaft, flange;
Color:	Blue / silver;	Brand Name:	VARITRON;
Efficiency:	95%;	Gear Ratio:	1/3 to 1/10000;
Supply Ability:	500 Set/Sets per Week Quantity Volume Hollow can be manufactured;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Port:	Taipei;	Enclosure:	Totally enclosed IP55 / IP65;
Model Number:	HRP060, HRP100, HRP130;	Delivery Detail:	Shipped in 5 days after payment;
Quality Control System:	ISO 9001;	Place of Origin:	Taiwan, China;
Product name:	Hollow;	Product series:	Hollow;
Motor:	servo motor, nema motor, stepper motor, others;	Warranty:	1 Year;

Quality Hollow by Varitron from TAIWAN

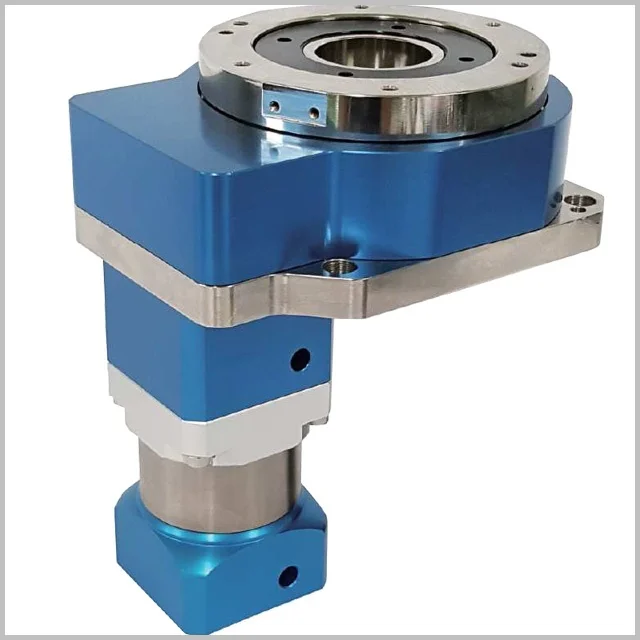

Varitron O027 high rigidity Hollow Shaft Rotating gearbox HRP

Product Description

Main Features

-High Precision Gear
The Hollow and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision. (model:HRP-H)

-High Torque and Stability

High tensile strength alloy steel and improved gear hardening technics employed to maintain high accuracy and long service life.

-Quiet Operation
Feature design to reduce vibration and noise to under 65dB.

-Direct fixing arrangement with a simple and reliable design

-Large hollow rotary table for integrated throughput for application wiring and piping

-Low backlash with 5 arc-min

-Hollow bore for wiring or shafts, driven by your servo motor via large helical ring gear integrated in a rotating flange, which provides smooth, accurate, fast positioning and indexing

-Flange rotates on precision high capacity “cross roller” type bearing for positional accuracy, rigidity and heavy axial loads

-Larger reduction ratios achievable by fitting with a planetary gearbox (DH series) or right angle gearbox

-Modular Design of Motor Connection Plate
The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.

-Modular Input Shaft

Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.

Model

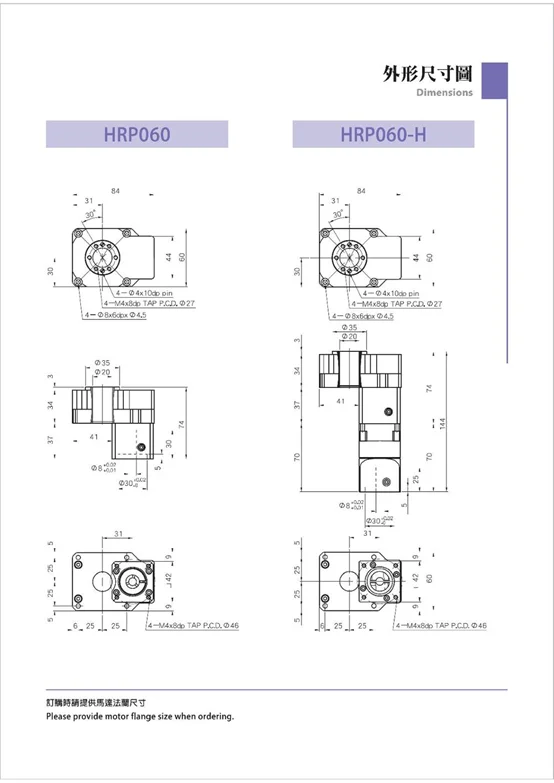

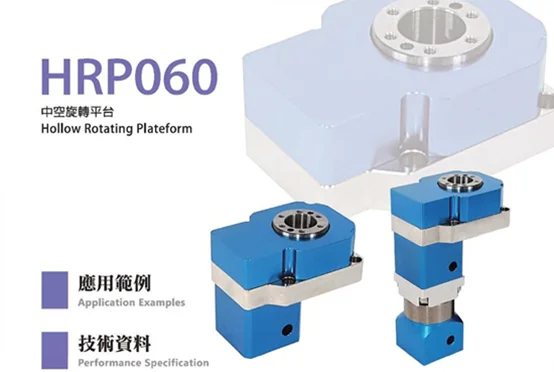

Model	HRP060	HRP060-H
Varitron O027 high rigidity Hollow Shaft Rotating gearbox HRP Bearings	Deep groove ball bearings + Thrust roller bearings
Output Torque	5
Service Life	15000
Input Speed	200
Ratio	5	5*(4,5,7,10)
Repeat accuracy	±10	±10
Position accuracy	≤1	≤1
Hollow Parallelism	±0.01
Hollow Concentricity	≤0.01
Protection Rank	IP40
Weight(kgs)	1.1	2.1

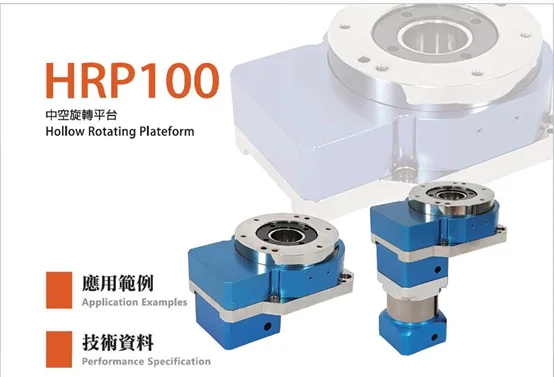

Model	HRP100	HRP100-H
Varitron O027 high rigidity Hollow Shaft Rotating gearbox HRP Bearings	Deep groove ball bearings + Thrust roller bearings
Output Torque	45
Service Life	20000
Input Speed	200
Ratio	8	8*(3,4,5,7,10)
Repeat accuracy	±5	±5
Position accuracy	≤1	≤1
Hollow Parallelism	±0.05
Hollow Concentricity	≤0.01
Protection Rank	IP40
Weight(kgs)	3	4.2

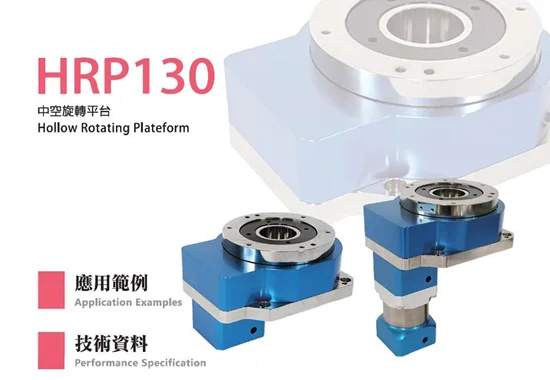

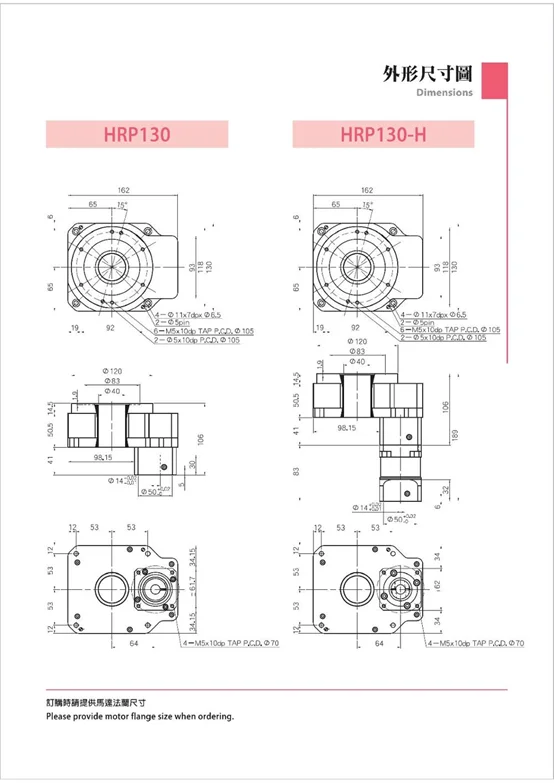

Model	HRP130	HRP130-H
Varitron O027 high rigidity Hollow Shaft Rotating gearbox HRP Bearings	Deep groove ball bearings + Thrust roller bearings
Output Torque	45
Service Life	20000
Input Speed	200
Ratio	10	10*(3,4,5,7,10)
Repeat accuracy	±5	±5
Position accuracy	≤1	≤1
Hollow Parallelism	±0.005
Hollow Concentricity	≤0.01
Protection Rank	IP40
Weight(kgs)	5	6.2

Quick Facts

Model Number	Varitron O027 high rigidity Hollow Shaft Rotating gearbox HRP
Speed Reduction Method	Hollow mechanism with designed tooth profile
Efficiency	95% per stage gearbox
Shock Load	300% as there are only compressive forces rather than shear forces on the tooth
Gear box Mounting	Flange Mounting, Foot mounting parts sold separately
Reduction Ratio	Up to 1:10 per stage 1:1000 on 3-stages
Capacity Range	100Watt to 11,000Watt
Enclosure	Totally enclosed IP55
Power Source	Servo motor, stepper motor
Backlash	below 5arcmin
Hollow Lubrication Method	High viscosity anti-separation grease
Method of Coupling with Driven Machine	Coupling, gears, chain sprocket or belt
Standard	CE, UL, CSA, CCC, ISO 9001, ISO14001
Warranty	1 Year Limited Warranty
