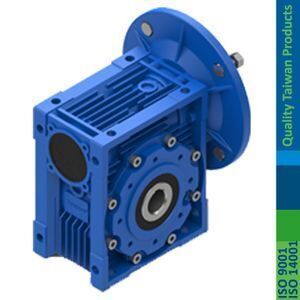

Varitron V11 Gear box Speed Reducer Motor NMRV worm reducers

Product details
Gearing Arrangement:Worm;Brand Name:VARITRON NMRV;
Port:Taiwan Taipei;Application:Mechanical Equipment;
Supply Ability:800 Set/Sets per Week Quantity Volume nmrv worm reducers can be manufactured;Worm Gear box Model:NMRV025,NMRV030,NMRV040,NMRV050,NMRV063,NMRV075;
Place of Origin:Taiwan, China;Worm Gear box Ratio:5,7.5,10,15,20,25,30,40,50,60,80,100;
Output Speed:14-280rpm;Packaging Detail:nmrv worm reducers packed in Crate or Wooden boxes to ensure Highest protection and minimum damage;
Worm Gear box Models:NMRV090,NMRV110,NMRV130;Output Torque:2.6-1195N.M;
Direction:Double Direction;Lubrication:Mineral oil included;
Certificate:ISO9001, ISO14001;Features:Anti-wear Worm Steel;
Heat Treatment:Carburizing;Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;
Input Speed:300-1800Rpm;Shape:Worm NMRV;

 << More Information is Available upon Request >>



     Quality Gear box by Varitron from TAIWAN

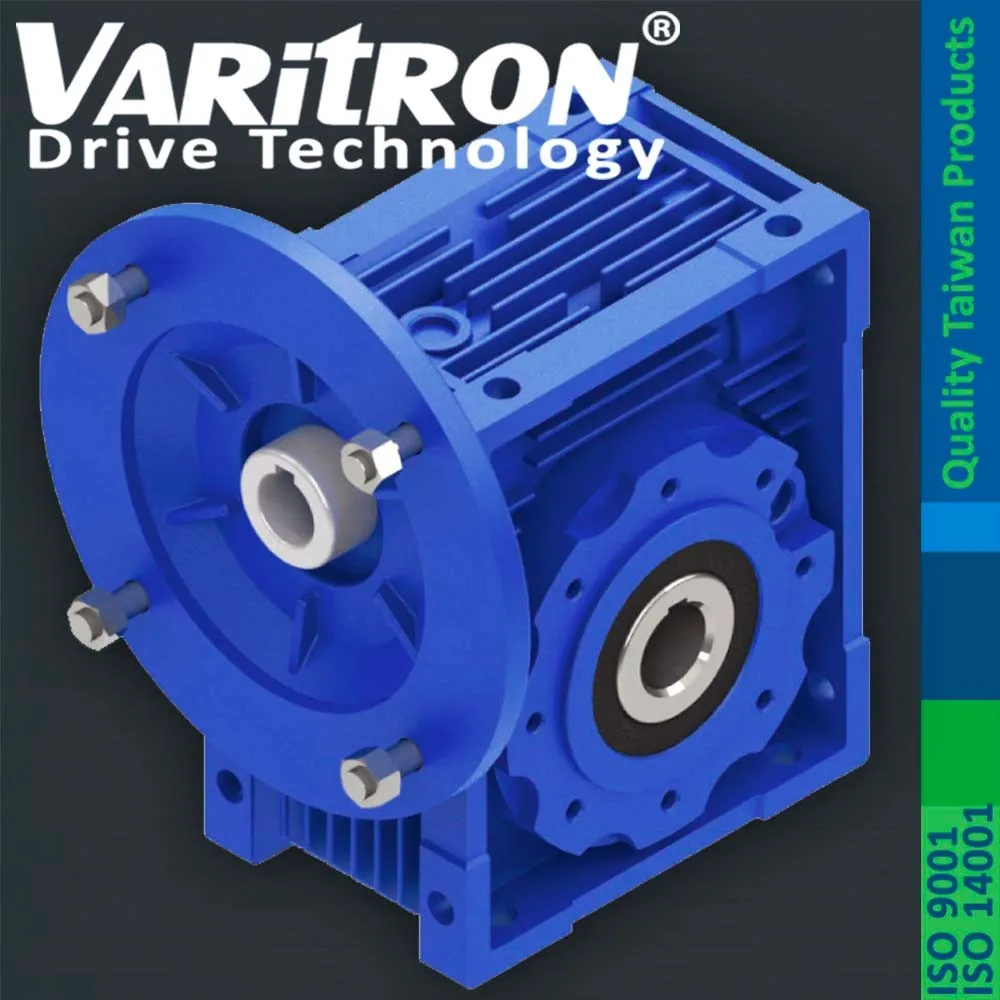

Varitron V11 Gear box Speed Reducer Motor nmrv worm reducers



Product Description





Varitron NMRV Worm gear reducers provide market advance solution with flexibility. NMRV worm gear series also available as compact and flexibility. NMRV worm gear series also available as compact integral helical/worm option, has been designed with a view to modularity: low number of basic models can be applied to a wide range of power ratings guaranteeing top performance and reduction ratios from 5 to 1000.



Main Features















Quick Facts





Model Number

Varitron V11 Gear box Speed Reducer Motor nmrv worm reducers

Worm Gear Reducers

Sizes

10 Size ( Single Stage)

Worm Gear Material

High quality Bronze Cu Sn12 Ni2 machined with precision tooth

Housing

Size : 025-090 Die-cast Allumium

SIze : 110-150 Grey Cast Iron

Lubrication

Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, needless to modify lubricant quantity

Ratio Range

1/5 to 1/100 (single stage)

up to 1/1000 (double stages)

Motor

HP

3 Phase / single Phase 4,6,8(Pole)

1/8 HP (0.1kW) to 15 HP (11kW)

Voltage

3 Phase : 208/415, 220/380, 220/440, 230/460, 240/480

Single Phase: 110/220V 115/230V

Frequency

50/60, 50 , 60 Hz

Enclose Type

Total Enclosed Fan Cooled, IP55

Starting

Full Voltage Direct On Line / Inverter Drive

Housing

Die-Cast Allumium or Grey Cast Iron

Insulation

F Grade Continuous S1 Duty

Brake

(Optional)

Function

Safety Brake

Voltage

DC90-110V with AC 220V

Environmental

Temperature

-10° to 40°C (14° - 104°F)

Humidity

Under 90% RH (Non-Condensation)

Place

Indoor, Below sea level 1000 m (3,300 ft)

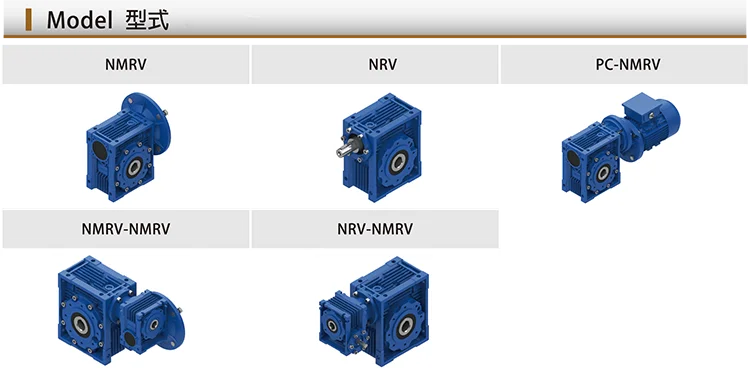

NMRV Model









NMRV Operation Direction







NMRV Model





<< More Detailed Information You May Needed >>



Applications



Agitators Mixers, Brewing and Distilling, Conveyors, Extruders, Food industry, Metal Mills, Hammer mills,
Paper Mills,Lumber Industry, Rubber & Plastics Industries, Sewage Disposal Equipment, Oil Industry,
Textile Industry, Sugar Industry, Dry Dock Cranes.. and many more









More Information





gear.fyi/nrv





Website: gear.fyi/nmrv







Packaging & Shipping

Gearbox will be delievery with crate or wooden box.



     Take Control In Speed







Company Information

We consistently focus our attention on the quality management system. With our continuously
improved quality function, customers’ satisfaction on our products and service is guaranteed.
All our employees take Total Quality Assurance as their common goal and set customers’
satisfaction as their highest priority.









Why Partner with Varitron?



We Consider Our Customers as Our Friends and Families, and We do Believe in the Win-Win Situation for Building up Long-Term Relationship.



 - Innovation

Provide durable, high efficiency stable products and services.


- Quality
Deliver consistently superior performance and pursue every possible improvement.


- Environment
Be a responsible citizen that makes a difference by helping build and support sustainable communities. Varitron's manfucature plant passed thorugh ISO14001


- Customer Satisfaction
Anticipate customer needs and exceed their expectations in affordability, quality and on-time delivery.



Our Services





What you should know about Varitron?









Products of Varitron



Cyclodical gearboxHelical gearboxPlaentary gearbox
Chain PIVWorm gearboxMotor
