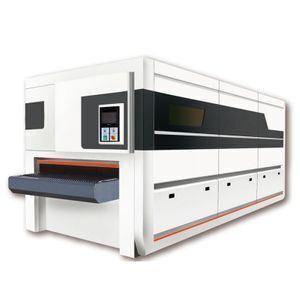

PLC Control System Automatic Wood Door Brush Sanding Machine

Supplier: Qingdao High-Class Service Import & Export Co., Ltd.
Region: Shandong, China
Contact: Ms Cindy Yu
Price: $44000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Dimension(LWH):	595021502275mm;
Supply Ability:	30 Set/Sets per Month;	Website:	www.hicasmach.com;
Name:	Brush Sanding Machine;	Total power:	24.2kw;
Feeding speed:	0-10m/min (Adjustable);	Payment Terms:	L/C,T/T;
Place of Origin:	Shandong China;	Packaging Detail:	PLC Control System Automatic Wood Door Brush Sanding Machine: Plywood crate packing;
Applicable Industries:	woodworking machinery;	Vacuuming mouth:	17*100mm;
Brand Name:	Hicas;	Weight:	6200kg;
Suction air:	17*635m3/h;	Machine weight:	6200kg;
Certification:	CE ISO;	Warranty:	1 Year;
Power(W):	24.2kw;	After-sales Service Provided:	Online support;
Voltage:	380v 50Hz;	Overall diamensions:	595021502275mm;
Port:	Qingdao;	Working thickness:	Max. 100mm;
Working width:	Max. 1300mm;

FK-G9-1300 Automatic Wood Door Brush Sanding Machine

Specification

Model	FK-G9-1300
Max working width	1300mm
Working thickness	100mm
Conveyor speed	0-10m/min(adjustable)
Vacumming mouth	17*100mm
Suction air	17*635m3/h
The weight	6200kg
Overall dimensions	595021502275mm
Total power	24.2kw

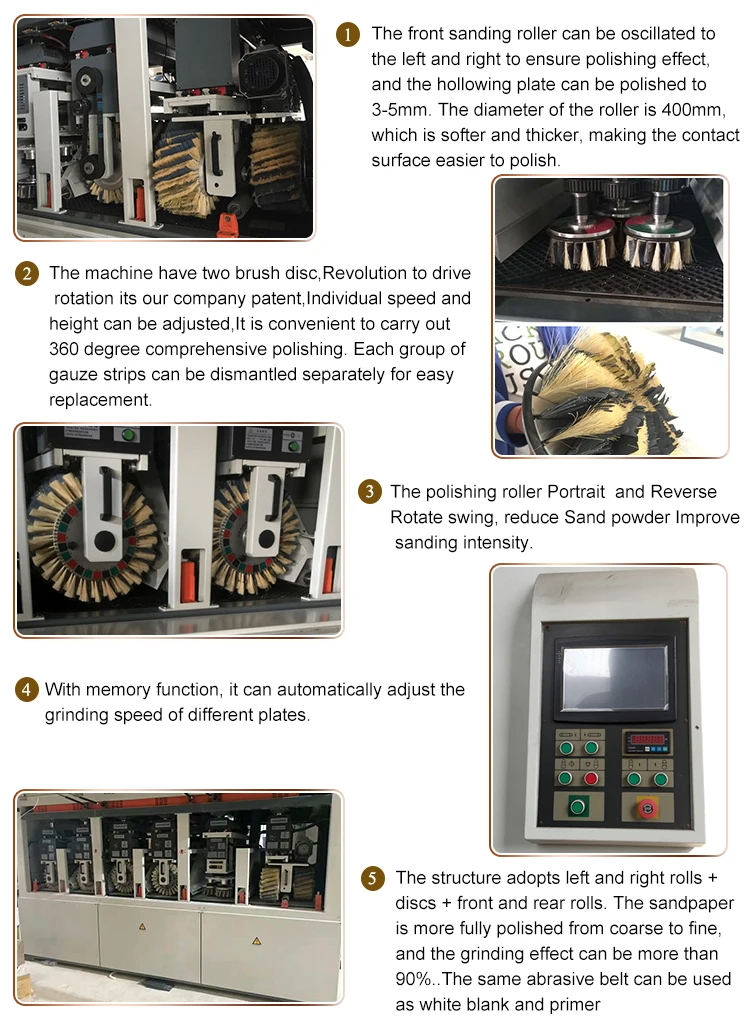

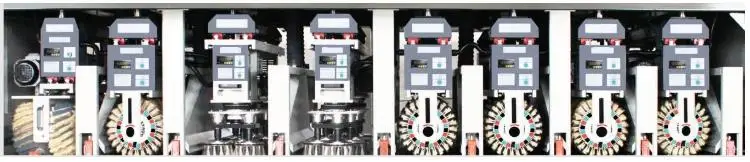

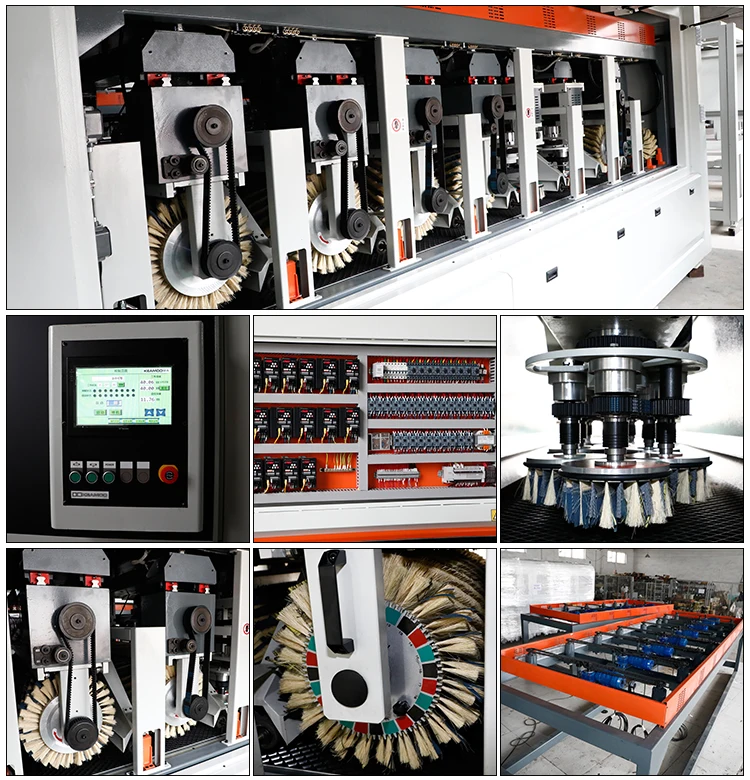

Details:

Advantages:

Final Product:

Machine service and warranty:

1. Installation and training, seller will send engineer (Chinese speaking, buyer please prepare translator) to service in site, all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between Qingdao China and buyer factory (two way), visa and insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD100/ day, need about 7-10 days.

2. Warranty, in 1 year since the machine finished installation (The machine should be installed in 3 months after buyer received). In warranty period seller will supply Free parts and online service exclude,

1) Easy wearing parts (consumption parts, small electric components, motor belts).

2) Damage by wrong operation.

Out of warranty period seller supply paid parts.

Lifelong responsibility.

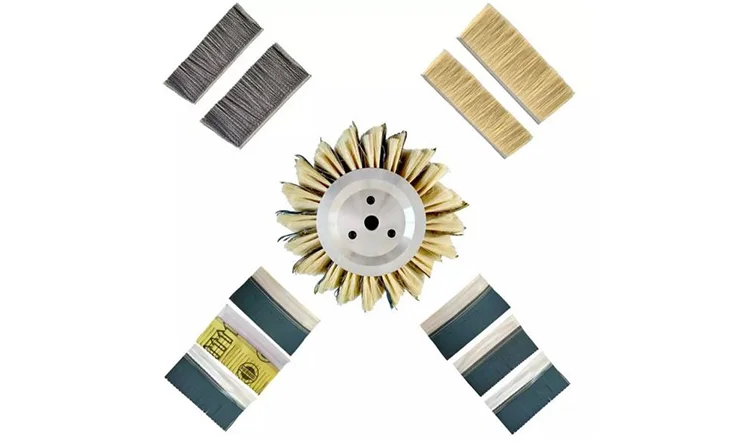

Consumption parts
