Full automatic Double liner cap inserting lining machine

Product details
Power:1.5KW;Condition:New;
Dimension(L*W*H):2250x1000x1500mm;Delivery Detail:25-45 Days;
Supply Ability:20 Set/Sets per Month Full automatic Double liner cap inserting lining machine;Application:Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical;
Model Number:SDU-3-B;Packaging Detail:wooden case for Full automatic Double liner cap inserting lining machine;
Esay to operate:Double liner cap inserting lining machine;Certification:CE,ISO;
Packaging Type:Cartons;High Speed:12000-15000pcs/hr;
Voltage:220/380V;Automatic Grade:Automatic;
Energy:Saving;Weight:420KGS;
Driven Type:Electric;OEM:YES;
Brand Name:U-TECH;Port:CHINA SHANGHAI/NINGBO;
Payment Terms:L/C,T/T;Packaging Material:Wood;
After-sales Service Provided:Engineers available to service machinery overseas;Type:Capping Machine;
Place of Origin:Jiangsu China;

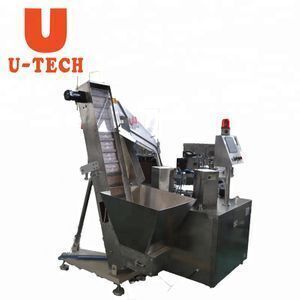

Full automatic Double liner cap inserting lining  machine

Description:

Automatic cap lining machine , which can cut the foil roll into liner and insert the liner into cap at the same time, with the speed up to 120 pieces/min, avoiding the manual pollution and improving the product efficiency as well.

It has ability to run different size cap. The machine’s operation is fully automatic, highlighted by Detal programmable logic controller(PLC), a touch screen operator interface terminal, missing foil cap director and alarm system.

this cap lining machine is helpful to the cap production, it will enduremany years of consitent production.



the main feature of equipment:

1. including one set host equipment, one set pulp liner Locate and inserting equipment,one set pulp roll sending machine ,one set wasted pulp roll colloecting machine, one cap elevator.

2. one set round cap liner model;
3. PLC system, touch screen operation system.
4. automatic cap arranger,automatic Rejection system for improperly caps , which upside down.

5. the turntable locating, cutting and inserting the pulp liner into cap more precisely.
6. the foil roll diameter for foil sending machine: inner diameter is 76mm, outside diameter is no less than 500mm.
7. the length of pulp roll can be adjustable. So it can make sure the inserting job more precisely.
8. high quality and performance. It can work 24 hours per day and no stopping.
9. with counting function and output pre-setting function
10. with the detect function for liner missing and reject the no liner cap (this function is base on the cap colour different from pulp liner colour)

11. system stop and alarm when caps are in short supply

12.safety running: automatically alarm and stop when breakdown occur
13. The work speed is 120 caps per min.

14. Electric Power source :220V,50-60HZ, Single power supply;(also, can be design according to customer requirement)

15. use UL PLC, touch screen, Switching Power Supplier, button.

Technique Parameter:

model

SR-CL-I

Speed

Max 120 caps/min

Electricity power

380V, 50HZ

power

2000W

Air compression

30L/min, ≥0.4Mp

host equipment size

1100mm*900mm*1400mm

Cap elevator and cap feeding device

1700mm*750mm*1200mm

Foil sending device

500mm*500mm*750mm

Waster soil sending device

500mm*500mm*650mm

conveyor

1200mm*100mm*200mm

Machine weight

1100Kg

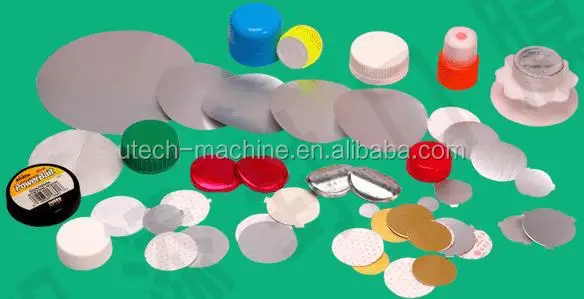

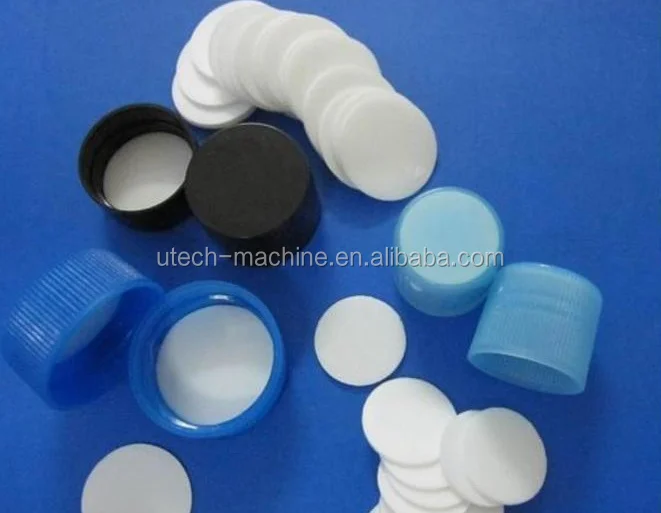

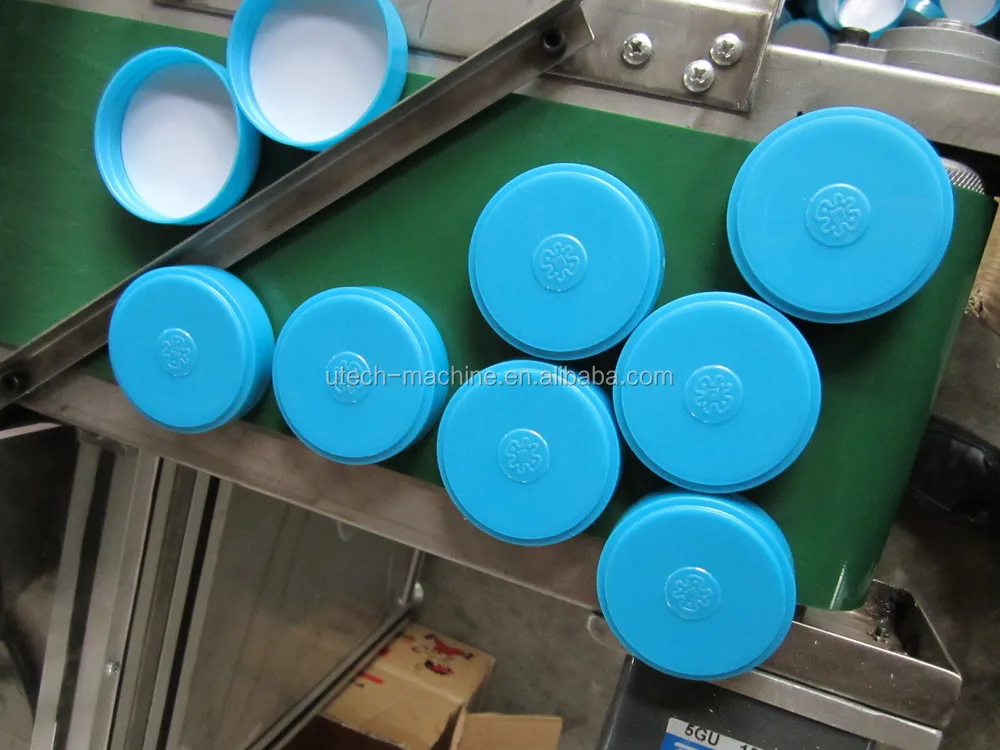

                                                                            Samples





Our Services

Full automatic Double liner cap inserting lining  machine

What service U Tech Machine Co.,Ltd can offer you ?

• Well-trained & experienced staff are to answer all your inquiries in English and Chinese

• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

• 2 Years guarantee

• Your business relationship with us will be confidential to any third party.

• Good after-sle service offered, please get back to us if you got any questions



FAQ

Full automatic Double liner cap inserting lining  machine

Q1:Are you a trading company or a manufactory?

A1:We are a manufactory,can give u best service .



Q2:What’s your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years



Q3:When can I get my machine after I paid?

A3:We will deliver the machines on time as the date we agreed both side.



Q4:How can I install my machine when it arrives?

A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.



Q5:How about the spare parts?

A5:After we deal down all the things , we will offer you a spare parts list for your reference.

    Any questions about our machine and company,please be free to contact with me at any time.Also,we welcome you to visit our factoy by yourself!!
