Drink water bottle plastic injection molding machine preform making machine

Supplier: Zhangjiagang U Tech Machine Co., Ltd.
Region: Jiangsu, China
Contact: Ms Eileen Shao
Price: $30000.00 / 1 - 19 sets
$25000.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Ejector Number:	5;	Theoretical Shot Volume(cm³):	707;
Payment Terms:	L/C,T/T;	Brand Name:	U TECH;
Port:	shanghai;	Weight (KG):	6800;
Video outgoing-inspection:	Provided;	Place of Origin:	Jiangsu China;
Distance between Tie Bars(Width)(mm):	505mm;	Machinery Test Report:	Provided;
After-sales Service Provided:	Engineers available to service machinery overseas,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Showroom Location:	None;
Plasticizing Capacity(g/s):	35.4;	Key Selling Points:	Easy to Operate;
Ejector Stroke(mm):	125;	Marketing Type:	New Product 2020;
Condition:	New;	Clamping Force (kN):	2000;
Supply Ability:	10 Set/Sets per Month Drink water bottle plastic injection molding machine/preform mak;	Power (kW):	35.1;
Name:	Drink water bottle plastic injection molding machine;	Plastic Type:	Thermoplastic;
Product name:	Plastic Products Injection Molding Machine;	Function:	Plstic Injection Molding Machinery;
Style:	Horizontal;	Certification:	CE ISO;
Injection pressure:	145-208 Mpa;	Screw L/D Ratio:	19.3;
Injection Rate (g/s):	208;	Ejector Force(kN):	53.1;
Warranty:	2 Years,2 years;	Screw Speed (rpm):	170 - 260 rpm;
Product:	PET preform;	Open Stroke(mm):	500;
Machine Type:	Electric;	Packaging Detail:	wood case;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory;	Local Service Location:	None;
Model Number:	BST-2000;	Type:	Injection Blow Molding;
Injection Weight (g):	643;	Warranty of core components:	2 years;
Mold Height(mm):	190 - 530 mm;	Distance between Tie Bars(Height)(mm):	505mm;
Core Components:	Bearing,Motor,Pump,Gear,PLC,Other,Pressure vessel,Engine,Gearbox,Screw;	Plastic Processed:	PP,PC,PE;
Automatic:	yes;	Distance between Tie Bars:	505x505mm;
Screw diameter (mm):	60;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;

Product Description

Specifications

♦Precision,

♦Fast, Energy Saving,

♦Stable and super long life.

♦Envoronmental and the nubbin part can be recycling

The introduction of injection moulding machine

Injection molding machine, also known as injection molding machine or injection machine. It is the main forming equipment for plastic products which are made of thermoplastic or thermosetting plastic by using plastic molding mould. Divided into vertical, horizontal, all electric. The plastic injection molding function heats the plastic, and exerts high pressure on the molten plastic, so that the injection molding cavity is filled with the mold cavity.

Machines are classified primarily by the type of driving systems they use: hydraulic, mechanical, electric, or hybrid.

Injection molding machine is usually composed of injection system, mold clamping system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, and so on.

Main machine

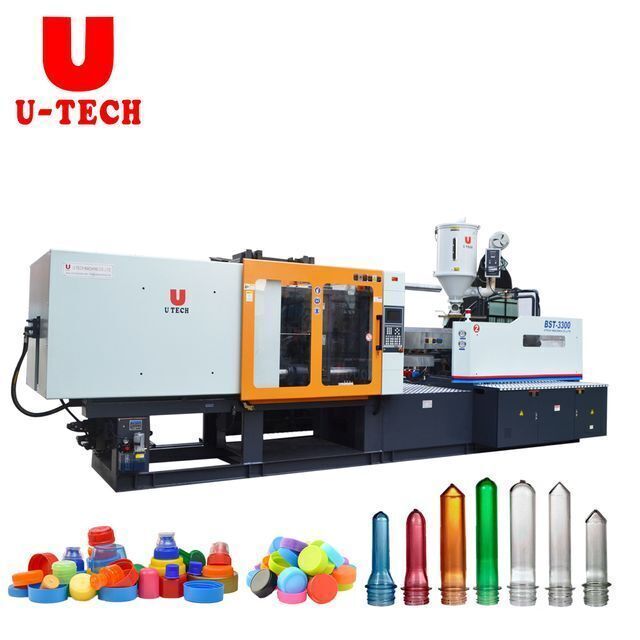

The whole machine

(You can use this machine produce different plastic products according different shape of mould)

♦Characteristics of servo energy-saving injection molding machine:

Equipped with high performance servo motor controlling system,the machine's output power canvary

in accordance with the loading changes,which reduce energy consumption and noise.The motor rotates

at lower speed in holding pressure stage,and doesn't work in cooling time

♦The performance of sevo energy-saving molding machine:

Servo motor can optimize the match of energy demand and realize automatic adjustments
It can improve injection precision
It can greatly save power and water,resulting in environment-protection and energy-saving
Quick response and low noise

Pictures

Technical parameter

Specification	Clamping force	Max. Plasticising weight(PS)g	Space between tie bars (mm×mm)
UT-700	70	101	320×320
UT-950A	95	183	360×360
UT-1300A	130	260	420×420
UT-1600A	160	486	480×480
UT-2000A	200	643	505×505
UT-2400A	240	845	555×555
UT-3000A	300	1050	600×600
UT-3800A	380	1286	680×680
UT-4800A	480	1600	760×760
UT-5500A	550	2466	810×810
UT-6500A	650	2895	850×850
UT-7500A	750	3543	950×950
UT-10000A	1000	6280	1110×1110
